Portable VNA SWR 6GHZ Vector Network Analyzer Reflectometer GS-320 23-6200MHz NanoVNA type, Touch screen NANOVNA V2

We havemore detailed electronic manuals, PC software, if you need, please leave your information, e-mail address, we will send the product manual to you

GS-320 portable vector network analyzer VNA

is particularly suitable for the matching and debugging of radio frequency circuits of Bluetooth, wifi, 2.4G, 5.8G, GPS, Beidou, IoT devices in various frequency bands, and security products in various frequency bands!

GS-320 Hand held vector network analyzer VNA (reflectometer) 23-6200 MHz is designed to measure the matching characteristics of passive and active radio devices (antennas, cables, filters, attenuators, amplifiers, etc.).

The device allows you to measure the parameters of the complex reflection coefficient, standing wave ratio (VSWR), impedance, admittance, magnitude, phase, loss and distance to fault in the cable.

You can ask the dealer for the manual

Performance introduction

GS-320 is made in a durable aluminum casing in the form of mobile autonomous instrument and is primarily intended to work directly on the object, as with low weight and compact dimensions has a low energy consumption. The analyzer will be especially useful to companies working in the field of telecommunications, engaged in the installation and maintenance of antennas, in the amplification of cellular communication, etc. With it, service centers and repair crews can carry out RF analysis cable and antenna when carrying out commissioning or repair work. In addition, the device is ideal for workshops, radio amateurs, educational institutions and laboratories.

The device has a 3.2" color resistive screen to display the measurement results and control the device.

For example, you can use the instrument to do the following:

- To perform impedance matching using the Smith chart

- To measure the standing wave ratio

- To measure the attenuation in the cable

- To measure the distance to fault or irregularity in the cable

Advantages of vector network analyzer GS-320 23-6200 MHz:

- color touch screen with a diagonal of 3.2 inches allows for quick configuration of the scan parameters and display of measurement results

- wide operating frequency range: 23 MHz to 6200 MHz

- high scan rate of 1000 points/s

- high precision of measurement: 0.25 dB and 1.5°over the entire frequency range

- the ability to display up to four independent markers on all charts, allowing an accurate assessment of the measured parameter

- display almost all possible interpretations of the reflection coefficient

- the ability to measure the distance to fault and loss in the cable

- supportsoftware of PC,can be controlled through PC interface（The software of PC can be obtained from dealers）
- small weight and dimensions: 480 grams with "pocket" dimensions 145×75×24mm

- built-in battery provides up to 4 hours of battery life

- ability to power the device from a tablet or smartphone via Typc-USB  cable: not in time discharged battery will not stop the workflow

SPECIFICATIONS 23-6200 MHz:

- Operating frequency range:23-6200 MHz

- The frequency resolution:10 kHz

- Maximum number of scan points:1000

- Scanning rate:1000 points/s

- The direction of the bridge, uncorrected throughout the range:>12 dB

- Directivity effective (after full single-port calibration):>50 dB

- The standing wave ratio at the input:<2

- Phase measurement precision1:>1.50

- Magnitude measurement precision1:>0.25 dB

- Resolution determining the distance to fault2:(C x VF)/2S m

- The maximum length of the measured cable3, with VF =1:3000 m

- Maximum DC input voltage:25 V

- Displayed graphs:the Smith chart; polar chart; the phase of the reflection coefficient; magnitude; logarithmic magnitude; VSWR, distance-to-fault; cable loss

- Operating temperature range:0...+40℃

- Screen diagonal:3,2"

- Screen type:touch resistive

- Screen resolution:320х240

- Battery capacity:4000 mAh

- Continuous battery life4: ~4 h

- Battery charge time:~6 h

- Overall dimensions (L×W×h):145×75×24

-Package dimensions (L×W×h):240×130×35

- Mass:0.48kg

1.The measurement is performed after warming up the device for at least five minutes with a full (short, open, load) single-port calibration. The change in ambient temperature from the time of calibration to the time of measurement shall not exceed±3°C.

2.Where C is the speed of light m/s; VF is the speed factor (the ratio of the speed of propagation of the electromagnetic wave in the cable to the speed of propagation of the electromagnetic wave in vacuum), takes a value depending on the cable from 0.1 to 1; S is the scanning frequency range in the frequency task (Hz).

3.Depends on the amount of attenuation in the cable and is the limit of the display.

4.At ambient temperature plus 20±5°C after full charge.

The device has a factory calibration, the device connector is taken as the reference plane. If you plan to carry out measurements using cable assemblies, adapters, etc., then you will need to recalibrate. To do this, use the 50 Ohm calibration kit SOL (S- Short Standart - O -Open Standart  L - Matched Load). SOL calibration kits are most often found in the N-type and SMA-type form factors. Choose the form factor corresponding to the type of connector, on the reference plane of which calibration is planned.

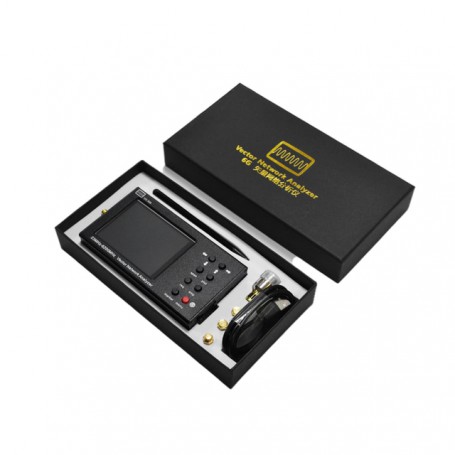

Equipment:GS-320vector network analyzer VNA

- GS-320 Vector Reflectometer 23-6200 MHz*1

- Typc-USB connection cable*1

- SOL Calibrator*1

- N/SMA-KJ*1

- Touch pen*1

- Package*1

Equipment:GS-320VNA + RF DEMO KIT

- GS-320 Vector Reflectometer 23-6200 MHz*1

- Typc-USB connection cable*1

- SOL Calibrator*1

- N/SMA-KJ*1

- Touch pen*1

- Package*1

- PCB RF Tester Board*1

- 20cm Adapter Cables*2

Additional Information:

- The device has a manufacturer’s warranty for 1 year from the date of purchase.

- The device is not a professional measuring instrument and is intended for amateur radio applications.

- If necessary, we can disassemble the device so that it passes customs more easily. Only a screwdriver is needed for assembly.
