Main Feature
【Power Almost Anything】- 1400W AC output & ports mean you can power appliances from laptops to dishwashers & fridges. Great as an outdoor generator or for backup power. Use X-Boost and you can even power 1800W devices.
【X-Stream Charging + Solar】 - Fast charging power generator that hits 80% in under 1hr. Or, use it as a solar generator for clean solar charging and get up to 300W input with MPPT optimization.
【Pint-Sized Power】- DELTA mini is a battery power station packing 882Wh into a light 23.6lbs design. Take power to any outdoor environment, go camping or travel & keep powered.
【Safety First】- A portable power station with rugged design and BMS protection to keep you safe. Monitor voltage, current, short circuit and temp in real time.

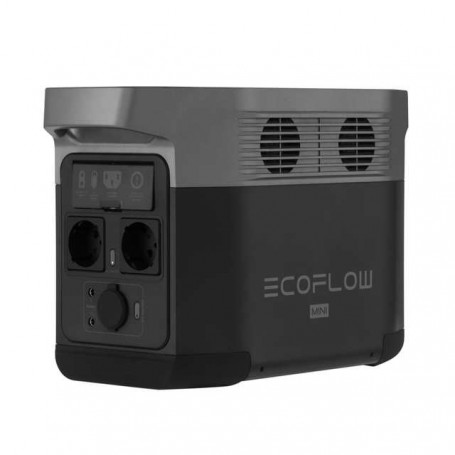

EcoFlow DELTA mini
822Wh Protable Power Station
Recharge 0-80% in One Hour
X-STRAM Fast Charge
Rapid 0-80% in under 1 hour
X-BOOST Power Most Appliances
X-BOOST to Power 1800W Devices
Use APP to Monitor
Contorl & More
Charge While You Recharge
For Any Emergency Backup
Thress Easy Ways to Charge
Solar charging/Car charging/Wall outlet
Pint-Sized Powerhouse 882Wh of power on-the-go
capacity 882Wh / weight 23.6 lbs
dimension 14.9*7.2*9.4 in
What’s in the box
1. EcoFlow DELTA mini
2. DC 5521 to DC 5525 cable
3. Solar to XT60 Charging Cable
4. AC charging cable
5. Car charging cable
6. User manual
SPECS |
|
Product Name |
DELTA mini Protable Power Station |
Net Weight |
23.6 lb (10.7 kg) |
Dimensions |
14.9 × 7.2 × 9.4 in (37.8×18.4 × 24 cm) |
Charge Method |
AC Wall Outlet, 12V Car Outlet, Solar Panel |
Full Recharge Time |
1.6 Hours (AC) 9½ Hours (12/24V Car Outlet) 3¾–7½ Hours (Using 2x 160W Solar Panels) 3–6hours (Using1x 400W Solar Panel) |
Capacity |
882Wh |
Cell Chemistry |
NCM Li-ion |
Cycle Life |
800 cycles to 80% capacity |
Battery Management System |
Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection,Low Temperature Protection, Low Voltage Protection,Overcurrent Protection |
AC Charge Input Power |
X-Stream Fast Charge 900W max |
Solar Charge Input |
300W 11–75V DC 10A max |
AC Output |
Pure Sine Wave,US version 5 outlets 1400W total |
USB-A Output (×2) |
5VDC, 2.4A, 12W Max, per port |
USB-A Fast Charge (×1) |
5V,2.4A / 9V, 2A / 12V, 1.5A, 18W Max |
USB-C Output |
5/9/12/15/20V,5A, 100W Max |
Car Power Output |
12.6V, 10A, 126W Max |
FAQ
Q1: What devices can DELTA mini power?
A: The 5 pure sine wave AC output socket on DELTA mini can power any tools and devices less than 1400W, surge 2100W, 100-120V(50Hz/60Hz).
Q2: Why the fan is too loud?
A: Please confirm whether it is just fully charged, if the device has just been fully charged, the temperature is too high, the fan speed is high, and the sound may be loud.
Q3: How to choose the solar panel and what is the charge time?
Equipped with EcoFlow MPPT controller, DELTA mini is compatible with any solar panel as long as they have the same EcoFlow solar connector.
Solar charging input 300W, 11-75V, DC 10A (maximum)
Charging time: 3.3-6.6hours (110W x 3) 3.7-7.4 Hours (160W x 2)
Q4: Why does the battery lose power when not in use?
A: The unit may be in standby mode where the power supply, screen, and/or inverter could be using up to 50W. Remember to long press the power button to turn the unit completely off. If the unit loses power when completely off, try recharging it to 100% and use it to 0% two or three times to calibrate the battery. If the problem persists, please contact customer support.
- Brand Name
- ECOFLOW
- Origin
- Mainland China
- Model Number
- DELTA mini
- Type
- Li-Ion
- Certification
- CE,FCC,RoHS,UL
- Set Type
- Batteries Only
- Capacity
- 882Wh
- Net Weight
- 23.6lbs (10.7kg)
- Dimensions
- 14.9*7.2*9.4in (37.8*18.4*24 cm)
- Display Screen
- Yes
- Nominal Capacity
- 3500mAh
- Rated Capacity
- 245,000mAh (3.6V)
- Car Power Output
- 12.6V, 10A, 126W Max
- Cycle life
- 800 cycles to 80% capacity
- Replacement Battery
- No
- Charge Method
- AC Wall Outlet, 12V Car Outlet, Solar Panel
- Full Recharge Time
- 1.6 Hours(AC),9.5 Hours (12/24V Car Outlet),3.5-7.5 Hours (Using 2* 160W Solar Panels) 3-6 hours (Using 1* 400W Solar Panel)
- Cell Chemistry
- NCM Li-ion
- Battery Management System
- Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection
- AC Charge Input Power
- X-Stream Fast Charge 900W max
- Solar Charge Input
- 300W 11-75V DC 10A max
- Car Charger
- 12V/24V DC 8A default
- US Plug AC Output(*5)
- Pure Sine Wave, 1400W total (surge 2100W), 120V~ (50Hz/60Hz)
- EU Plug AC Output(*2)
- Pure Sine Wave,1400W total (Surge 2100W)
- USB-A Output (*2)
- 5V DC, 2.4A, 12W Max, per port
- USB-A Fast Charge(*1)
- 5V, 2.4A / 9V, 2A / 12V, 1.5A, 18W Max
- USB-C Output(*1)
- 5/9/12/15/20V, 5A, 100W Max
