48MP 4K 1080P HDMI USB Industrial Video Digital Microscope Camera 130X Zoom C Mount Lens Cantilever stand For Repair Soldering

Specification:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

1X-130X C-MOUNT Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

Working distance:100mm

Specification:

High Quality, High Resolution, Clear Images

Picture Pixel:48M

Sensor: SONO 2.33 inch 48MP

Image resolution: 1920×1080 (for HDMI), 1920×1080 (for USB)

Video resolution: 4K(4:3) 2880×2160 @25 FPS

1920×1080@60F/S Video Camera

Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.

TF Card: Video Recorder

Grid line:8 horizontal lines, 8 vertical lines

Video Frame Rate:60FPS@1920x1080 24FPS@2K 60FPS@720P

25FPS@4K

Model: Camera with HDMI USB two output

TF card:4GB (Up to 32GB max）

Cross line:Overlap or Cancel

CMOS pixel:1.33um x 1.33um

Lens jack:C-mount

Color setting:Auto

Power:12V/1A

White balance:Auto/one button calibration/Manual

Size:64x64x35mm

EV:Auto/Manual

Weight:180g

Language:Chinese, English

Camera mode:HDMI output 1080P @60 FPS

Working temperature:0-70℃

It is recommended that the working distance exceeds 40cm, and a work desk lamp should be used to fill in the light.

Note: The SKU image shall prevail

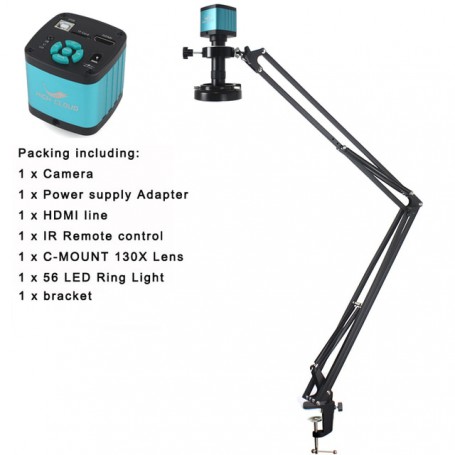

A: Package incluede

1 x Microscope Camera (4K 16:9)

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines

1 x Stand

1 x 130X lens

1 x 56 led ring light

B: Package incluede:

1 x Microscope Camera (4K 16:9)

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines

1 x 130X lens

1 x 56 led ring light

C: Package incluede

1 x Stand

D: Package incluede

1 x Microscope Camera (4K 16:9)

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines

E: Package incluede

1 x 130X lens

F: Package incluede

1 x Microscope Camera(4K 4:3)

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines

1 x Stand

1 x 130X lens

1 x 56 led ring light

G: Package incluede:

1 x Microscope Camera(4K 4:3)

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines

1 x 130X lens

1 x 56 led ring light

H: Package incluede

1 x Microscope Camera(4K 4:3)

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines
