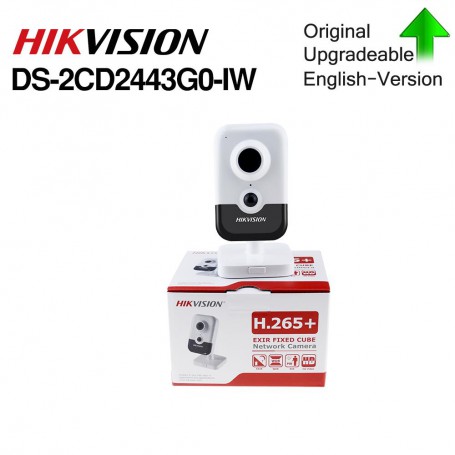

Hikvision Original DS-2CD2443G0-IW Wi-Fi Camera Video Surveillance 4MP IR 10M Fixed Cube Wireless IP Camera Two-way Audio H.265+

1.CameraDS-2CD2443G0-IW

Image Sensor:

1/3" Progressive Scan CMOS

Signal System:

PAL/NTSC

Min. Illumination:

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR

Shutter time:

1/3 s to 1/100,000 s

Slow shutter:

Support

Lens:

2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°

4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°

Lens Mount:

M12

Adjustment Range:

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Day& Night:

IR Cut Filter

Wide Dynamic Range:

120 dB

Digital noise reduction:

3D DNR

Focus:

Fixed

2.Compression Standard

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG

H.264 code profile:

Main Profile/High Profile

Video bit rate:

256Kbps~16Mbps

Audio Compression:

G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate:

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Triple Streams:

Yes

3.Image

Max. Image Resolution:

2688 × 1520

Frame Rate:

50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

Sub Stream:

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:

BLC/3D DNR/ROI/HLC

Image Settings:

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

ROI:

Support 1 fixed region for main stream and sub-stream separately

Day/Night Switch:

Day/Night/Auto/Schedule/Triggered by alarm in

4.Network

Network Storage:

microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger:

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6

General Function:

One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering

System Compatibility:

(Profile S, Profile G), ISAPI

5.Interface

Audio:

1 built-in mic, 1 built-in speaker, mono sound

Communication Interface:

1 RJ45 10M / 100M Ethernet interface

On-board storage:

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:

Yes

6.Audio

Environment Noise Filtering:

Support

Audio Sampling Rate:

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

7.Smart Feature-set

Behavior Analysis:

Line crossing detection, intrusion detection

Line Crossing Detection:

Cross a pre-defined virtual line

Intrusion Detection:

Enter and loiter in a pre-defined virtual region

Recognition:

Face Detection

8.Wi-Fi Specification

Wireless Standards:

IEEE802.11b, 802.11g, 802.11n

Frequency Range:

2.412 GHz to 2.4835 GHz

Channel Bandwidth:

20/40MHz Support

Security:

WPA, WPA2

Transmission Rate:

11b: 11Mbps

11g: 54Mbps

11n: up to 150Mbps

Wireless Range:

50m(depend on environment)

Protocols:

802.11b: DQPSK, DBPSK, CCK

802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK

9.General

Operating Conditions:

-10 °C - 40°C (14 °F - 104 °F), Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption:

12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power

PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W

IR Range:

Up to 10m

PIR:

10m

Dimensions:

102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")

Weight:

Camera: Approx. 128 g (0.3 lb.)
