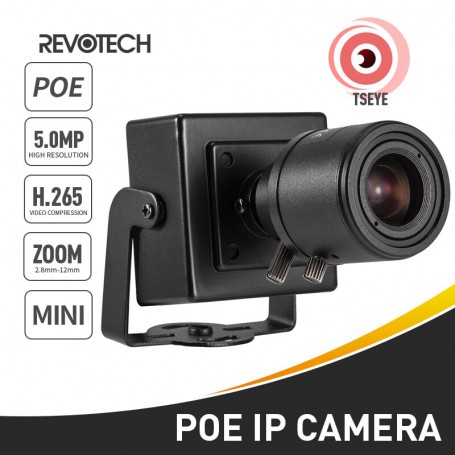

POE H.265 5MP 1620P / 1080P 6-22mm IP Camera Mini Type Manual Zoom Len Indoor Security P2P CCTV System Video Surveillance HD Cam



POEH.265 5MP 1620P / 1080P 6-22mm IP Camera Mini Type Manual Zoom Len Indoor Security P2P CCTV System Video Surveillance HD Cam

- High Resolution 5.0 Megapixel 1/3'' CMOS Sensor
- 5MP 2880*1620P resolution
- Support H.265 encode, compare with H.264, transit same quality image only need half of the bandwidth; Record same quality image only need half of the storage;
- Also support H.264 encode, so it can be compatible with both H.264 and H.265 device.

- Support iPhone, Android smart phone

- HD 5.0MP 6-22mm Zoom Lens

- P2P Cloud Function

- Support Motion Detection, Email Alarm function

- Support web interface of IE8.0 and above (device embedded Web Server), Edge, Chrome, Firefox, Safari browser.

- Net Weight: 0.23KG

- Metal Material Shell

- Simple Operation and Easy to Use





Note:

1. This camera default 5MP & H.265, if your NVR do not support 5MP or H.265, you can change our camera into 1080P (2MP) and H.264.

2."POE 48V" Option mean the camera support POE, can power from POE, need to connect with a 802.3AF Standard 48V POE Switch (It have auxiliary power supply connector, can be used like a Non-POE IP camera).

3."DC 12V" Option mean the camera is regular version, do not support POE and it can only with with a 12V regular power.

Camera





Model: I712-2-TS

Resolution:2880 x 1620P 5.0 Mega Pixels camera

Sensor: FH8852V200 + SC401AI

Min illumination: 0.1Lux @(F1.2,AGC ON)

Frame rate: 20fps

Shutter: 1/25 seconds -1/100,000 seconds

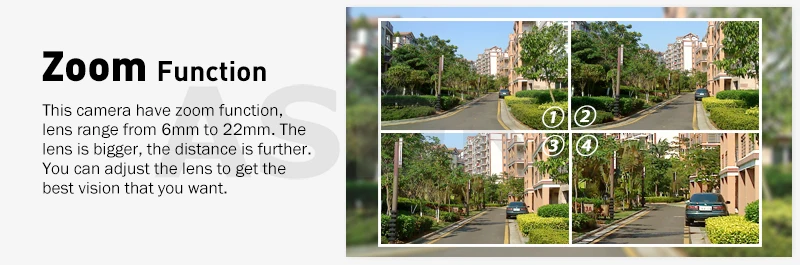

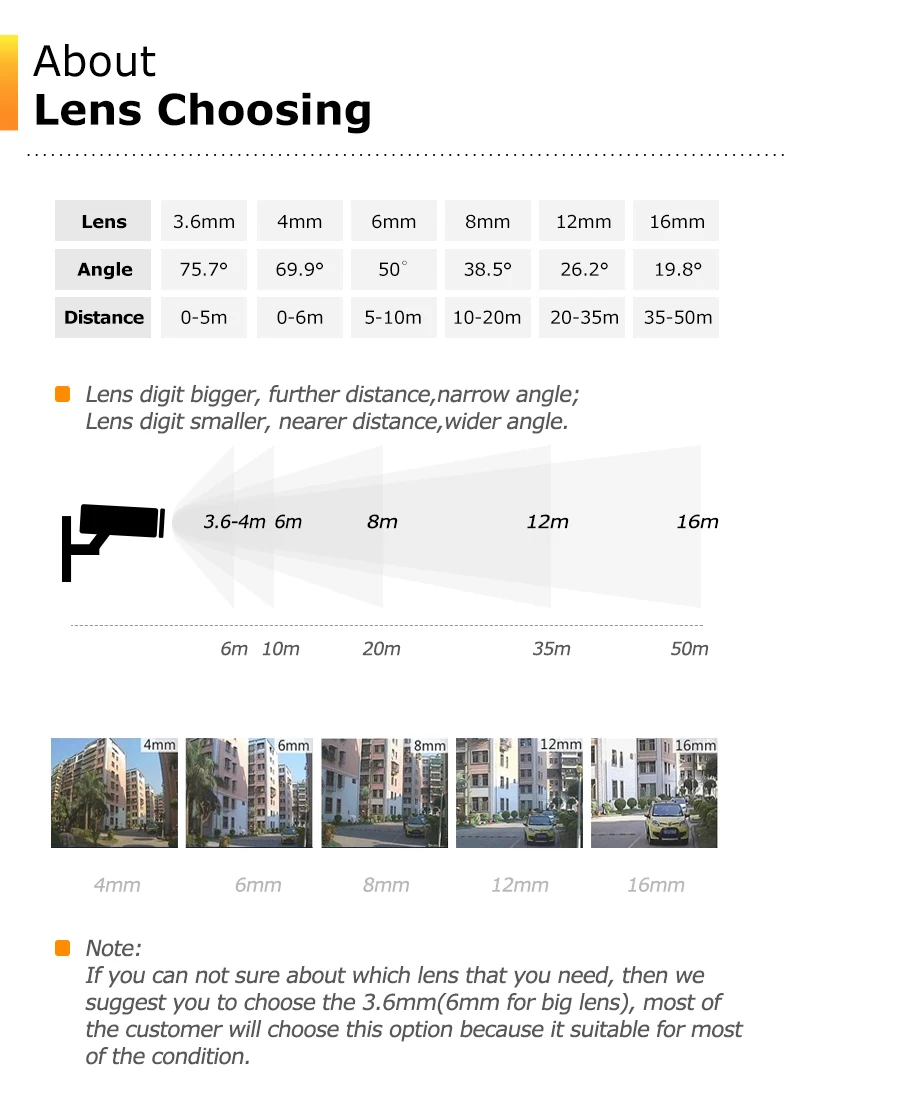

Lens: 5MP 6-22mm Zoom

Lens interface type: M12

Compression Format: H.264 / H.265

Compression rate output: 128 Kbps~8Mbps

Storage: NVR or Computer

IP address: Static (Default 192.168.1.108) / Dynamic

Smart alarm: Motion detection, Email alarm

Support protocol: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP

Input protocol: The standard ONVIF

Onvif Port: 8088

General function: A key recovery, dual stream, password protection, video hiding

Ethernet: 10M / 100M mbps Ethernet (RJ-45)

General





Operating Temperature: -25°C~60°C

Operating Humidity: 10%~90%

Power Supply:

POE 48V option support POE 48V(802.3af) & DC12V/2A

DC 12V option support DC12V/2A

Housing Material: Metal

Dimension:5.6 x 4.6 x 6.3cm

Weight: 0.23kg

Package Content





1 x Camera

1 x User Manaul

1 x Screws Set

Daytime + Indoor

Night with light + Indoor

Browser View:

Software View

App View

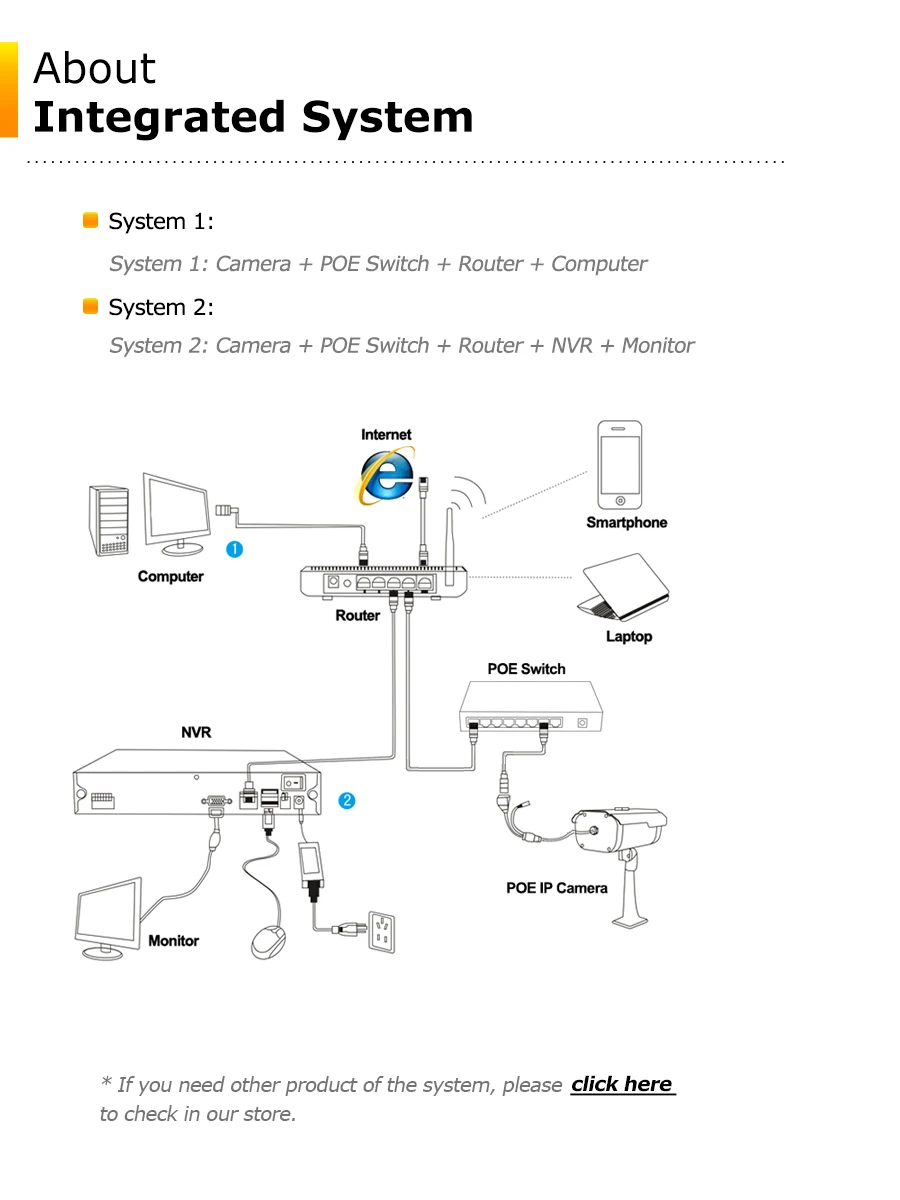

NOTE:System 1 also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.
