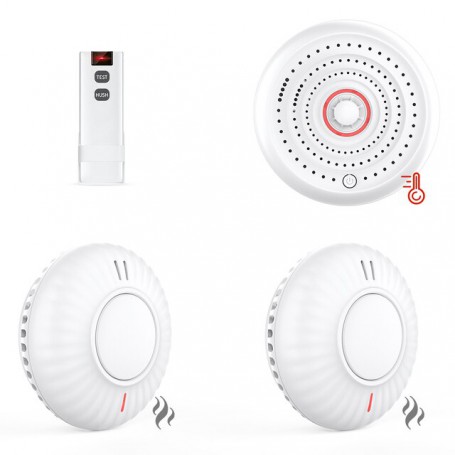

CPVAN Interconnect Smoke Detector and Heat Alarm with Remote 10 Years Life Wireless Interlink Fire Sensor System EN 14604
zoom_out_map
chevron_left chevron_right

CPVAN Interconnect Smoke Detector and Heat Alarm with Remote 10 Years Life Wireless Interlink Fire Sensor System EN 14604

CPVAN Interconnect Smoke Detector and Heat Alarm with Remote 10 Years Life Wireless Interlink Fire Sensor System EN 14604

  • Kit A
  • Kit B
  • Kit C
  • KIT D
  • KIT E
  • Heat Alarm
  • Smoke Alarm
  • KITF
  • Remote
EUR€ 29.95 (tax incl.) EUR€ 29.95 (tax excl.)
Tax included
check In-stock

CPVAN Interconnect Smoke Detector and Heat Alarm with Remote 10 Years Life Wireless Interlink Fire Sensor System EN 14604









Heat Alarm with Wireless Interlink
This HD11 heat alarm interlinked with SM11R smoke alarm unit which both with 10 year sealed lithium battery incorprates the following feathers:Sealed in high performace battery service life of 10 years.Alarm Silence feature allows unwanted alarms to be silenced resets automatically.It's ideal most suitable for kitchens,boiler rooms,workshops and garages where dirt and dust contaminate smoke alarms causing nuisance alarms.Once the alarm detects fire it signals to all connected alarms to raise alarms across the entire building.Loud 85 decibel horn.Class A1.Kitemark to BS5446-2 2003.CE Mark
Operation Guide

1.Long press the button 10 seconds until hear one "beep"
2.Test --Press one time
3.Paring--Choose one alarm and press 4 times rapidly,then press others 2 times rapidly.
4.Unbind--Press rapidly the alarm you want 2 times.
Refer to the manual for details.

LED Indicators

1.Normal status: Red LED Flashes once every 60 seconds.

2.Test status: Red LED flashes once every second.

3.Hush/Silence mode: Red LED flashes once every 8 seconds.

4.Low Battery status: Red LED flashes once every 60 seconds and 1 beep every 60 seconds.

5.Fault status: the alarm will deliver beeps every 40 seconds.



Silence Mode

During the unit is alarming, you can push the test button, it will be paused the unit alarming for approx 10 minutes. The red LED will flash once every 8 seconds, it indicates the smoke alarm device is running into the silence mode.The silence feature is to be used only when a known alarm condition, such as smoke from cooking activates the alarm.The smoke alarm device will automatically reset after approximately 10 minutes, if after this period, particles of combustion are still present, the alarm will sound again.



Specifications:

Power: DC 2*1.5V AA

Alkaline or Carbon Zinc battery

Battery Package: Alkaline (LR6,MN1500) or Carbon Zinc battery (R6P)

Operation Current: <15uA (standby); <70mA (alarm)

Alarm Volume: >85 dB(A) at 3 meters

Alarm Sensitivity: 0.09 - 0.17 dB/m

Low Battery: 2.6 ± 0.1 V

Silence Time: approx. 10 minutes

Comply to Standard EN14604:2005/AC:2008

Trouble Shooting




Problem

Method of disposal

The alarm does not sound when testing

Please check whether the batteries be well assembled according tothe Guide required

Red LED flashes and the alarm delivers one beep every 60 seconds

The battery is low. Please replace the batteries as soon as possible.

The alarm delivers one beep every 40 seconds

1.clean the alarm. Please refer to the "maintenance and cleaning" section.

2.the alarm is malfunctioning. Contact the retailer to replace it.

Nuisance alarms triggered intermittently or when residents are cooking, taking showers, etc.

1.press silence button.

2.clean the alarm. Please refer to the "maintenance and cleaning" section.

3.move the alarm to new location.

The alarm does not triggered when other alarm be triggered

1.check the device if be interlinked.

2. check the distance between the interlinked alarms out of max allowed distance




Smoke Detector E
Brand Name
CPVan
Origin
Mainland China
Model Number
AJ760+AJ718+RC
Type
Smoke Detector
Certification
CE
Battery
10 year sealed lithium battery
Smart home platform
NONE
Frequency
433 MHZ Interconnected
Voice Volumn
85DB
Alarm Sensitivity
0.09-0.17 dB/m
Heat Sensitivity
54-70℃
Interlinked devices
Max 30pcs per group
Comply to Standard
EN 146042005/AC2008&BS5446-22003
Alarms Suitable for Scottish Regulations
Radio-Interlinked
smoke detector
smoke alarm
security protection
smart home
fire
interlinked smoke and heat alarms
fire alarm
smoke detector camera
linked smoke and heat detector
fire alarm detector
