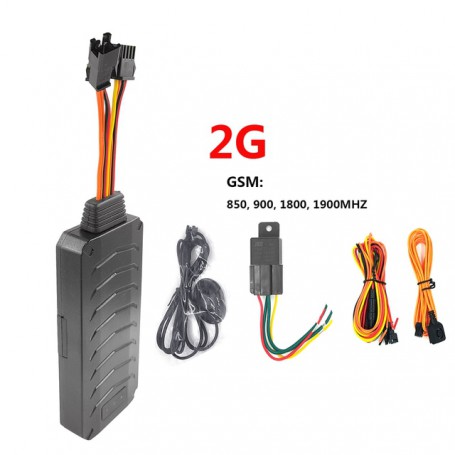

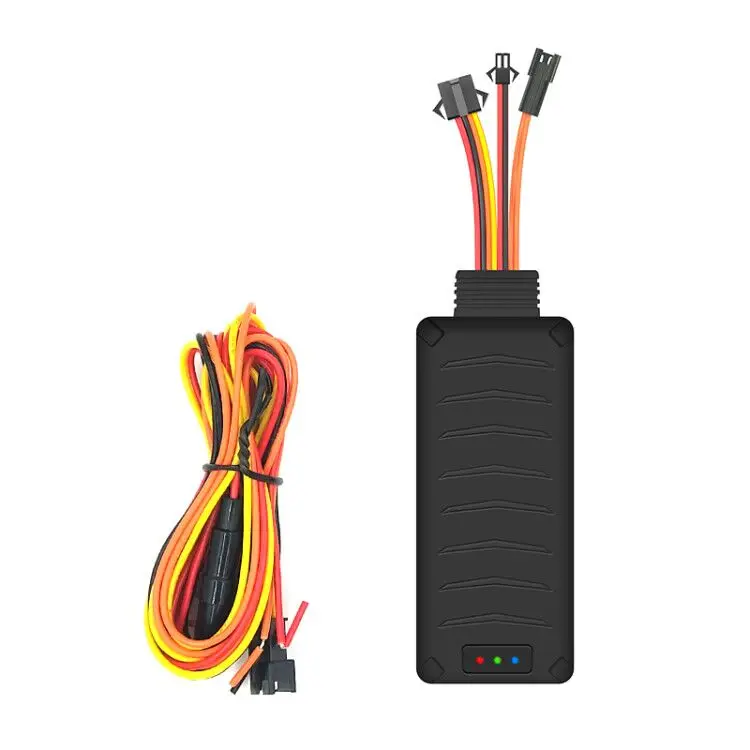

GSM GPS Signal Upgrade Car 2G 3G 4G GPS Tracker SOS Voice Cut Off Oil Towed Away Move ACC Status Alarm GPS Locator Free APP
GSM GPS Signal Upgrade Car 2G 3G 4G GPS Tracker SOS Voice Cut Off Oil Towed Away Move ACC Status Alarm GPS Locator Free APP
3G band selection：
UMTS/HSPA (850/800, 900, 1900 and 2100 MHz),
GSM:850, 900, 1800, 1900MHZ
4G band selection:
FDD-LTE-BAND:1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41
GSM:850/900/1800/1900
Specification
Antenna : GPS Antenna Internal
GPS Positioning Accuracy :5m-15m (Depending on GPS Signal)
LBS Positioning Accuracy : ~200m (Depending on density of base stations)
GPS Frequency :L1, 1575.42MHz C/A code
Network : WCDMA,GSM, SMS
GSM Frequency :850/900/1800/1900MHz
GPRS :Class 12, TCP/IP
LED Indicator :GPS-Blue; GSM-Green
Hot/Warm/Cold Start :<3x, <15s, <60s
GPS sensitivity: -161dBm
GPS position accuracy: 5m (in 3D positioning mode)
Built-in Battery:Embedded 3.7V/150mAh battery for emergency alarm when removing main power

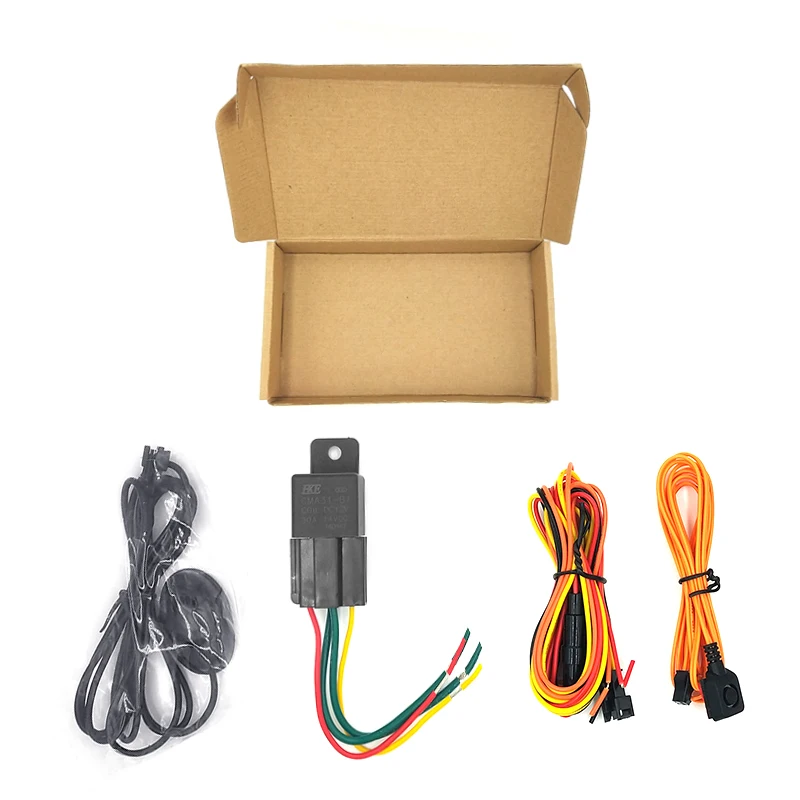

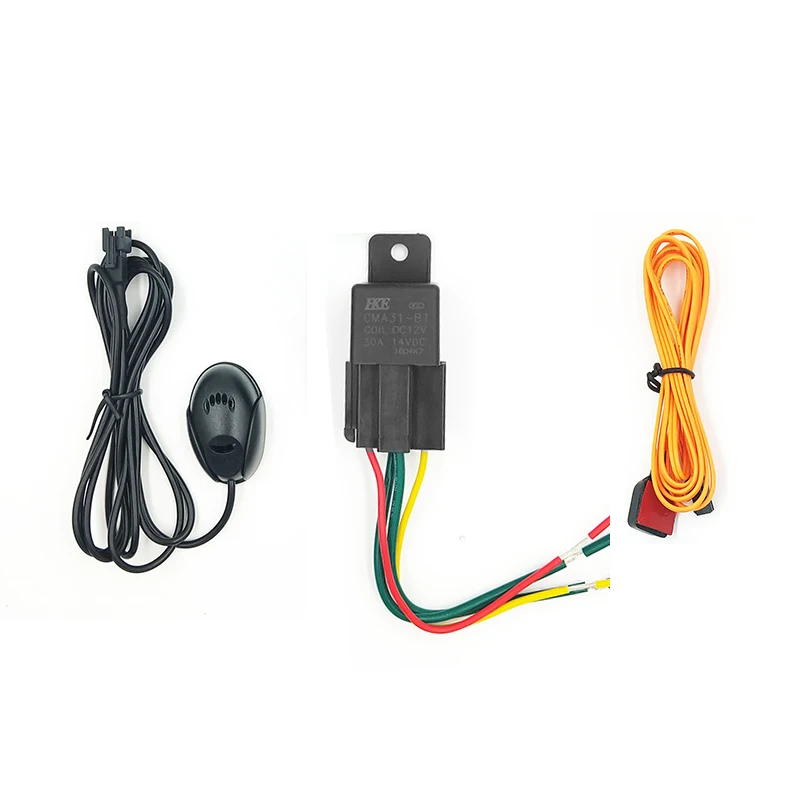

Optional Accessories :Relay ,SOS.
Work Current :<30 mA
Standby Current :<15 uA
IP Waterproof Level :IP65
Dimensions (mm) :90mm x 41mm x 14mm
Weight: 52g
Operating Voltage :9-90V DC
Environment Temperature :-20○C - 65○C
Environment Humidity :20% ~ 80% RH

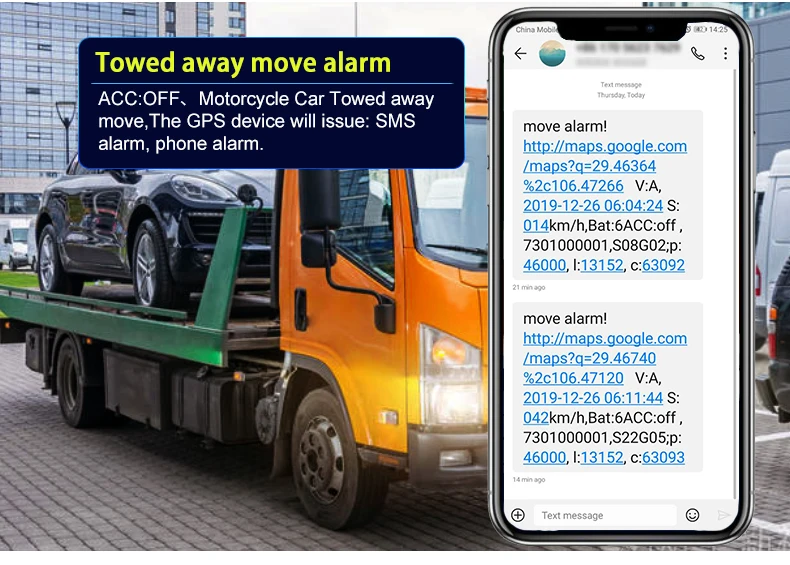

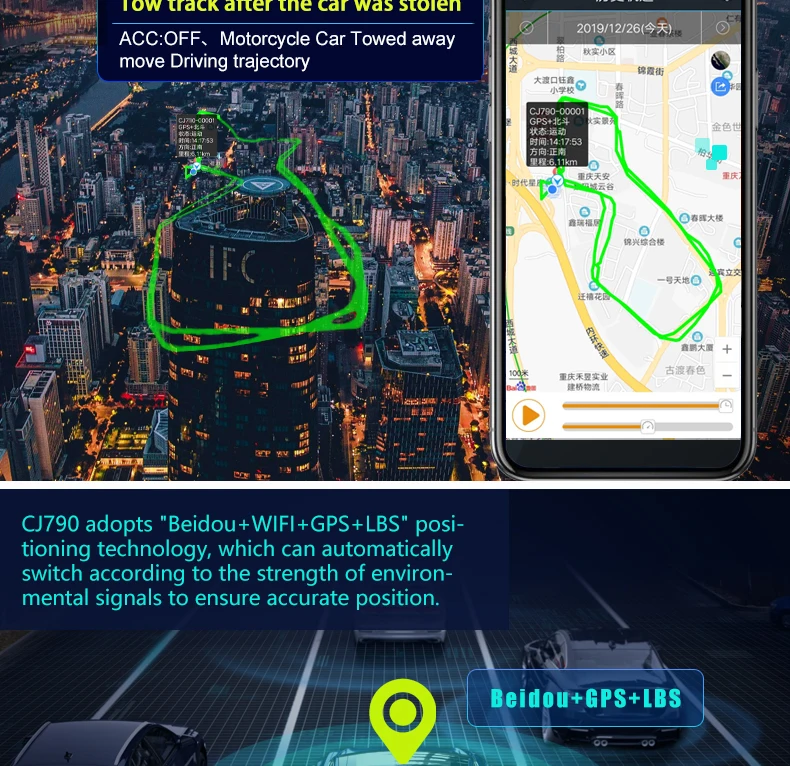

Towed away move alarm

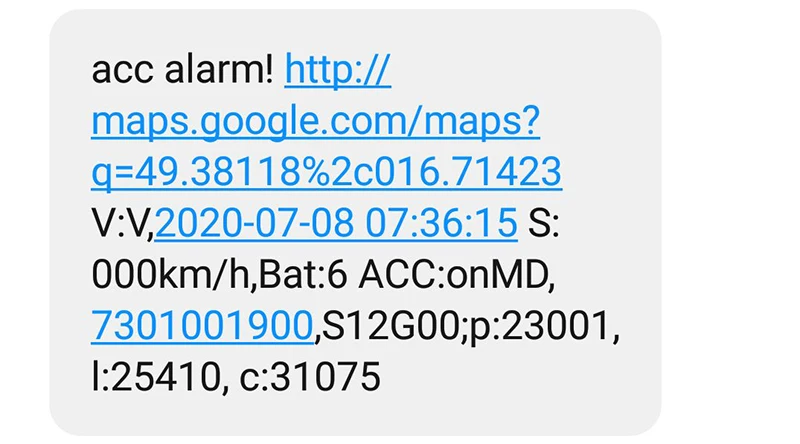

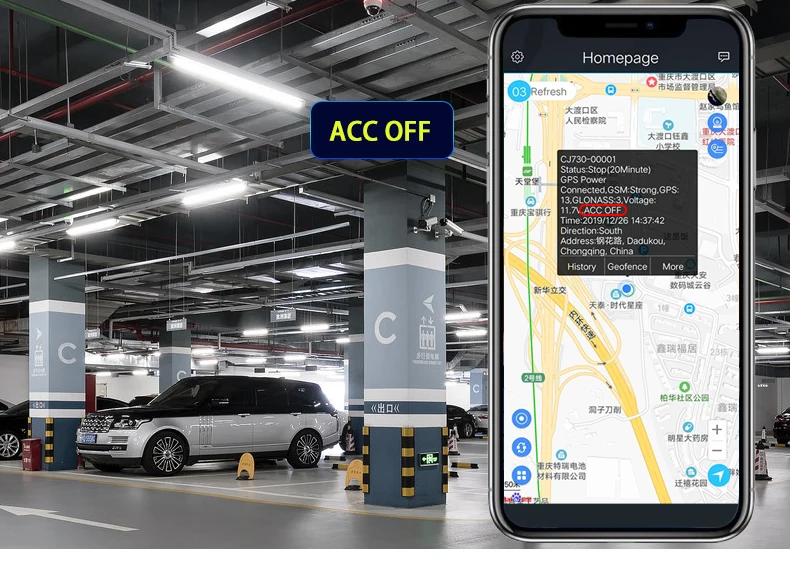

ACC:OFF,Motorcycle Car Towed away move 300 meters alarm ,The GPS device will issue: SMS alarm, phone alarm,
GPS E
- Brand Name
- YunTrack
- Origin
- Mainland China
- Certification
- CE,RoHS
- Model name
- CJ790
- Screen Size
- No Screen
- Battery
- 150 mAh
- Item Size
- 90*41*14MM
- Battery life
- 1 To 4 Hours
- Voltage
- 12V
- Special Feature
- Remote Control
- GPS type
- GPS Tracker
- Gps Module
- Yes
- Out Power
- N
- GPS Geographic Location
- Global
- GPS Accuracy
- 5-10m
- UMTS/HSPA
- 850/800, 900, 1900 and 2100 MHz
- GSM
- 850, 900, 1800, 1900MHZ
- Voltage range
- 9V-90V
- 4G LTE-FDD
- 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41
