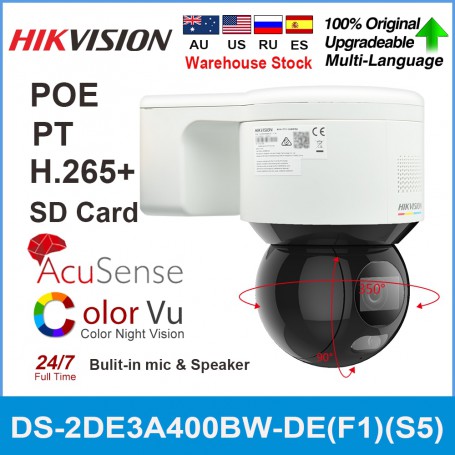

Hikvision 4MP ColorVu Network Speed Dome PT 4mm DS-2DE3A400BW-DE(F1)(S5) Poe SD Card Bulit-in MIc & Speaker Face Capture Camera

>Accurate human and vehicle target classification and alarm, and face capture based on deep learning hardware and algorithm

>Face capture: face tracking and grading; automatic selection of best shot; up to 5 faces detected and captured at the same time

>Linked audible and visual alarm. Built-in microphone and speaker

>Up to 2560 × 1440 @ 30 fps

>Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light

>24/7 colorful imaging with low power consumption. Up to 30 m white light distance

>120 dB WDR, 3D DNR, HLC, EIS

>IP66; PoE

Camera Module

Image Sensor

1/1.8" progressive scan CMOS

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light

Shutter Speed

1/1 to 1/30,000 s

Day & Night

24/7 colorful imaging

Day/Night Switch

day, night, auto, scheduled-switch

BLC

yes

WDR

120 dB WDR

HLC

yes

3D DNR

yes

Defog

yes

EIS

yes

Regional Exposure

yes

Image Settings

saturation, brightness, contrast, sharpness

Image Parameters Switch

yes

White Balance

Locked WB/Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Digital Zoom

16 ×

Privacy Mask

up to 24 masks (8 masks for each scene)

SNR

＞52 dB

General Function

mirror, password protection, watermark, IP address filter

Lens

Focal Length

4 mm

FOV

Horizontal field of view: 88.7°

Vertical field of view: 46.5° Diagonal field of view: 105.0°

Aperture

F1.0

PTZ

Movement Range (Pan)

350°

Movement Range (Tilt)

0° to 90°

Pan Speed

pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s

Tilt Speed

tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s

Proportional Zoom

yes

Presets

300

Power-off Memory

yes

Park Action

preset, patrol scan

3D Positioning

yes

PTZ Status Display

yes

Preset Freezing

yes

Scheduled Task

preset, patrol scan, dome reboot, dome adjust, aux output

Video

Max. Resolution

2560 × 1440

Stream Type

main stream, sub-stream, third stream

Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265, H.264, MJPEG

SVC

yes

ROI

yes

Audio

Audio Compression

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

Environment Noise Filtering

yes

Smart Features

Face Capture

yes

Basic Event

motion detection, alarm input, alarm output, video tampering alarm, exception

Smart Event

intrusion detection, line crossing detection, region entrance detection, region exiting

detection, unattended baggage detection, object removal detection, audio exception detection

Smart Record

ANR, Dual-VCA

Alarm Linkage

preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audile warning, white light flashing

Smart Encoding

H.265+, H.264+, low bit rate, ROI, SVC

Warning and Alert

white light and audible warning

Network

Network Storage

NAS (NFS, SMB/ CIFS)

Protocols

IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security Measures

Authenticated username and password, MAC address binding, HTTPS encryption, IP address filter

Web Browser

IE 10+, Chrome 57+, Firefox 52+, Safari 12+

Interface

Power Output

12 VDC; < 60 mA

Communication Interface

1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)

On-board Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB

Alarm Input

1 alarm input

Alarm Output

1 alarm output

Audio Input

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm ± 10%

Audio Output

1 built-in speaker, 1 audio output, line level, impedance: 600 Ω

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Illuminator

Supplement Light Type

White Light

Supplement Light Range

30 m

General

Power

12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A

Max. 16 W (including max. 4 W for white light)

Operating Conditions

humidity: ≤ 90%,temperature: -30°C to 65°C (-22°F to 149°F)

Reset

yes

Demist

yes

Dimensions

179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71")

Weight

Approx. 1.125 kg (2.48 lb.)

Approval

Protection

IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
