Huawei AX3 PRO Router Wifi 6 + 3000mbps Quad Core Wi-Fi Smart Home Mesh Wireless Router Quad Amplifiers Repeater Network Router

Similar products :

Product Details :

1.Dimensions and Weight:About 403g
225 mm x 159.2 mm x 39.7 mm
2.WIFI :802.11ax/ac/n/a 2 x 2 & 802.11ax/n/b/g 2 x 2, MU-MIMO
3.Colour :Black and White
4.Wi-Fi:802.11ax/ac/n/a 2 x 2 & 802.11ax/n/b/g 2 x 2, MU-MIMO
5.Wireless speed is up to 2976 Mbps (2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps)
6.Processors:Gigahome Quad-core 1.4 GHz CPU

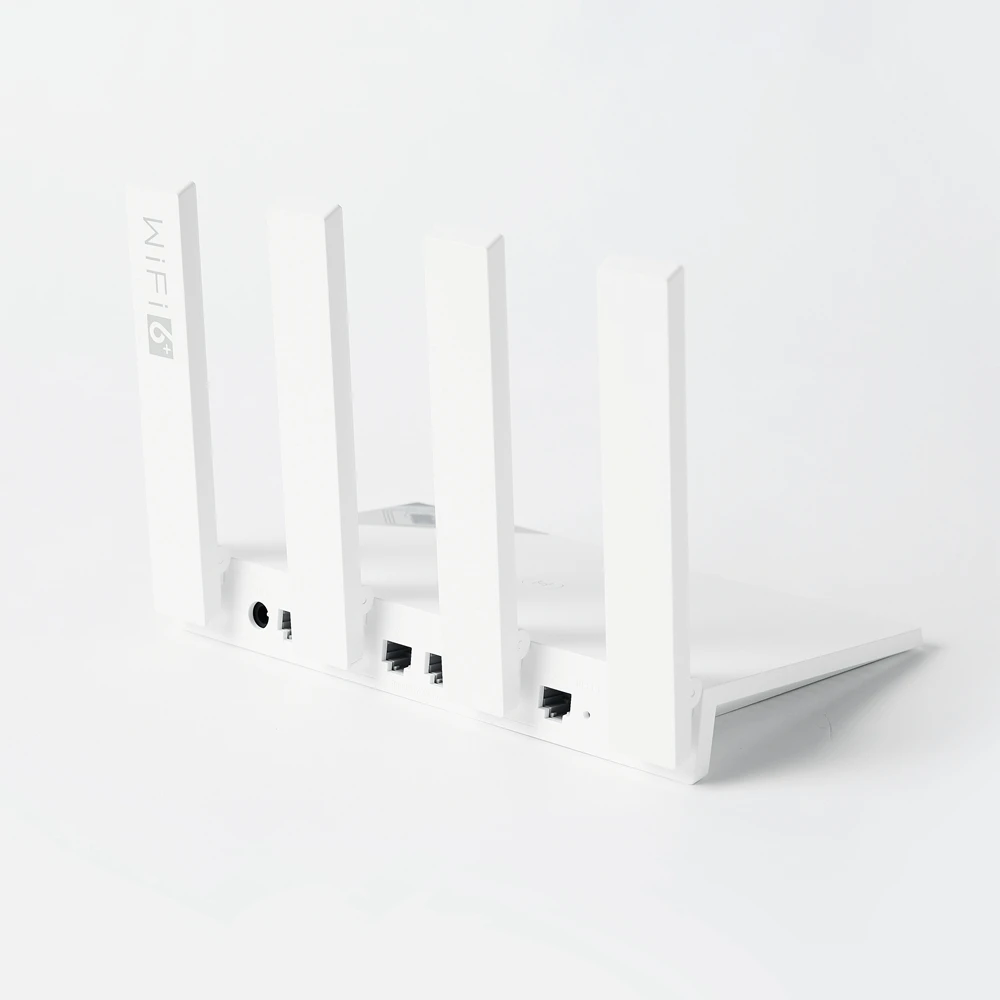

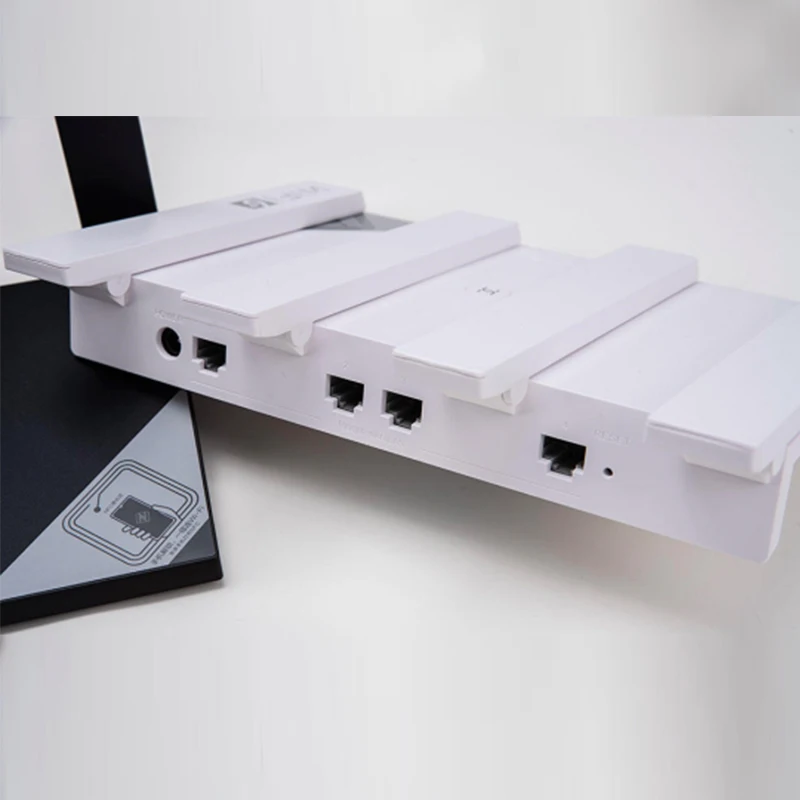

7.Interface:WAN: One 10 / 100 / 1000 Mbps Ethernet port
8.LAN: Three 10 / 100 / 1000 Mbps Ethernet ports
9.Button:H button for one-key pairing and WPS compatible
10.Independent Reset
11.Led Indicator:1 state indicator light
12.Power Supply:12 V DC, 2 A; Consumption < 24 W
13.Software Functions :APP: HUAWEI AI Life App
14.Huawei Share (Tap to Connect), Huawei HiLink & 802.11v protocol, IPv4 / IPv6, PPPoE / DHCP / static IP address / Bridge WAN connection methods, Wi-Fi timer, Guest Wi-Fi, Device speed limiting, MAC address filter, Parental control, VPN pass through, DMZ / virtual server

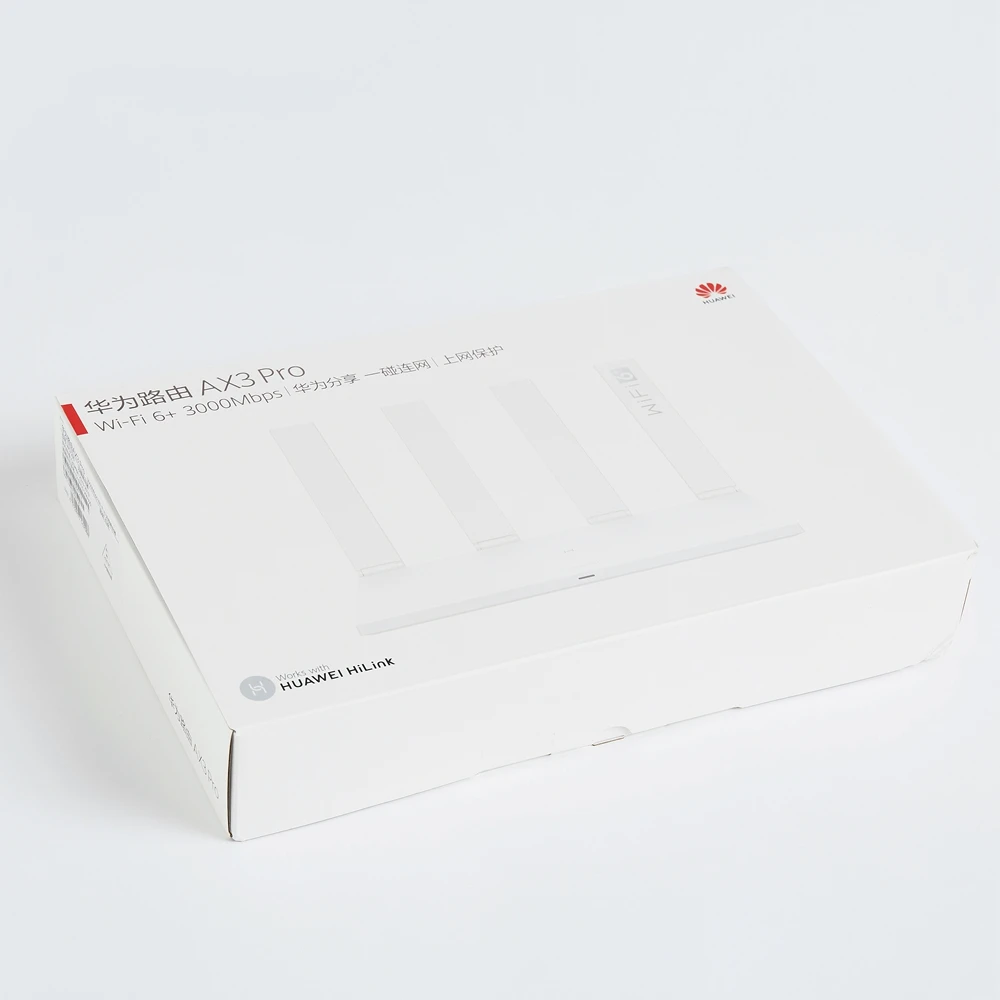

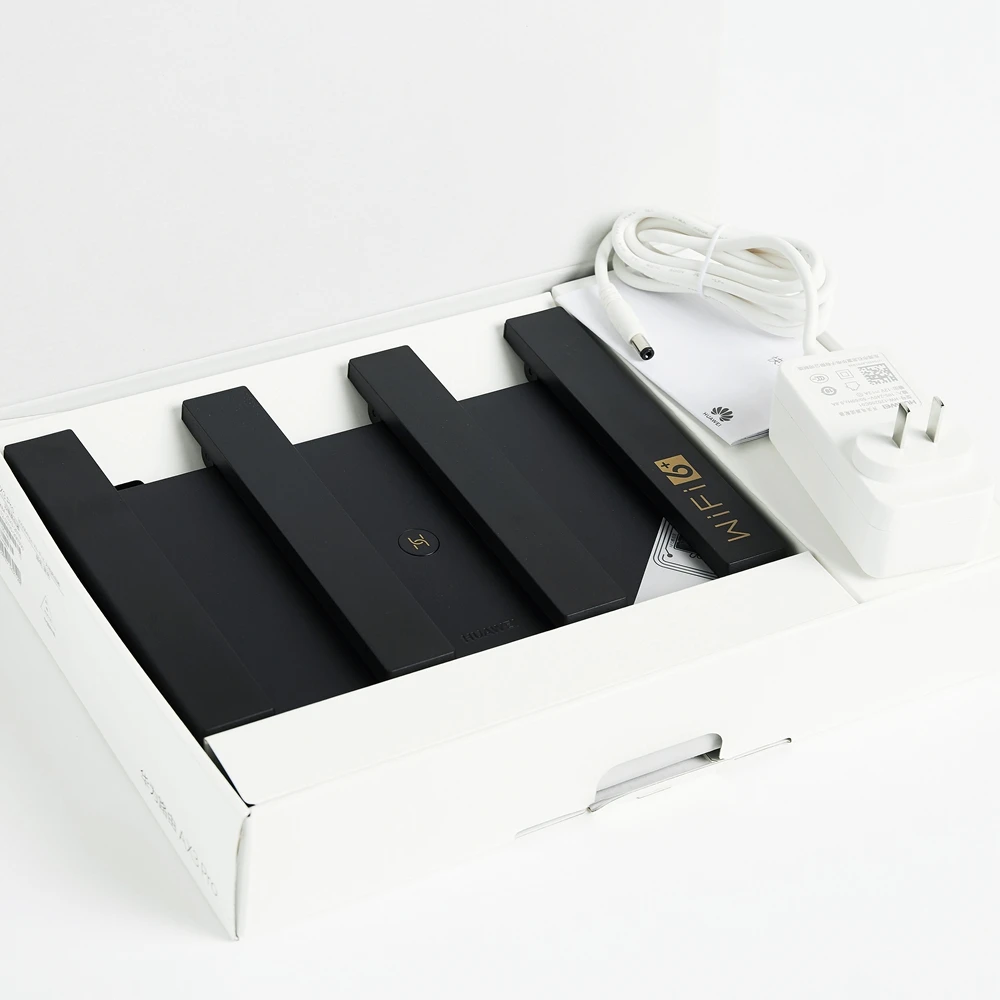

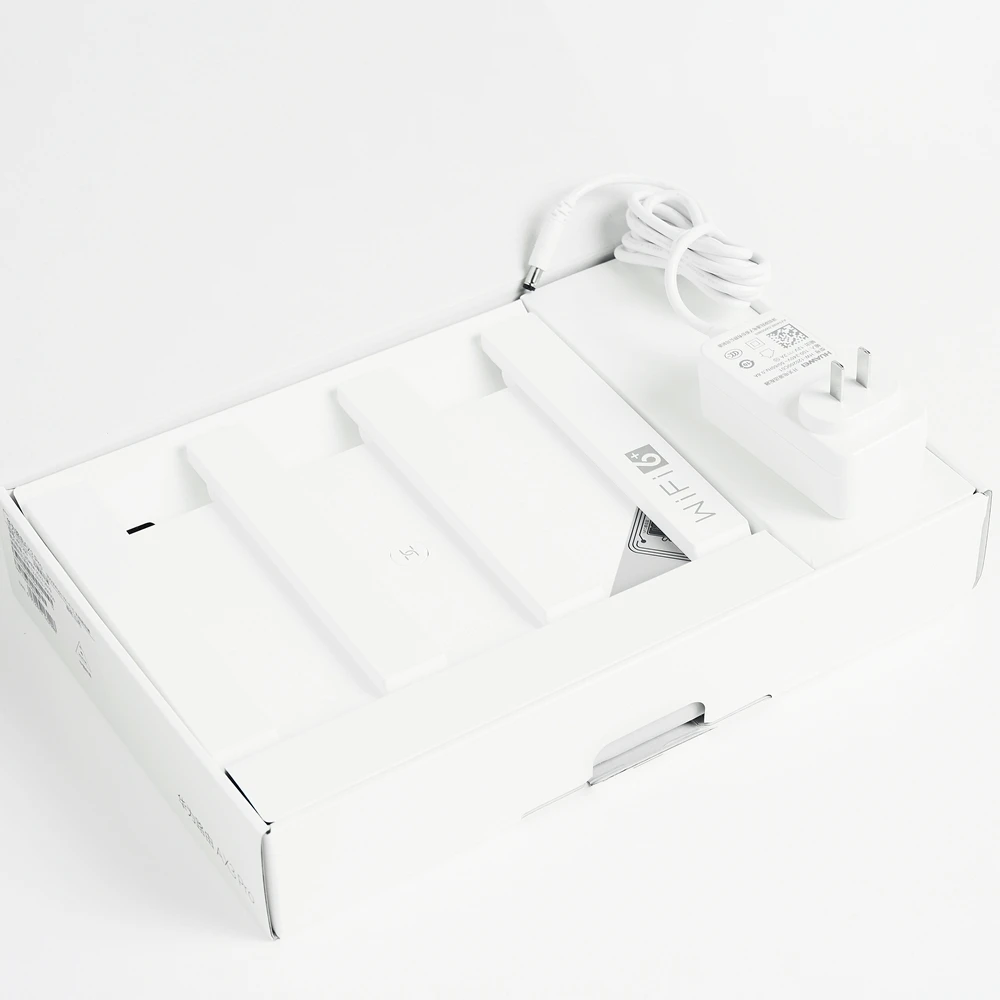

Package List:
1 X Router

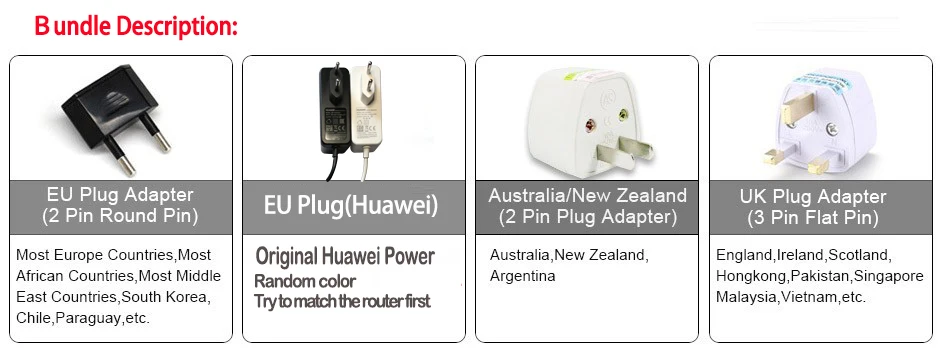

1 X US Plug Charger (Standard)

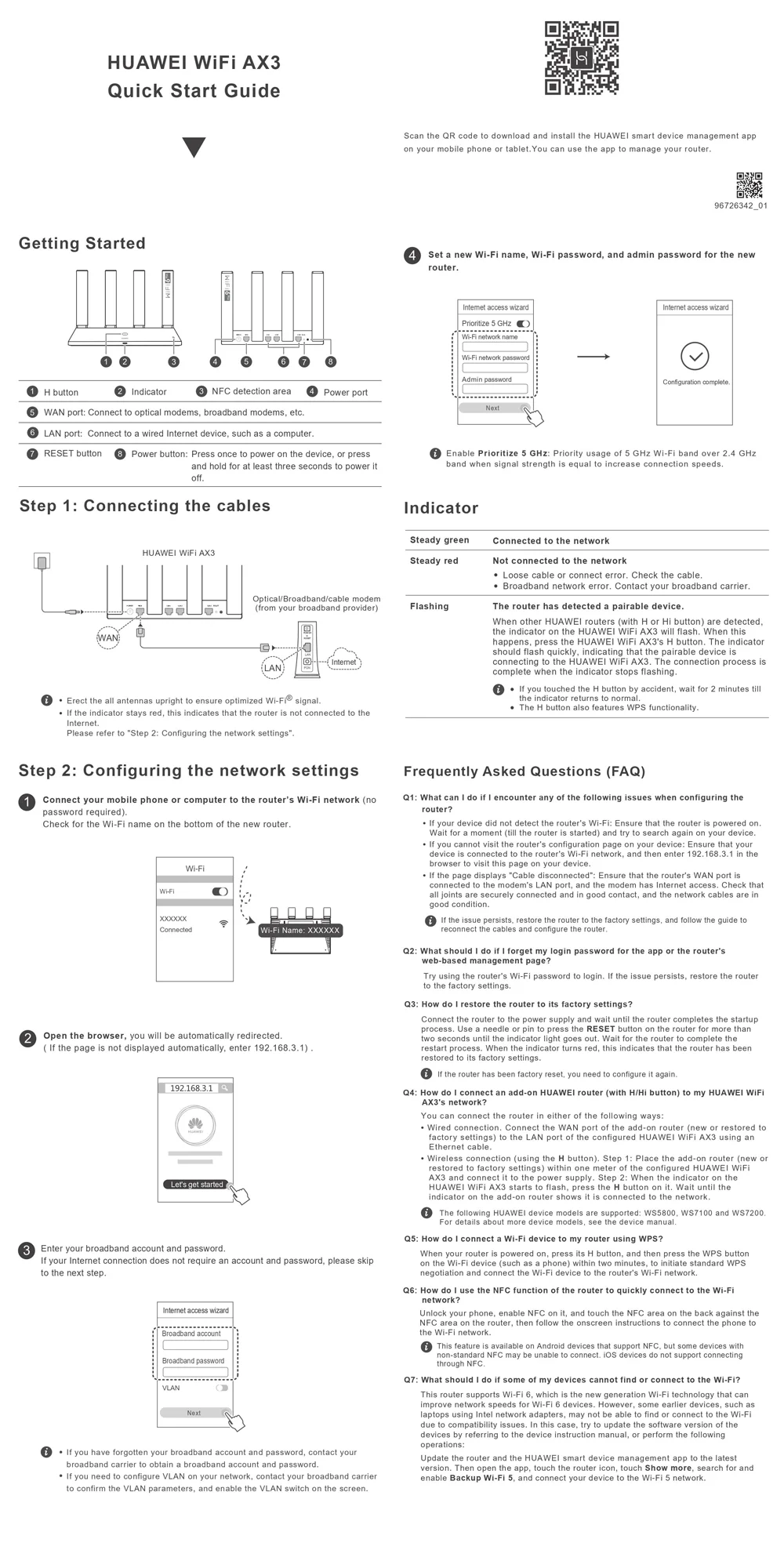

1 X Quick Start (In chinese)

Features

Quad-core Wi-Fi 6 Plus Revolution
3000 Mbps | Huawei Share | Huawei HomeSec

Usher in the Era of Wi-Fi 6

Wi-Fi 5 is the standard used by most devices today, while Wi-Fi 6 (802.11ax) is the new standard that’s gradually coming into smart devices in recent years. Wi-Fi 6 has made several improvements over Wi-Fi 5 to cope with the increasing demand for faster and more efficient Wi-Fi.

1.3 X Faster Speed: With 1024-QAM and 160 MHz bandwidth, the overall speed of Wi-Fi 6 is greatly boosted.

2.4 X Larger Capacity: Wi-Fi 6 (with OFDMA) allows the router to connect more devices simultaneously with little slowdown.

3.2/3 Lowered Latency: Wi-Fi 6 allows you to enjoy faster response when connecting to multiple devices.

4.30% Reduced Power Consumption: Negotiate wake-up time among connected devices to avoid consuming power while waiting/on standby.

Take a Step Further with HUAWEI Wi-Fi 6 Plus

Speed up HUAWEI Wi-Fi 6-Enabled Phones with HUAWEI Wi-Fi 6 Plus
AX3 and Wi-Fi 6-enabled HUAWEI phones are the perfect pair because both are equipped with HUAWEI's self-developed Wi-Fi chipset, which support 160 MHz frequency bandwidth. This lays the foundation for Chipset Synergy, bringing out optimal speed and efficiency.

Signal Can Go Through One More Wall with HUAWEI Wi-Fi 6 Plus

HUAWEI Wi-Fi 6-enabled phones are able to send 6dB stronger signals back to AX3 in stable, 2 MHz narrow bandwidth using Dynamic Narrow Bandwidth technology, which is based on Chipset Synergy. The wireless signals can penetrate solid objects like walls and floors easily. This means that the phone will have good reception of the Wi-Fi signal even when connecting from upstairs or somewhere far from the router.

Fast Speed beyond Your Imagination

You will be impressed with the blazing fast speed delivered by AX3. Thanks to 1024-QAM and 160 MHz frequency bandwidth, its theoretical speed can reach up to 3000 Mbps (574 Mbps on a 2.4 GHz band and 2402 Mbps on a 5 GHz band). The quad-core Gigahome CPU allows AX3 to best unleash its speed. At such speed, what used to be taken for granted, like buffering and lagging, will be a thing of the past. Enjoy smooth streaming and gaming like never before.

Larger Bandwidth with 160 MHz

As AX3 supports 160 MHz, when connecting AX3 to devices supporting 160 MHz, like top-of-the-line HUAWEI Wi-Fi 5-enabled smart phones, tablets and laptops, the internet speed would increase 60% and more.This offers you an unprecedented, lag-free experience on mobile devices

Stronger Signal with Quad Power Amplifiers

Easily handle Wi-Fi dead zones, boost weak connections, and enhance wireless coverage with 4 independent power amplifiers (2 amplifiers for 2.4 GHz and 2 amplifiers for 5 GHz). Applies to both Wi-Fi 5 and Wi-Fi 6 devices

Effortless Connection, Revolutionary Experience

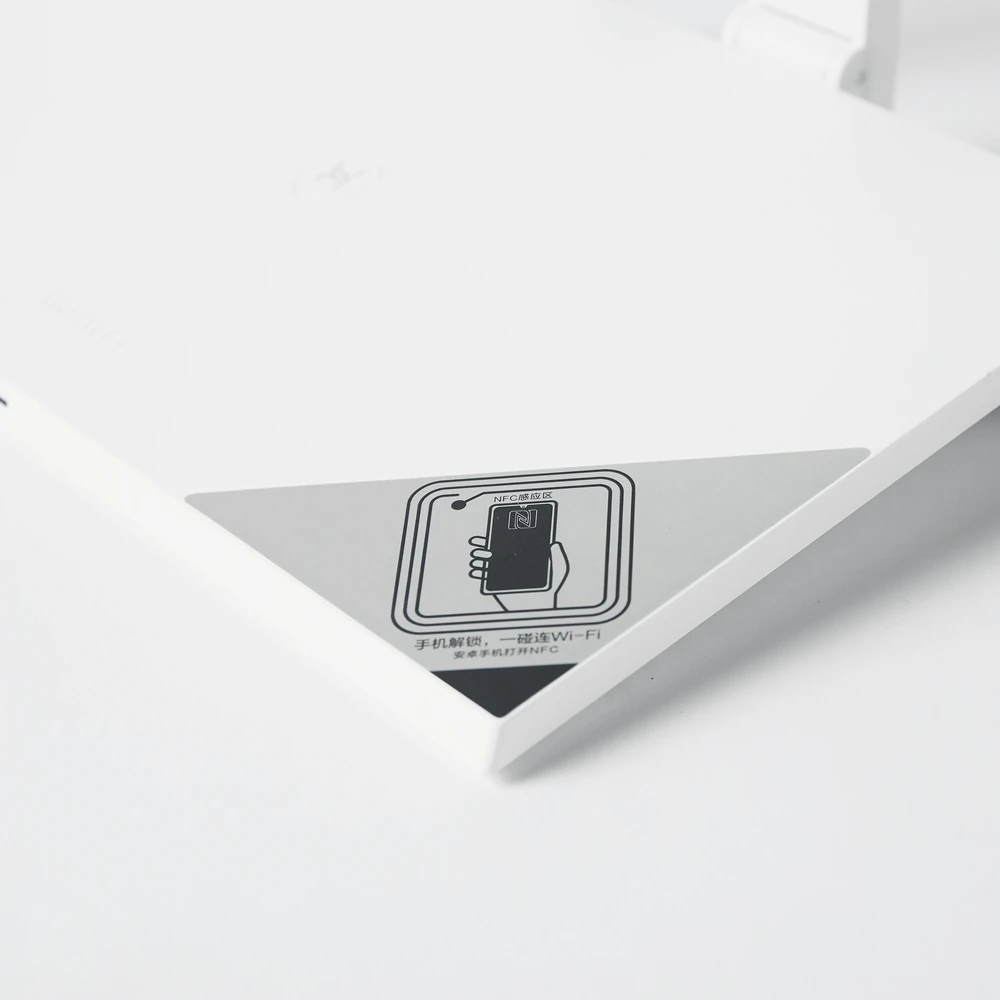

Huawei Share allows you to connect AX3 to your smart phone with a simple tap. Whether throwing a home party or celebrating festivals with friends and families, this router will remember the password for you and let the guests you trust, connect to it easily.

Multi-router mesh networking enables greater Wi-Fi coverage

The HUAWEI WiFi AX3 supports wireless networking, network cable networking, and the hybrid networking of wireless and network cables. After networking, multiple routers are automatically grouped under one Wi-Fi name, and the optimal Wi-Fi is automatically selected based on the device's location. The HUAWEI WiFi AX3 can network with old HUAWEI Wi-Fi routers (with H button) to expand network coverage at home

Wireless Networking:One-click Pairing with H button
Ethernet Cable Networking:Plug & Play of Sub-router
Hybrid Networking :Wireless and Wired

Protect Your Network

Enabled by TEE (Trusted Execution Environment) and Microkernel, AX3 offers a secure area inside its main processor, where both software and hardware are used to protect the data. It is also CC EAL5 certified, meaning it could operate safely in a commercial environment, offering great security assurance to your devices.

Easy To Set

1. Website
2. Smart Huawei AI life APP

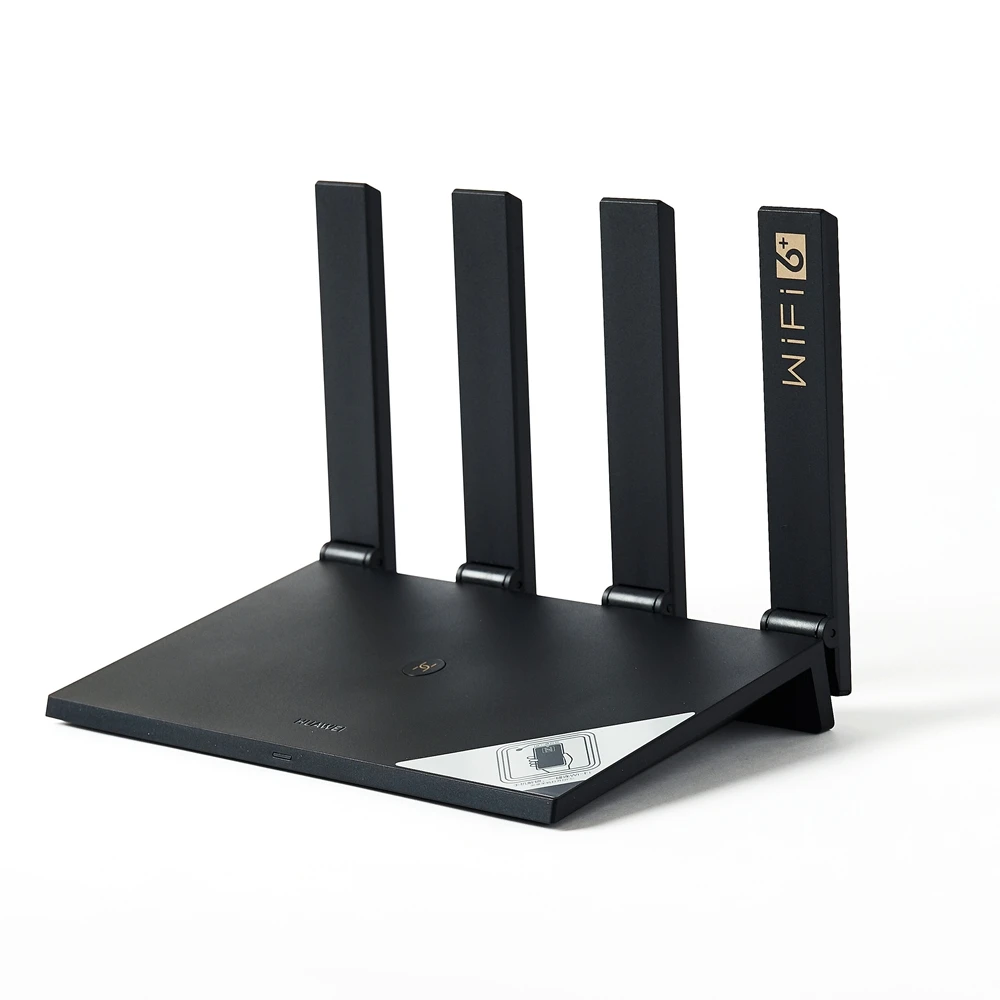

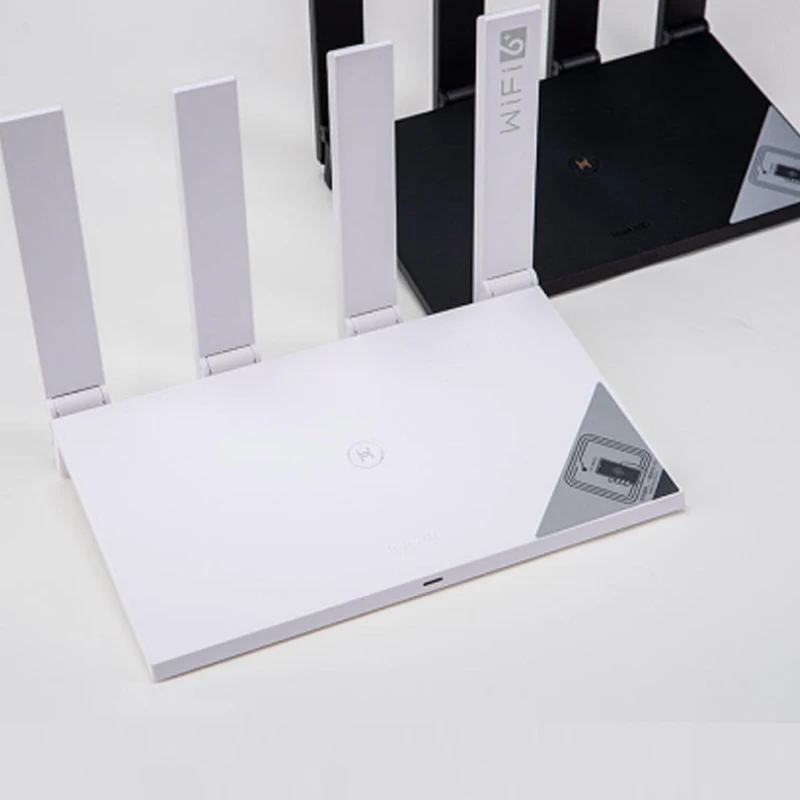

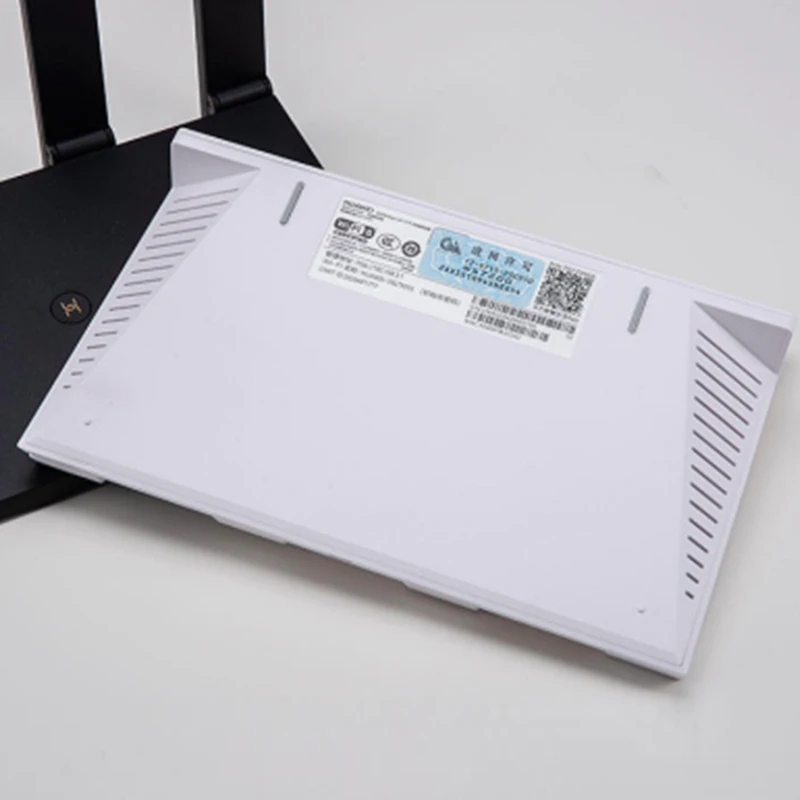

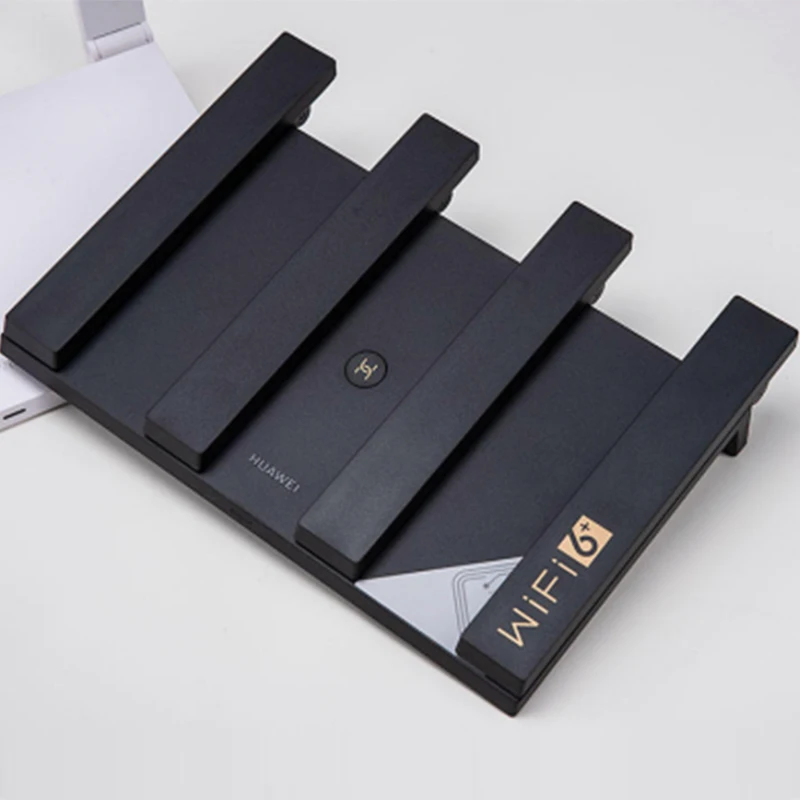

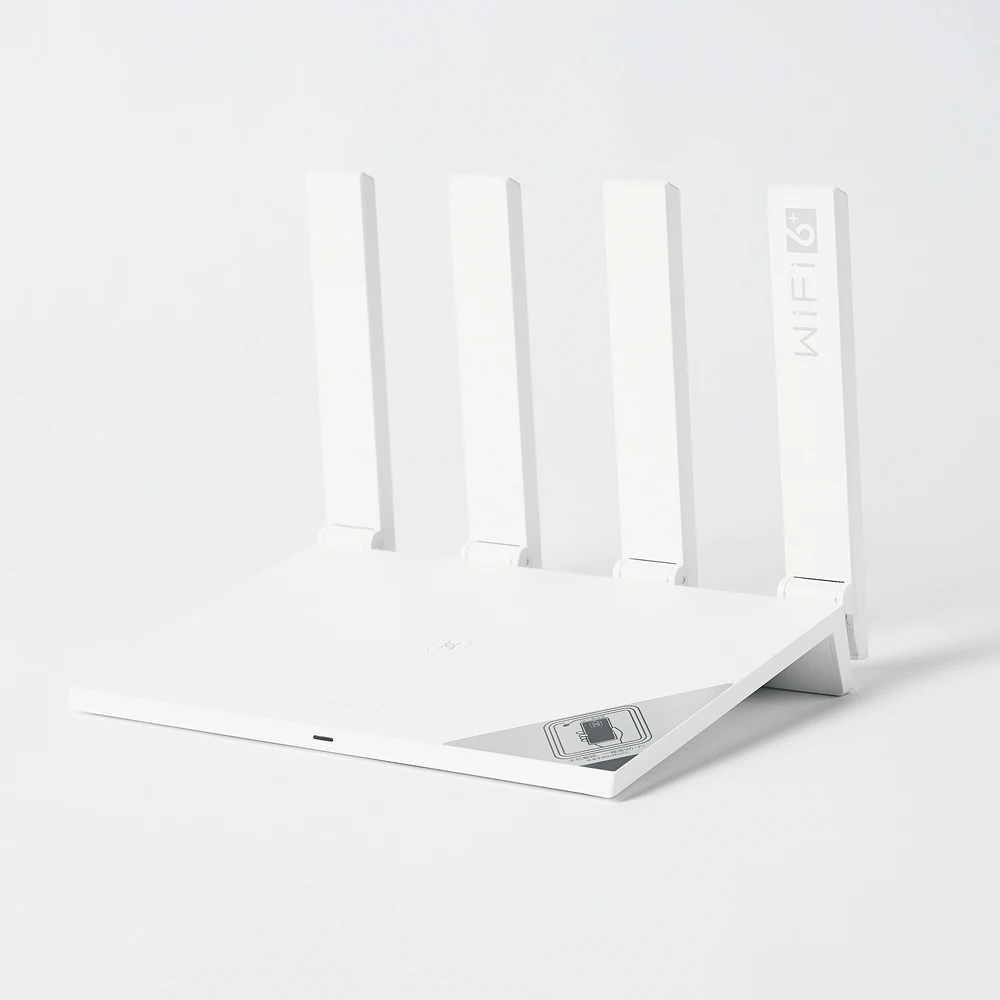

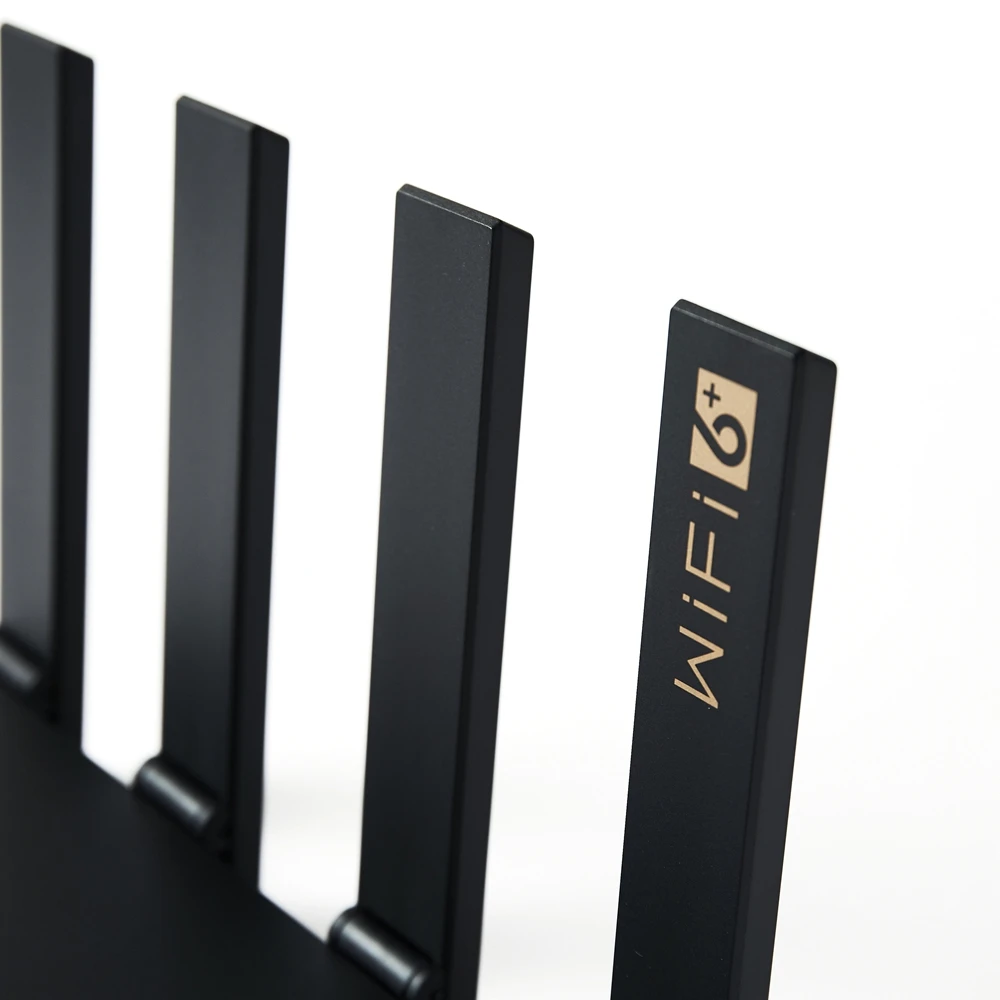

Product Real Picture
