VEVOR Vertical & Horizontal Milling Machine Rotary Table 100MM 150MM 200MM HV4 HV6 HV8 Working Table 360° for Indexing Drilling
zoom_out_map
chevron_left chevron_right

VEVOR Vertical & Horizontal Milling Machine Rotary Table 100MM 150MM 200MM HV4 HV6 HV8 Working Table 360° for Indexing Drilling

VEVOR Vertical & Horizontal Milling Machine Rotary Table 100MM 150MM 200MM HV4 HV6 HV8 Working Table 360° for Indexing Drilling

  • 100MM With Plates
  • 150MM
  • 200MM 3-Slot
  • 200MM 4-Slot
  • 150MM With Plates
  • 100MM
EUR€ 146.95 (tax incl.) EUR€ 146.95 (tax excl.)
Tax included
check In-stock
Product Description
Vertical & Horizontal Rotary Table
The vertical & horizontal rotary table, one of the main accessories of the milling machine, is a precision work positioning device. This machine is widely used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis.

  • Vertical & Horizontal Position

  • Fantastic Material

  • Excellent Precision

  • Convenient to Adjust

  • Wide Application

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
Vertical & Horizontal Design
It can be mounted "flat," with the table rotating around a vertical axis, in the same plane as the cutter of a vertical milling machine. Or, mounted the rotary table on its end (or mount it "flat" on a 90° angle plate) so that it rotates about a horizontal axis. In this configuration, a tail stock can also be used, thus holding the workpiece "between centers."
HT200 Casting
HT200 casting has excellent casting performance, shock absorption performance as well as high strength heat resistance. It ensures the superior performance of the machine and provides you a good sense of use.
High Precision
The dial is divided into 360 degrees in total. The minimum scale can be accurate to seconds. All of these help you handle more complex and more precise tasks. Spindle end is applied accuracy bearing. Can be assured to keep very steady under load cutting.
Easy to Adjust
It's not difficult for you to adjust the rotary table milling machine. What you should do is to adjust the handle to the position where you want because the precise scale is marked on the dial.
Free Accessories
Except for the rotary machine table, we also offer you four locating blocks or wrench and screws. The center can be corrected quickly and accurately by the Key guide block.
Multiple Use
Widely used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis. Great for circular cutting work, boring, spotfacing, and similar work.
150MM / 6" Milling Rotary Table

  • Clamping table diameter: 150mm / 6"

  • Number of grooves: 4

  • Width of grooves: 11mm / 0.43"

  • Circular Accuracy: 0.04

  • The parallelism of the mounting surface: 0.04

  • Parts accuracy: 45"

  • Transmission of the worm gear: 90/1

  • Basic dimension horizontal: 180 x 170mm / 7 x 6.7"

  • Basic dimension vertical: 205 x 80mm / 8 x 3.15"

  • Height: 80mm / 3.15"

  • Weight without packaging: 11.1kg / 24.47lb

  • Worktable with scale: 360 °

  • Load horiz.: 40kg / 88.18lb

  • Stress vertic.: 20kg / 44.09lb

Package Content

  • 1 x Vertical and Horizontal Rotary Working Table

150MM / 6" Milling Rotary Table With Dividing Plates

  • Centre Bore: MT-2

  • T-slot Diameter: 1/2inch (14mm)

  • Table Dimension: 6inch (150mm)

  • Plate 'A' - 15, 16, 17, 18, 19, 20

  • Plate 'B' - 21, 23, 27, 29, 31, 33

  • Plate 'C' - 37, 39, 41, 43, 47, 49

Package Content

  • 1 x Rotary Table

  • 3 x Dividing Plates

  • 1 x A Set of Accessory

100MM / 4" Milling Rotary Table

  • Table Diameter: 4"/100mm

  • Material: HT200 Casting

  • Accuracy:0.01

  • Reduction Ratio: 1:36

  • Horizontal Height : 2.76"/70mm

  • Net Weight: 33.07"/15kg

Package Content

  • 1 x Vertical and Horizontal Rotary Working Table

  • 1 x Wrench

  • 1 x Screw Set

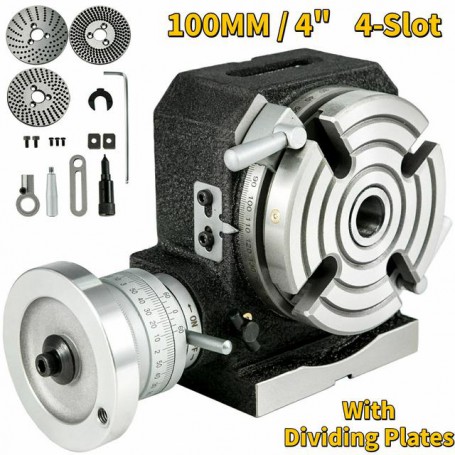

100MM / 4" Milling Rotary Table With Dividing Plates

  • Centre Bore: MT-2

  • T-slot Diameter: 1/2inch (12mm)

  • Table Dimension: 4x3inch (100x80mm)

  • Plate 'A' - 15, 16, 17, 18, 19, 20

  • Plate 'B' - 21, 23, 27, 29, 31, 33

  • Plate 'C' - 37, 39, 41, 43, 47, 49

Package Content

  • 1 x Rotary Table

  • 3 x Dividing Plates

  • 1 x A Set of Accessory

200MM / 8" Milling Rotary Table 3-Slot

  • Material: HT200 Casting

  • Table Diameter: 8"/200mm

  • Center Bore: MT-3

  • Reduction ratio: 1：90

  • Horizontal Height : 4.13"/105mm

  • Vertical Height : 1.57"/40mm

Package Content

  • 1 x Vertical and Horizontal Rotary Working Table

  • 1 x Wrench

  • 1 x Screw Set


200MM / 8" Milling Rotary Table 4-Slot

  • Material: HT200 Casting

  • Table Diameter: 8"

  • Center Bore: MT-3

  • Reduction ratio: 1：90

  • Horizontal Height : 105 mm/4.13 inch

  • Vertical Height : 40 mm/1.57 inch

Package Content

  • 1 x Vertical and Horizontal Rotary Working Table

  • 1 x Wrench

  • 2 x Positioning Keys

  • 2 x Mounting Screws

Features & Details

  • 【VERTICAL & HORIZONTAL POSITION】- Our rotary table with four slots is 4'' / 6'' / 8'' (100mm / 150mm / 200mm) in diameter, it can be used in horizontal and vertical positions, meeting two functions and also bringing you convenient as well as efficient milling experience.

  • 【FANTASTIC MATERIAL】- HT200 Casting is mainly used to cast parts subjected to pressure and vibration on mechanical equipment. Adopted it as the material, our rotary milling table is durable, shock-absorbing, and heat-resistant.

  • 【EXCELLENT PRECISION】- The rotary table for milling machine can be graduated 360 Degrees. Resetting dial and handwheel can be graduated in seconds. The enclosed design prevents the penetration of dirt and chips.

  • 【CONVENIENT TO ADJUST】- The dial of the rotary table for mill is marked with an accurate scale. Just operate the control handle and adjust it to the desired position, which makes it possible to use it easily and conveniently.

  • 【WIDE APPLICATION】- This mill rotary table is popular for its excellent performance, practical design, and high precision. They are widely used for circular cutting work, boring, spot facing, and similar work.

Milling Machine
5 kg
Origin
Mainland China
Type
Vertical & Horizontal
Application
For Milling Drilling Metalworking
Certification
CE
Product
Mill Rotary Table (With Dividing Plates)
Condition
New
Clamping Table Diameter
100MM, 150MM, 200MM / 4", 6", 8"
Number of Grooves
3-Slot, 4-Slot
Worktable with Scale
360 °
