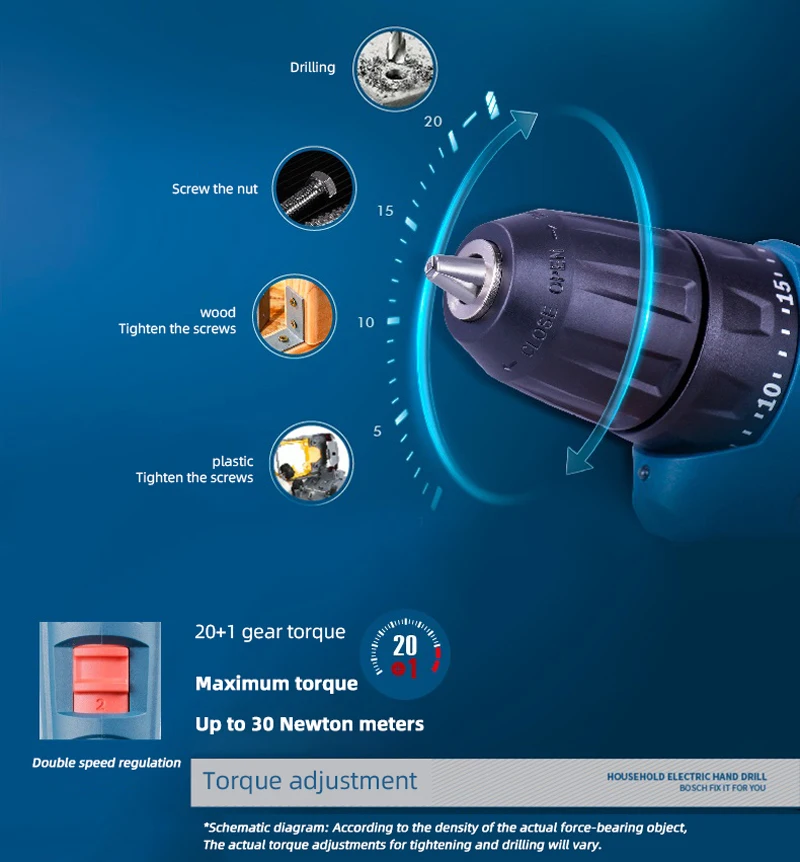

20+1 Gear Torque
Maximum torque, up to 30 Newton meters

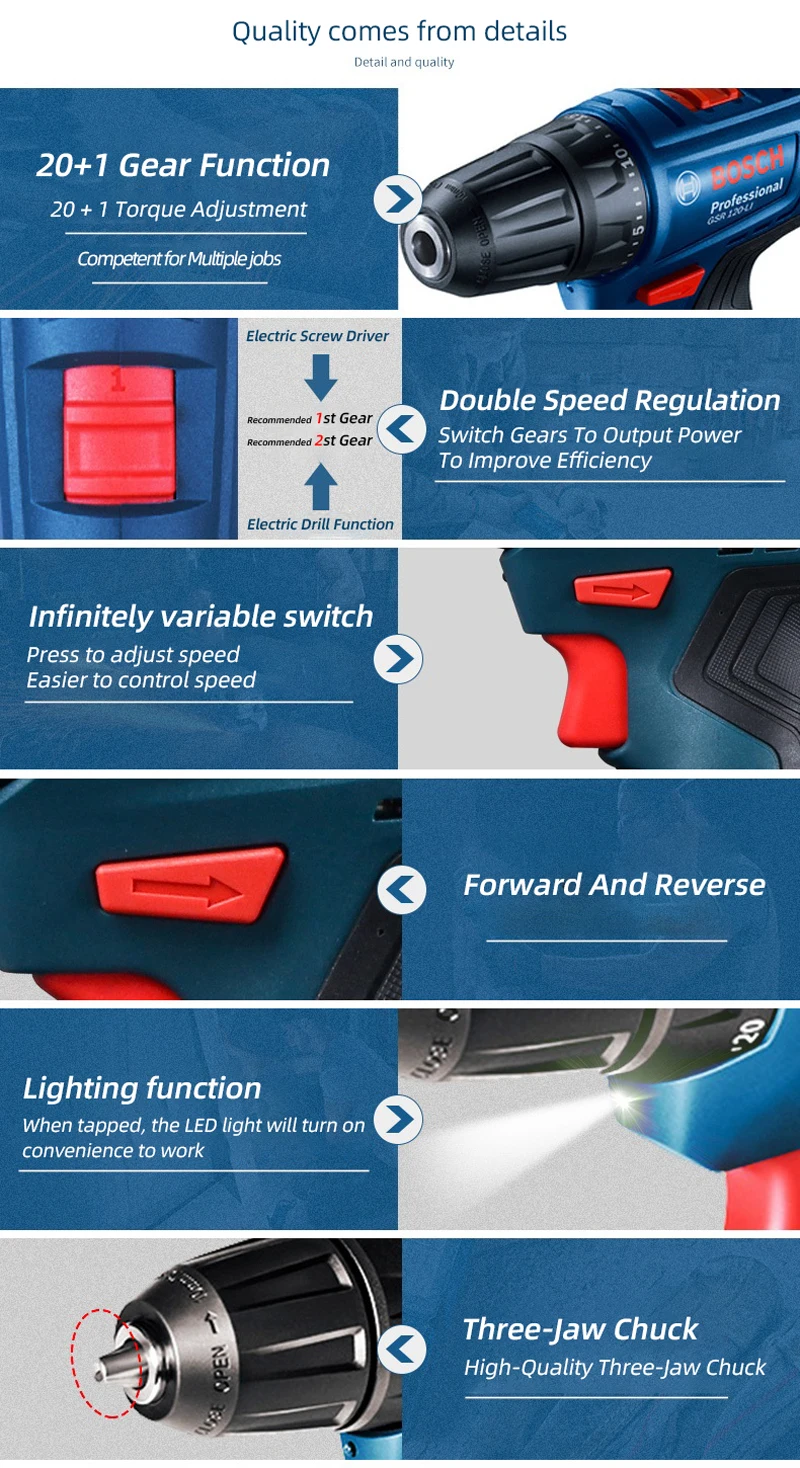

Quality comes from details
- 2. Double speed regulation
- 3. Infinitely variable switch
- 4. Forward and backward adjustment
- 5. Lighting function
- 6. Three-jaw chuck
Seller's recommendation: If you want to use the electric screwdriver function, it is recommended to use the first gear, if you want to use the electric drill function, it is recommended to use the second gear.

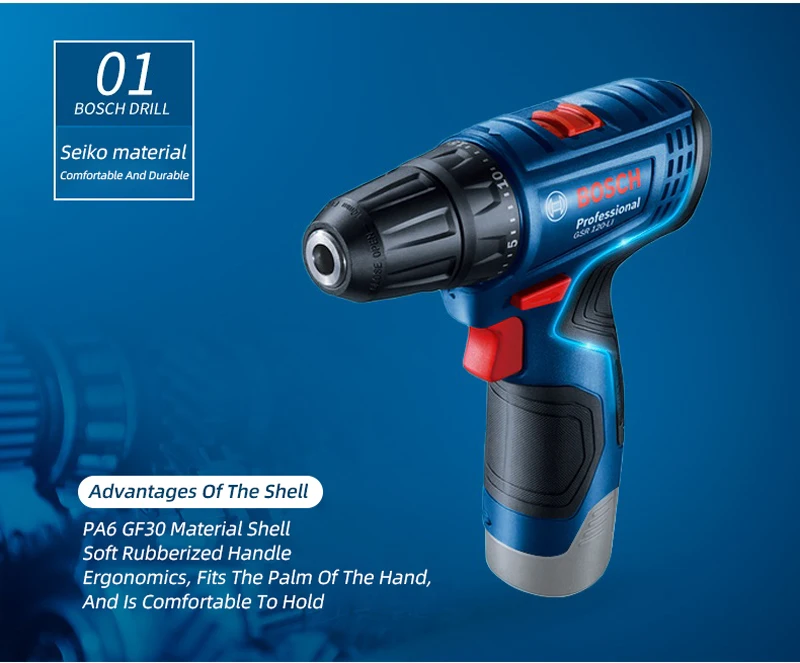

Advantages of the shell
PA6 GF30 material shell
Soft rubberized handle
Ergonomics, fits the palm of the hand, and is comfortable to hold

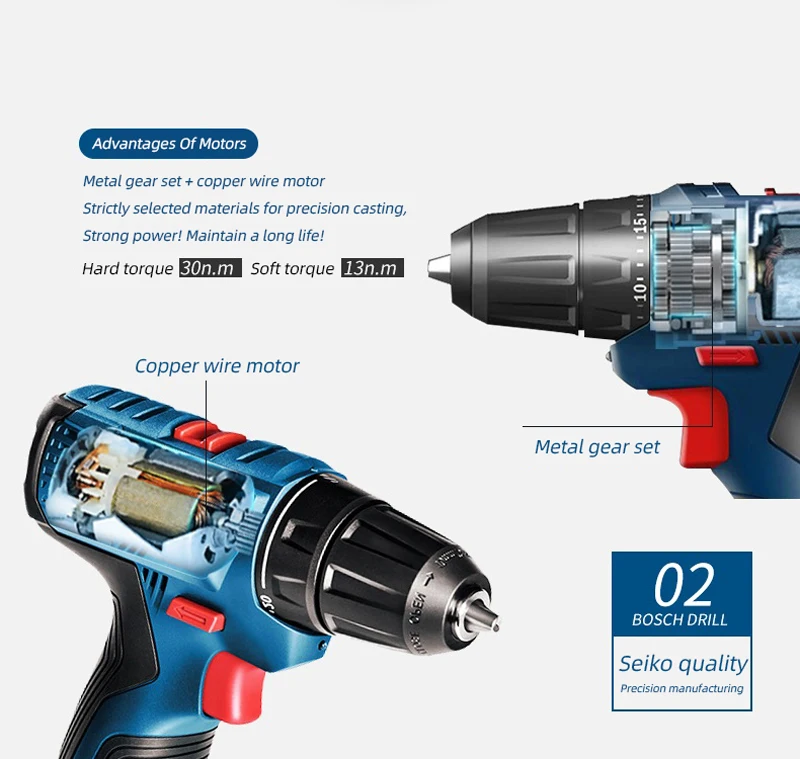

Advantages of motors
Metal gear set + copper wire motor
Strictly selected materials for precision casting,
Strong power! Maintain a long life!
Hard torque 30n.m Soft torque 13n.m

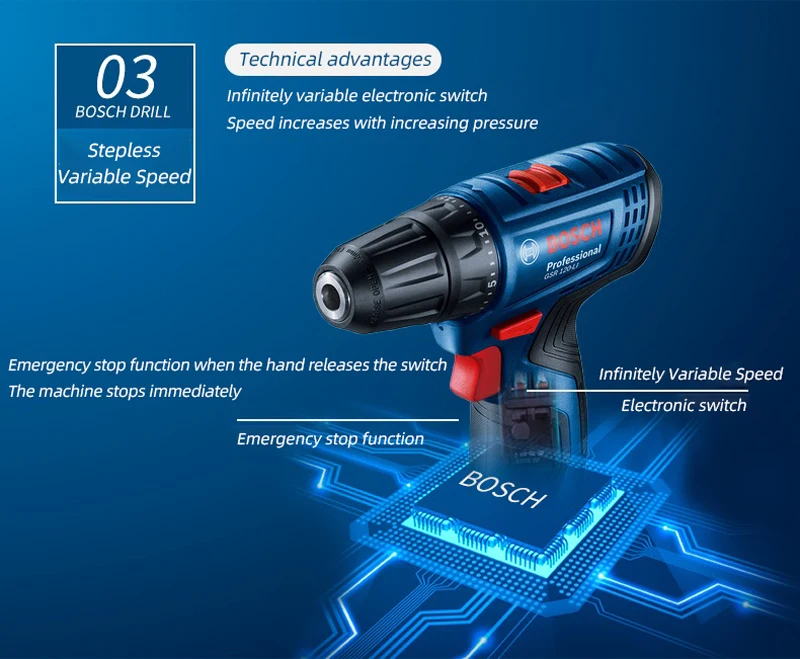

Technical advantages
Infinitely variable electronic switch: the speed increases with the increase of pressing force.
Emergency stop function: when the hand releases the switch, the machine stops immediately.

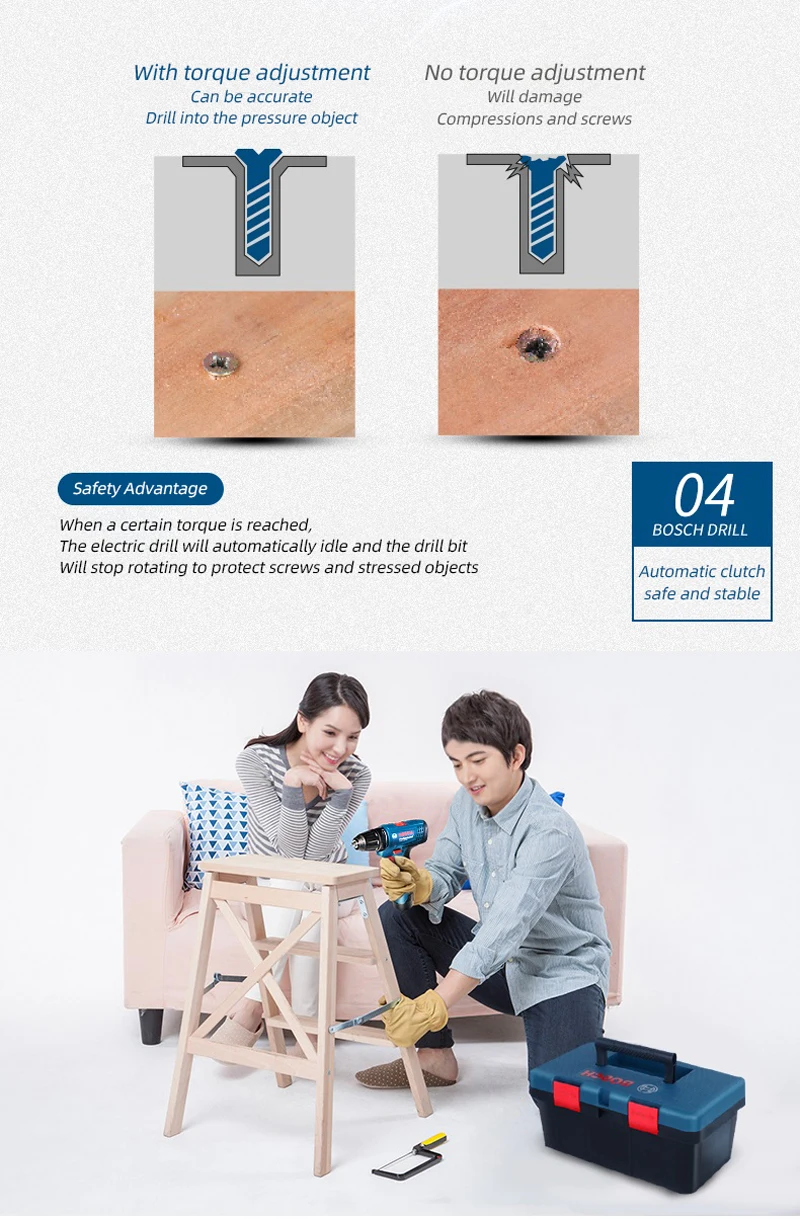

Introduction of automatic clutch function
BOSCH GSR 120 LI has a torque adjustment function. The function of torque adjustment is to accurately drill into the pressure object and protect the screw without damaging the pressure object.
Products without torque adjustment will damage the pressure object and screws.

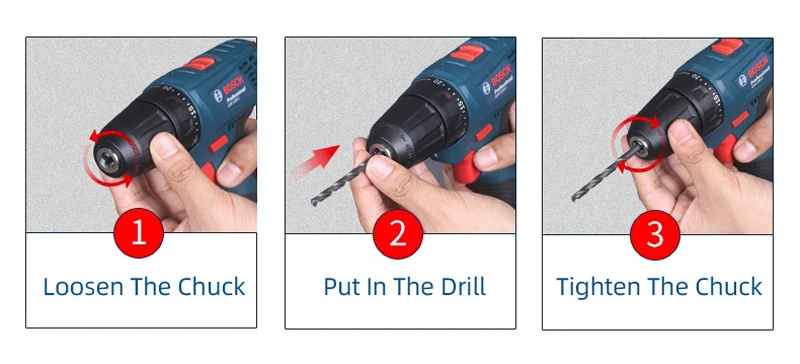

How to replace the drill bit
1. Loosen the chuck
2. Put in the drill
3. Tighten the chuck
- Brand Name
- Bosch
- Origin
- MY(Origin)
- Model Number
- GSR 120-LI
- Type
- Cordless Screwdriver
- Certification
- CE
- Weight
- 0.8 kg
- Power Source
- Battery
- Usage
- Home DIY
- Torque (soft/hard/maximum)
- 14/30/- Nm
- No-load speed (1st gear/2nd gear)
- 0 to 400/0 to 1,500 rpm
- Chuck diameter, min/max
- 1.5/10 mm
- Torque setting
- 20+1
- Chuck
- Three jaw chuck
- Maximum drilling diameter in wood
- 20 mm
- Maximum drilling diameter in steel
- 10 mm
- Maximum screw diameter
- 7 mm
- Vibration emission value ah
- 0.7 m/s
- Uncertainty factor K
- 1.5 m/s
