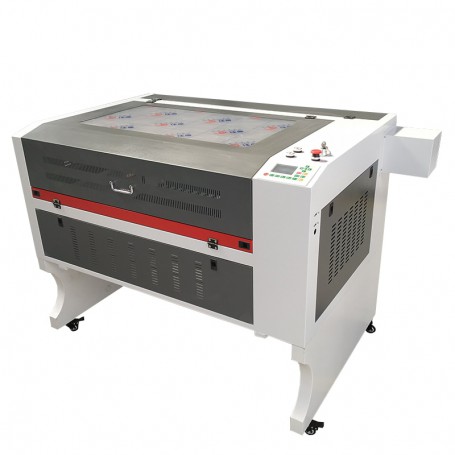

Laser engraver 9060 100w ruida 6442 6445 system XY axis square linear laser engraving 600*900mm co2 laser cutting machine 6090
zoom_out_map
chevron_left chevron_right

Laser engraver 9060 100w ruida 6442 6445 system XY axis square linear laser engraving 600*900mm co2 laser cutting machine 6090

Laser engraver 9060 100w ruida 6442 6445 system XY axis square linear laser engraving 600*900mm co2 laser cutting machine 6090

  • Ruida 6442S
  • Ruida 6445G
  • 50W
  • 60W
  • 80W
  • 100W
  • 130W
EUR€ 1,999.00 (tax incl.) EUR€ 1,999.00 (tax excl.)
Tax included
check In-stock

Laser engraver 9060 100w ruida 6442 6445 system XY axis square linear laser engraving 600*900mm co2 laser cutting machine 6090

Notice:

If you are from Russia or Belarus, you can pay this link directly. This link includes shipping and customs duties, and you do not need to pay any additional fees. We will send the goods to the warehouse closest to you.

If you are from a country other than Russia and Belarus, the price in this link does not include shipping costs, not free shipping. Because the price of freight in each country is very different, please contact me to check the freight before purchasing.




Updated Functions!

  • 600*900mm work area, fence blade table + honeycomb table

  • Ruida 6442s or Ruida 6445G optional.

  • EFR tube or Reci tube ( EFR tube have 6000 hours , Reci have 10000 hours work life span

  • Front to rear design, long material can pass through.

Specifications

Model

Laser Cutting Machine TS6090

Working Table Size

600mmm *900mm

Laser Tube brand

EFR or Reci

Control System

Ruida 6442S (English/Russian/Spanish/France/ Portuguese)

Working Table

Honeycomb + Cutting blade table

Motor

42 Stepper Motor

Driver

Stepper Motor driver

Up and down

Electrical up and down

pass front and back

Support

X axis and Y axis

12mm width square linear guides

Laser Power

50/60/80/100w

Z axis adjust height

180 mm

Cutting Speed

0-100mm/s

Engraving Speed

0-600mm/s

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1.5×1.5mm (Chinese Characters 2*2mm)

Support Files

BMP,HPGL,PLT,DST and AI

Interface

USB2.0

Software

RD works

Computer system

Windows XP/win7/ win8/win10

Power Voltage

AC 110 or 220V±10%,50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Working Environment

0-45℃(temperature) 5-95%(humidity)

Power consumption

<1200W (Total)

Position system

Red-light pointer

Cooling way

Water cooling and protection system

Gross Weight

180KG

Package

Standard plywood case for export

Warranty

All life free tech support, one year warranty, except consumables

Free accessories

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable

Detailed images

Free accessories

Optional accessories (not for free)

cw3000 water chiller 210 USD

cw5000 water chiller 320 USD

Rolling rotary device 75 USD

Chuck rotary device 180 USD

Four wheel rotary device 180 USD.

Applicable materials

FAQ:

Notice: Express Seller's Shipping Method means that we will pay for the freight by sea to your basic sea port, we pay for freight , need customer clear the customs ,pay the customs tax and local sea port charges. it is not door to door service.

Q1. How to get the most suitable machine and best price
Please tell us the material you want to engrave or cut? Max size and thickness?

Q2. If we don't know how to use the machine,can you teach us?
Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.

Q3.How about your after-sales service?
we offer you 24 hours service by phone, Skype or Whatsapp.

Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q5. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.
F.Send your order by air or by sea.

Engraver F
Brand Name
JIN ZHI YIN
Origin
Mainland China
Model Number
TS6090
Certification
CE
Is Smart Device
YES
Power
100w
Control system
ruida 6442S/6445G
work size
600*900
laser tube
EFR
go through front and back
yes
Working table
blade table and honeycomb table
