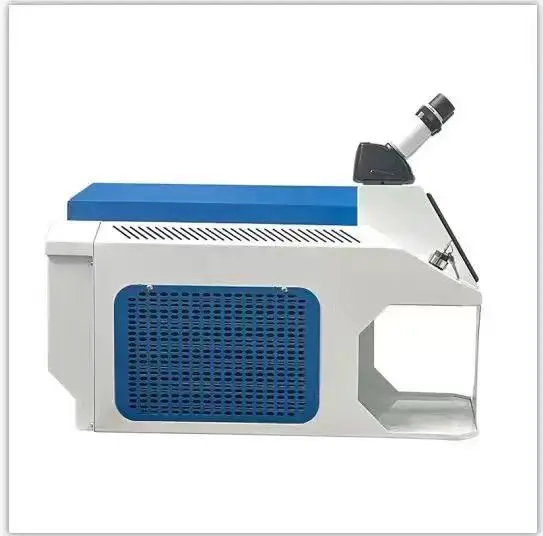

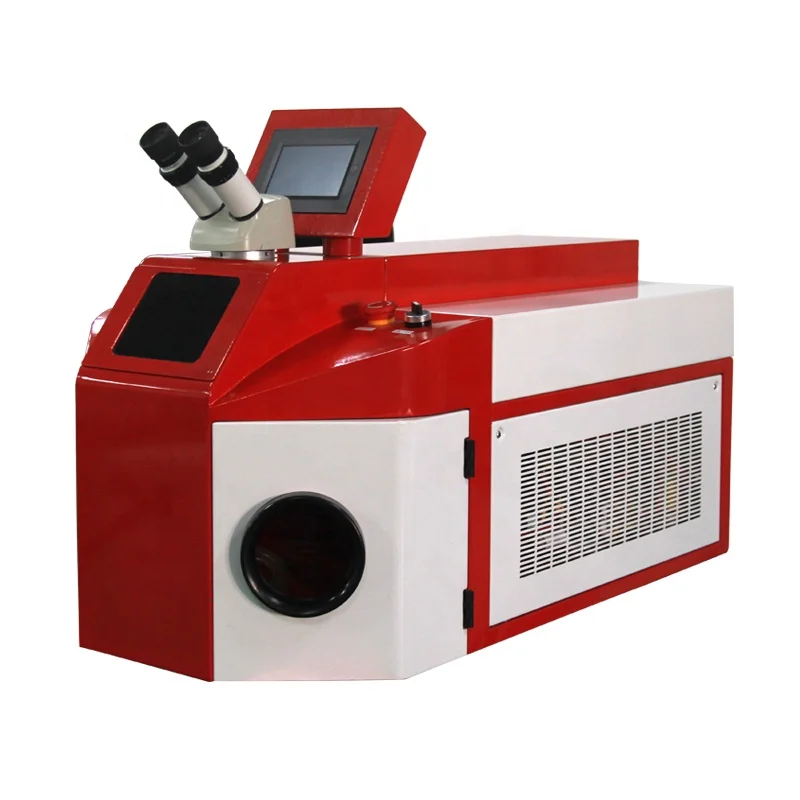

This model is perfectly suited for Jewelers . The BCXlaser was not only developed for laser experts but also for technicians intending to simply bond metal to metal. The use of this laser system is quick and easy to learn and you will have the support of our BCX Laser Team. The handiness and mobility of the Mactronlaser makes any job that calls for detail and artistry, quicker, easier and programmable to ensure consistency. The results exceed conventional processes for all welding and joining tasks.
Specification
Model | BCX-W200 | BCX-W300 | BCX-W500 |
Lasertype | Nd:YAG | Nd:YAG | Nd:YAG |
Max. mean power | 40 W | 55 W | 55 W |
Pulse peak power | 7 kW | 9 kW | 11 kW |
Max. pulse energy | 60 J | 80 J | 100 J |
Pulse duration | 0,2 - 20 ms | 0,4 - 20 ms | 0,4 - 20 ms |
Pulse frequency | 0,5 - 20 Hz | 0,5 - 20 Hz | 0,5 - 20 Hz |
Focus diameter | 0,2 - 2,0 mm | 0,2 - 2,0 mm | 0,2 - 2,0 mm |
Line voltage (V/Ph/Hz) | 230/50 | 230/50 | 230/50 |







- Origin
- Mainland China
- Model Number
- BCX-100/200W
- Certification
- CE
- Max. Output Power
- 100-200-300W
- Usage
- Jewelry welding
- Dimensions
- 920mm*560mm*1220mm
- Rated Voltage
- 220V
- Focal Spot Diameter
- 0.1-2.0mm
- Single Pulse Energy
- 100J
- Pulse Width
- 0.3-20ms
- Wavelength
- 1064
