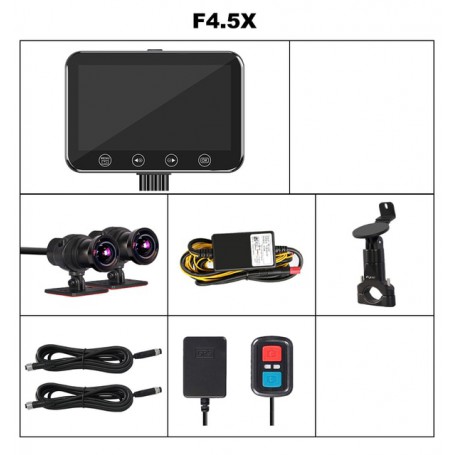

VSYS F4.5 4.5'' LCD Motorcycle DVR Moto Camera Recorder with TPMS Smart Gauge Dual 1080P SONY IMX307 Starvis WiFi Waterproof

The F4.5X/F4.5X Pro is a 2~3 channel full HD motorcycle dash cam with a 4.5'' large screen. You can easily check and record front, rear, or selfie view of your bike in real-time. Thanks to the use of the SONY 307 Starvis sensor, it captures every detail even when you're driving at night. And it adds real-time speed, location ,Trip meter and TPMS feature which allows you to monitor your bike's health at all times.

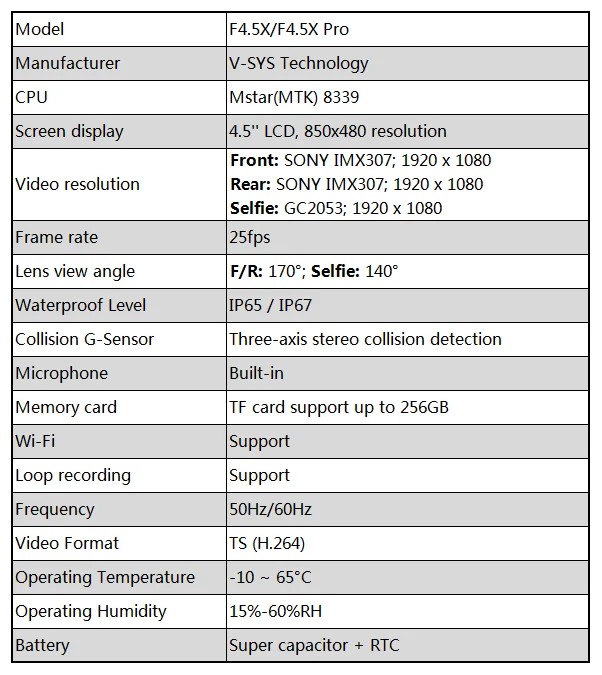

Specifications

Vlog Camera for Motorcycle (F4.5X Pro)

Drag Racing

Realistic Drag Racing mode built on F4.5 DVR!
Races in ''0-100 KMPH Acceleration Test '' mode, ''400M Time Trail'' mode, and ''600M Time Trail'' mode with your friends and club members!
With the high sensitivity GPS tracker, the real-time speed, distance, and timing will be accurately recorded in the DVR. It allows you to easily check the race record on the 4.5-inch HD screen (Provides up to 5 sets of historical information).
Sharpen your skills and become the best driver in your class!

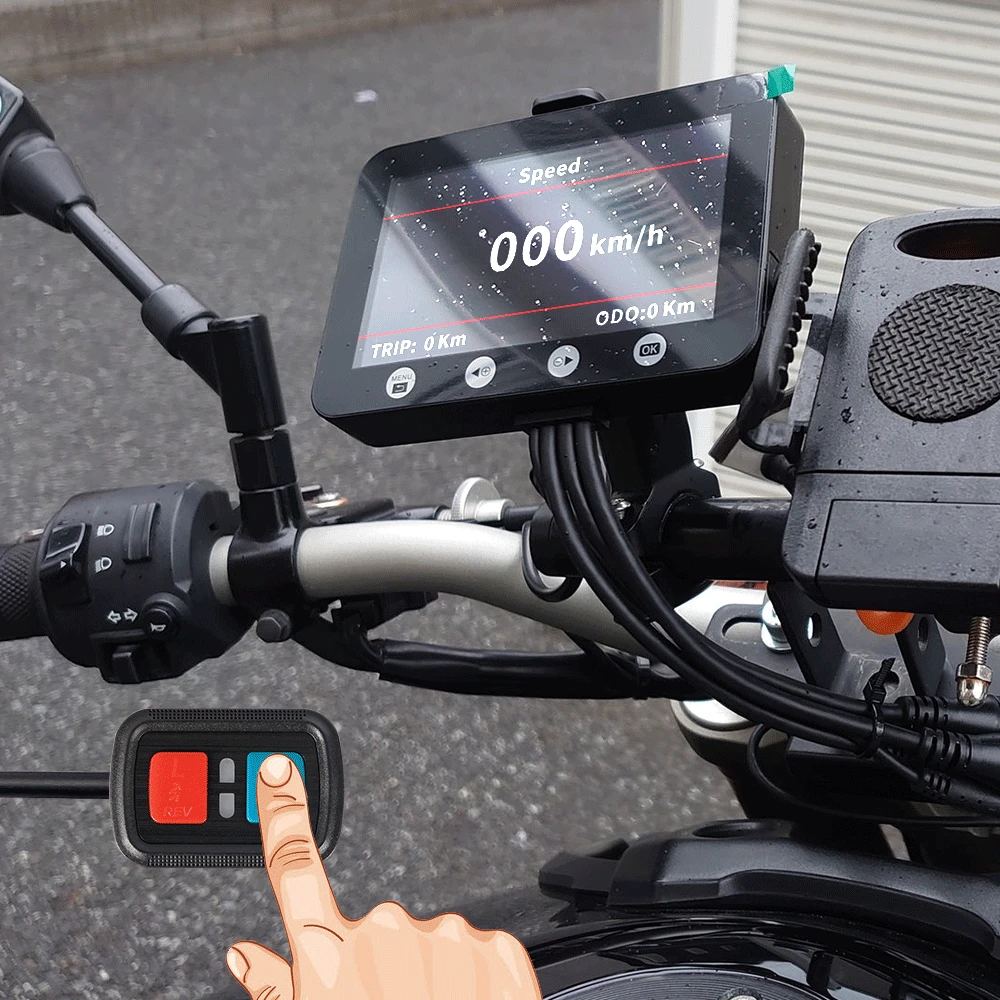

Smart Gauge / Smart Digital Meter

Smart Gauge mode provides insights on the speed, location, altitude, single driving time, and mileage (trip distance) when connecting with the dedicated GPS tracker. Additionally, it can also monitor and display the tire pressure and temperature when paired with the optional compatible sensors.

● The tire pressure and temperature monitoring feature are only available when you select the option with TPMS.
● You can also purchase the TPMS sensor separately a bit later to unlock the tire pressure and temperature monitoring function.

Tire Pressure Monitoring System (Optional)

The add-on TPMS notifies you on the 4.5 inch screen when your vehicle's tire pressure is low/high or temperature is high. By helping you maintain proper tire pressure and temprature, TPMS can increase your safety on the road by improving your vehicle's handling, decreasing tire wear, reducing braking distance and bettering fuel economy.

************************************************
High Pressure Alarm Valve: 3.1 Bar
Low Pressure Alarm Valve: 1.8 Bar
High Temprature Alarm Valve: 68 ℃

● The tire pressure and temperature monitoring feature is only available when you select the option with TPMS.

4.5'' LCD & Handlebar Mounting Bracket

Having a 4.5'' LCD display makes it very convenient to monitor the real-time recording, and playback the footage immediately. The VSYS F4.5 uses an 850x480 high-resolution LCD that offers a crisp and sharp picture.
High-quality aluminum alloy rotatable handlebar mount allows 360-degree rotation, freely adjust the main unit to any angle that suits your preference, providing you with ultimate flexibility in viewing the rear view of your bike.

● If you don't want the LCD screen is always on when you driving, you can choose to turn the screen off by the function 'Screen Saver' in the MENU setting.

Watch the Road Behind

The two cameras will work simultaneously to record in full 1080p HD, both camera footages displayed as either side by side or alternatively in full-screen mode on a 4.5-inch HD screen, allowing it to be used as a reversing camera.

● Double-clicking any button on the wired controller to switch the display directly to the rear camera.
● Short press the "down" button to select front, rear or side by side (default) view mode.

Mirror Image/ Reverse Image Setting

Mirror Image/ Reverse Image Setting for backup camera with the 'Mirror Image' Setting on, you can reverse the image of the rear camera so that the image on the screen matches that of your rear-view mirror. The orientation will match so that the driver doesn't get confused with two conflicting images.

● Only the image on the monitor will be displayed as the flip image(left/right) when you the 'Mirror Image' Setting on. The videos in the micro SD card is not mirror image.

Especially Designed for Bikers

2 channel separated cameras with each standard 2.0 meters extension cable for front and rear view recording. One on the front and one on the rear of your bike, which will record everything that happens in front of you and behind you at all times. Perfectly fit for motorcycles, scooters, cars, UTV, ATV and any other vehicles.

Hard-Wired Connection

It's hard-wired to the bike. The main unit is mounted to the handlebar (with attached handlebar mount) or under the seat. The separated small camera is fixed with double-sided foam tape and can be fastened with screws. It's easy for hidden installation without being noticed which is different from the helmet or action camera. Horizontal and vertical angles of the lens can be easily adjusted to obtain a better viewing angle.

Superb Image Quality & STARVIS Super Night Vision

VSYS F4.5X features Mstar 8339 CPU that records at 25 frames per second in 1920x1080 resolution. The built-in Sony IMX307 CMOS image sensor and 7-layer all-glass lens provides crisp, smooth and wide footage. Greatly enhances night vision at the low light environment, making your driving safer at night.

170° Super Wide Angle

This bike driving recorder employs 170° super wide angle lens. Ultra-wide field of view reduces the blind spots and captures more details, to reserve the real scene.

Built-in WiFi & Easy Video Management

Connect to the built-in Wi-Fi and open the 'WiFi Camera' app to seamlessly view, playback, configure, download, or share incredible HD video wirelessly on your mobile device. APP supports both iOS & Android systems.

Full Body Waterproof Protection

IP67 waterproof design for cameras; IP65 waterproof design for the main unit and other accessories. Whether it's rainy or dusty, it works steadily, recording every moment of your journey.

High/Low-Temperature Resistance

Premium components materials ensure VSYS dash cam can function in temperature from -10℃ - 65℃. This resistance means that you can continue using the VSYS P4.5 wherever you are. Whether in the hot desert or cold regions, keep recording.

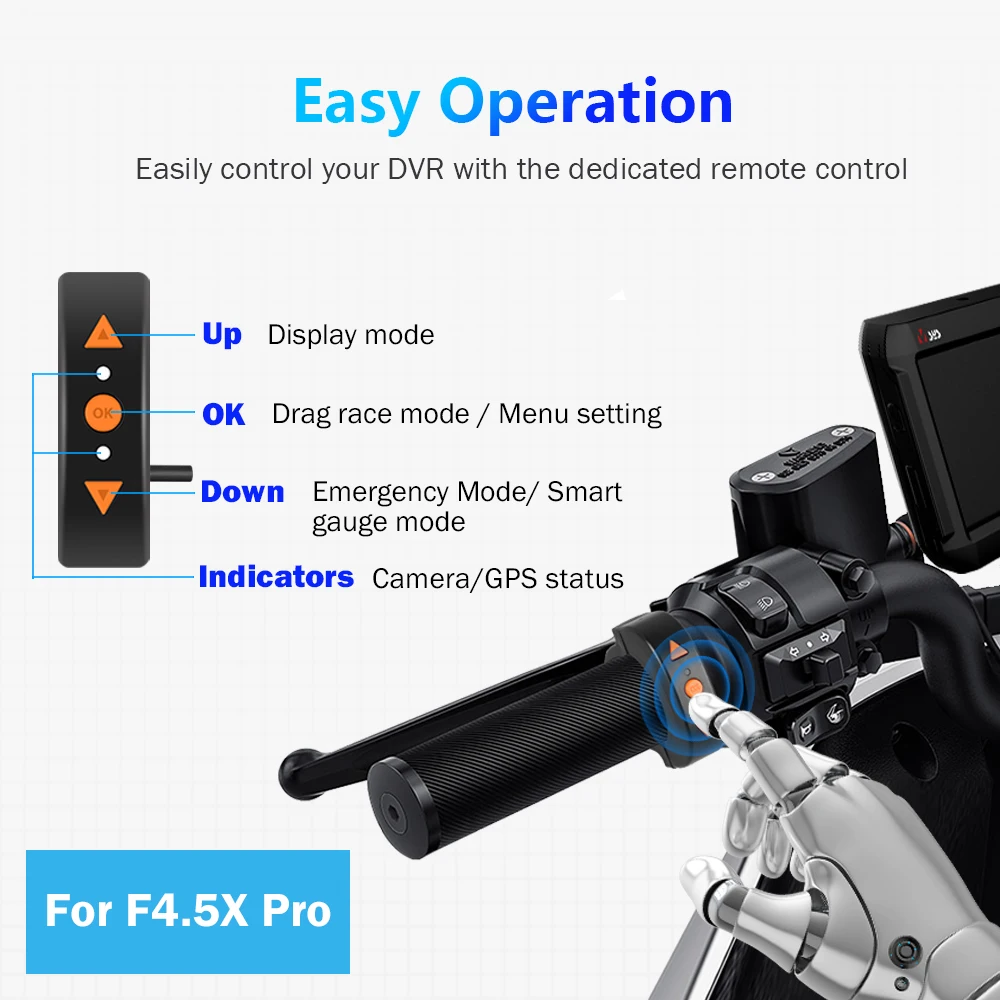

Waterproof Wired Controller

1) Check DVR status and GPS status from LED indicators.
2) Activate Manual Emergency Mode to snapshot and lock video files.
3) Enter the smart gauge mode.
4) Switch the display to the rear camera in full screen.

Track Your Travels

The GPS data(Speed and location) will be saved into each video file. You can easily track your travel through the app directly. And the app allows you to edit the video and share the best moments of your ride with your friends.

Uninterruptible Power Supply

Power through motorcycle's battery never need to be charged. No need to worry about charging problem at all.

Automatic Video Recording

Start automatically with the ignition and turns off once the bike is not being used.

Powered by Super Capacitor

P4.5 is powered by super capacitor instead of a lithium battery. In general, super capacitors are more reliable and offer longer lifespans. Compared to batteries, super capacitors will not expand and swell to ruin the device. It is particularly important if you live in an especially cold and hot location. The benefits outweigh those traditional battery-powered devices. It is for sure worth the improved durability and reliability.

Protect Video Evidence

The dash cam will automatically enter REC Mode after powered on, and it can automatically capture unexpected driving accidents and saves video footage of the collision. Your safety and legal rights are always under protection.
You can also press the emergency button of wired remote to manually activate emergency recording mode to lock the video file you want to lock.

● Video files recorded in emergency mode(G-sensor activation & manual activation) are protected from being overwritten.

Loop Recording

The most important thing about a dashboard camera is saving all of the critical footage for later viewing. While the memory card has limited capacity, we have designed the loop recording function to overwrite the oldest file continuously when the SD card is full, so that your device is constantly recording and you never lose the most recent footage.
