48MP 4K 1080P HDMI USB Video Microscope Camera 10 -130X Zoom C Mount Lens Ultra High Working Distance For Phone Repair Soldering

48MP 4K 60Fps HDMI USB

48 million pixel imported Panasonic CMOS image sensor;

Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;

HDMI 1080P 60 frame image output;

USB2.0 driver free output 1080P 30 frame image output;

4K video recording;

48 million photos, JPG format, photo size 4608x3456;

One-click freezing/thawing function;

48 megapixel photography and 1080P video recording;

Electronic zoom function;

Support manual/automatic exposure, exposure compensation value adjustment;

Support manual/automatic white balance, red, green, blue adjustable;

Provide 8 line drawing functions, line color, thickness, position adjustable;

Display/close center cross;

Support TF card storage, up to 64GB;

Support remote control operation, take photos without jitter image more clear;

Support Chinese and English menu language (default English);

Support shutdown setting parameters save;

Strong metal shell;

Camera specifications:

The sensor : 1/2.33 inch Panasonic 48 megapixel CMOS sensor

Pixel size : 1.335µm × 1.335µm

HDMI output : 1920*1080 60PFS

USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)

Camera interface : C/CS

Exposure : Automatic/manual

Exposure compensation : Support

White balance : Automatic/manual, RGB adjustable

Storage : Supports a maximum of 64GB

Input voltage : Dc 5v-12v

line : Supports 8 straight lines with adjustable color, thickness and position

Center line : Support

Menu language : English/Chinese

Remote control : Support remote control operation

Net weight : 250g

Rough weight : 450g

Product size : 66*66*49mm

Packing size : 145*130*70mm

1X-130X C-MOUNT Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

Working distance:100mm

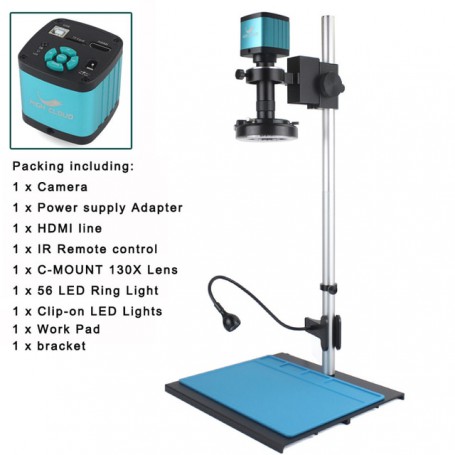

Packing List:

A set

1x Camera

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines

1 x LED ring light

1 x 130X zoom lens

1 x Microscope bracket

1 x work mat

1 x clip-on led light

B set

1 x LED ring light

1 x 130X zoom lens

1 x Microscope bracket

1 x work mat

1 x clip-on led light

C set

1x Camera

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x HDMI Lines

D set

1 x Microscope bracket

E set

1 x 130X zoom lens
