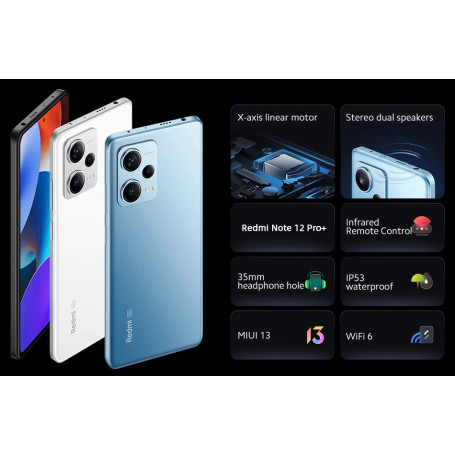

Xiaomi Redmi Note 12 Pro+ Plus 200MP Triple Camera Smartphone Fast Charge MTK Dimensity 1080 NFC

Overview

200 million pixel ultra-clear image
OLED flexible straight screen
120W fast charging + 5000mAh
3D glass body
Dimensity 1080 high energy efficiency experience core
3000mm² VC liquid cooling

* Note 12 Trend Edition: Customized based on the Redmi Note 12 Pro+ version
* Note 12 Explorer Edition: Customized based on the Redmi Note 12 Pro+ version, the differences are: 210W+4300mAh,The heat dissipation is a full phase change three-dimensional heat dissipation system, a black body, a "210W" custom silk screen printed on the back, and a weight of 207.5g.

Size and Weight

Length: 162.9mm
Width: 76mm
Thickness: 8.98mm
Weight: 208.4g (Note 12 Pro+ / Note 12 Trend Edition)
Weight: 207.5g (Note 12 Explorer Edition)

CPU

Dimensity 1080 high energy efficiency experience core
SoC process: TSMC 6nm process
CPU frequency: Octa-core processor, the highest frequency can reach 2.6GHz
GPU: Mali-G68
AI: APU 3.0

Screen Display

screen display
OLED flexible straight screen
Size: 6.67 inches
Resolution: 2400*1080
Contrast: 5,000,000:1
Dimming levels: 16000 levels
Global excitation brightness: 900 nit*
Display frame rate: 30/60/90/120Hz
Touch sampling rate: global 240Hz
*Global excitation brightness refers to the maximum brightness of the screen excited in a strong light environment
1920Hz High Frequency PWM Dimming｜DCI-P3｜HDR10+ | 10bit Color Depth｜Dolby Vision｜Sunshine Screen｜Eye Protection Mode

Camera

Rear 200-megapixel ultra-clear camera

200 million pixel ultra-clear main camera: 1/1.4″｜Support 4in1 1.12μm pixel｜Support 16in1 2.24μm pixel｜OIS optical image stabilization｜
7P lens｜f/1 .65 night scene large aperture
8 megapixel ultra-wide-angle lens: 119° FOV
2 million pixel macro lens

Front 16 million HD camera

Battery

Note 12 Pro+
5000mAh (typ)
Built-in lithium-ion polymer battery, non-removable
MTW multi-pole ear single cell
120W wired fast charge
The mobile phone supports PD2.0 / PD3.0 fast charging protocol
USB Type-C double-sided charging port
Standard 120W charger, compatible with PD charging protocol

Note 12 Explorer Edition
Equivalent 4300mAh (typ)
Built-in lithium-ion polymer battery, non-removable
MTW Multi-Ear Dual Cell
210W wired second charge
The phone supports QC3+ / PD2.0 / PD3.0 fast charging protocol
USB Type-C double-sided charging port
Standard 210W dual GaN charger, compatible with 220V voltage, 110V voltage

Network Frequency

5G Dual SIMFull Netcom 7.0
Support dual Nano-SIM card slot, the primary and secondary cards can be used for 5G network without limitation of operators ①
Support 5G / 4G / 3G / 2G ②
Support dual SIM VoLTE HD voice ③
Note ①: Whether to support 5G depends on the local operator network;
Note ②: TD-SCDMA system is not supported;
Note ③: VoLTE service, the actual usage depends on the operator's local network and service deployment;

Supported frequency bands
5G: n1/n3/n5/n8/n28A/n38/n41/n77/n78
Note: Actual network and frequency band usage depends on local operator deployment. n28A (Tx: 703-733MHz, Rx: 758-788MHz)
4G: FDD-LTE: B1/B3/B5/B8/B19
TDD-LTE: B34/B38/B39/B40/B41
Note: LTE B41 (2496-2690 194MHz);
3G: WCDMA: B1/B5/B6/B8/B19; CDMA EVDO: BC0
2G: GSM: B3/B5/B8; CDMA 1X: BC0

Data Connections

WLAN protocols: Wi-Fi 6, Wi-Fi 5, Wi-Fi 4 and 802.11a/b/g
WLAN frequency: 2.4G WiFi | 5G WiFi
Supports 2x2 MIMO, WiFi Direct, Miracast
Bluetooth Bluetooth 5.2
Support SBC/AAC/LDAC/LHDC

Packing List

Mobile phone host｜Power adapter｜USB Type-C data cable｜Mobile phone case｜Factory film (covered on the screen)｜Pin｜
Instructions (including three packs of certificates)

Note 12 Trend Edition
Mobile phone host｜Power adapter｜USB Type-C data cable｜custom mobile phone case｜factory film (covered on the screen)｜pins｜
Instruction Manual (including Three Guarantees Certificate)｜Custom Stickers

Note 12 Explorer Edition
Mobile phone host｜Dual GaN power adapters｜210W dedicated USB Type-C data cable｜Mobile phone protective case｜Factory film (covered on the screen)｜Pins｜Instructions (including three guarantee certificates)
