22 inch Smart Touch Panel Bathroom Magic Mirror Touchscreen LED Television Integrated WiFi Hidden TV Mirror 2023
zoom_out_map
chevron_left chevron_right

22 inch Smart Touch Panel Bathroom Magic Mirror Touchscreen LED Television Integrated WiFi Hidden TV Mirror 2023

22 inch Smart Touch Panel Bathroom Magic Mirror Touchscreen LED Television Integrated WiFi Hidden TV Mirror 2023

  • EU Ship
  • CN or RU Ship
EUR€ 2,699.00 (tax incl.) EUR€ 2,699.00 (tax excl.)
Tax included
check In-stock
【FULL TOUCH PANEL MIRROR】A touch Screen Mirror is always Up-to-Date, it presents TV programs when turned on and a mirror when turned off. The TV is IP66 waterproof and it is luxury installed in bathroom, hotel and kitchens. There are 7 touch buttons in front of the TV of HUAYU model, which is more convenience for using.

【EXTREME WATERPROOF】The TV integrated waterproof speakers are placed in the two sides of the TV, so that the barrier is much smaller after the TV is embedded into the wall. IP43 Waterproof interface: HDMI, USB, Audio Our, TV, LAN, integrated WiFi

【SMART FULL HD LED TV】Smart digital TV with Android system, have access to channels without TV box. No Aerial Required! FULL HD ready TV, 16:9 screen, resolution:1920x1080, provides high quality and vivid pictures. For more specification, please refer to below product description.

【DIMENSION&INSTALLATION】-Unit Size: 501W x 316H x 43Dmm /19.7"W x 12.44"H x 1.69"D , recess dimensions for In-wall: 454.5W x 277.5H x 22.5Dmm/17.89"W x 10.92"H x 0.88"D. Embedded bracket for in-wall and wall bracket for on-wall are included(provide installation instruction).

【SHIPPING&WARRANTY】-Usually it takes 1-3 working days to ship out the TV after we have got the paid order. The TV shipping times around 5-20 days.

Our TV has 2 years warranty counts on the date  you sign for the parcel.

Poland Ship or Russia Ship:

We have warehouse in Poland and Russia, so that we are able ship the TVs to Russia and Most EU countries (Some cities are island or other remote area not available. The quantity is limited. If the inventory is 0, it means it is sold out)The shipping time on the way is 3-7 working days depending on the destinations and the shipping ways.


If you love movies, shows, sports and gaming, but you want to enjoy a bath, then the Souria waterproof smart mirror TV is perfect for presenting your favorite entertainment in a whole new way. Featuring 1080P High Definition resolution, the high-end 2 ways mirror packs incredible detail into a mirror display that boosts contrast and color. The Soulaca TV Apps Store serves up a massive popular premium Apps. Simple to set-up and easy-to-use, connect to the internet, activate, and start streaming.
Design
Front Panel Finish                                  Mirror
Front Panel                                             Glass
Cover                                                      Metal
System
Android System                                         11.0 (ATSC), 9.0(DVB)
Bluetooth (In Android)                                         Yes
Freeview (Digital) TV                             Yes
Freeview (Digital) Radio                                       Yes

Touchscreen                                                          Yes

DTV System Options                                  ATSC/DVB-T/DVB-T2/DVB-C
RAM                                                        1G
Flash                                                                     8G
WiFi                                                        Yes
Display
Display Type                                           LED
Aspect Ratio                                           16:9
Contrast Ratio                                        3000:1
Brightness (cd/m²)                                 250
Resolution(pixels)                                  1920 x 1080
Display Colors                                        16.7M
View Angle (°H/V)                                  178/178
Audio
Speakers                                                 8Ω5W x 2
Ports and Connectors
TV Input                                                       Yes
HDMI-compatible                                         Yes
USB Input                                                  V2.0 x 2
Earphone Audio Output                                Yes
Optical/Digital Audio Output                        Yes
Internet LAN RJ45                                          Yes
Operating Environment
Working Temperature                             -10°C ~ +50°C
Working Humidity                                   10%-90%
Installation
Recess Dimensions for In-wall(mm)         454.5W x 277.5H x 22.5Dmm/17.89"W x 10.92"H x 0.88"D.
VESA Dimensions for On-wall(mm)          100W x 100H/ 3.9" x 3.9"
Power
Main Power:                                             12V DC(DVB), 100-240V AC (ATSC)
Power Consumption:                                48W
Standby Consumption(W):                      <1W

Dimensions and Weight
Unit Size (mm) (W x H x D)                       501W x 316H x 43Dmm /19.7"W x 12.44"H x 1.69"D
Packing Size (mm) (W x H x D)                 575 x 410 x 120 (22-5/8”x16-1/8”x4-3/4”)
Unit Weight(kg)                                         5
Gross Weight(kg)                                      7.3


PRODUCT DETAILS:

A smart mirror, also commonly known as a magic mirror, is a transparent mirror that displays information. The display screen, which is hidden by the reflection of the glass, is a TV. Using the software downloaded from the internet, smart mirror can provide up to date information on the weather, calendar events, news, social media and more.

The Ports of DVB system countries:


The Ports of ATSC system countries:

Touch Keys Design:

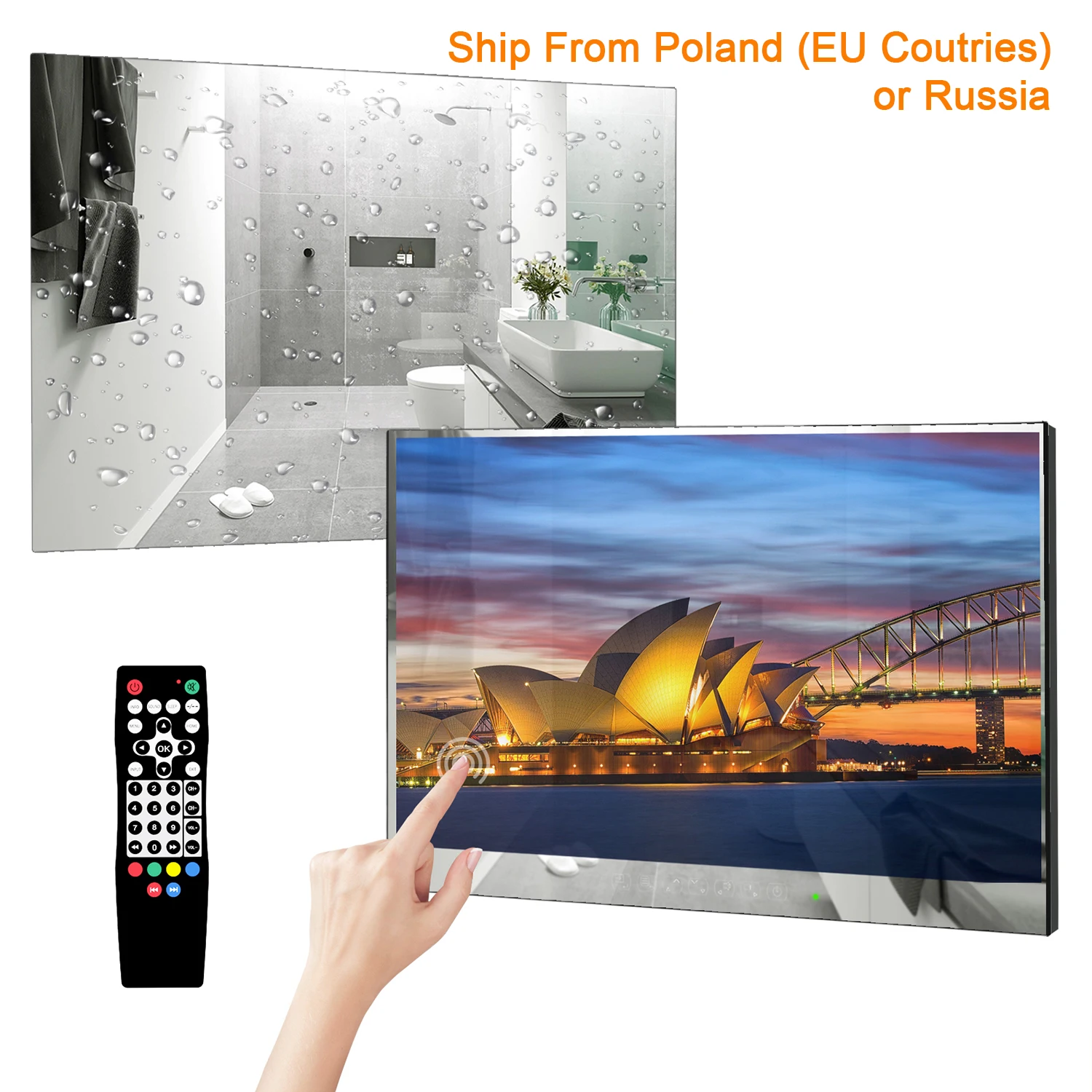

It's a TV when Turned OnIt's a Mirror when Turned Off:

INSTALLATION:

3 optional methods provided to accommodate TV installations

Option 1: In-wall with Embedded Bracket

Option 2: On-wall with Embedded Bracket

Option 3: On-wall with VESA Bracket




Option 1: In-wall with Embedded Bracket

  1. Create an opening within the chosen area of the wall according to the Embedded Bracket outlines. Leave enough space for the cables and adapter.

  2. Set up power and signal circuit and the outlet.

  3. Place the Embedded Bracket into the recess and use the pilot holes to drill into the wall.

  4. Place the raw plugs into the holes that have been drilled and screw the Embedded Bracket into position.

  5. Organize the cables and offer the TV up to the Embedded Bracket that is fixed within the wall.

  6. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.

Option 2: On-wall with Embedded Bracket

  1. Drill holes within the chosen area of the wall according to the Embedded Bracket outlines.

  2. Place the raw plugs into the holes and screw the Embedded Bracket into position so it is attached to the wall.

  3. Set up power and signal circuit and the outlet.

  4. Simply offer the TV up to the Embedded Bracket that is fixed on the wall.

  5. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.



Option 3: On-wall with VESA Bracket (Not Included)

  1. Drill holes within the chosen area of the wall according to the On-wall VESA Bracket dimensions.

  2. Place the raw plugs into the holes and screw the On-wall Bracket into position so it is attached to the wall.

  3. Place the TV screen down on a soft, flat surface, and locate the threaded mounting points that are located on the back of the TV.

  4. Screw the 2 rails on the back of the TV.

  5. Set up power and signal circuit and the outlet.

  6. Simply offer the TV up to the On-wall Bracket that is fixed on the wall. Hook the 2 rails over the On-wall Bracket.

ACCESSORIES:

1. Embedded Bracket

2. Power Adapter (Input: AC 100V – 240V, Output: DC 12V, 5A)

3. Waterproof Remote Control (Without Button Cell Battery Supplied, IP68 Waterproof)

4. User Manual

5. Installation Kit (6 sets)

Note: Without Button cell battery supplied in the packaging for the remote control. Battery Model Needed: CR2032  3V.

PACKAGING:


Note: The power cord is supplied in the packaging according to the destination standard.

Smart TV d
Brand Name
Souria
Origin
Mainland China
Model Number
HY220FST-M1
Size
W501 x H316 x D43 mm
Interface Type
LAN,USB,Digital Audio,Bluetooth/USB,Wi-Fi,Headphones 3.5 mm,HDMI-Compatible
Weight
4.3
Display Size
22 inches
resolution
HD1080(1920*1080)
WIFI
Supported
USB
USB2.0x2
Touchscreen
Yes
Refresh rate
Ntsc(60Hz)
Backlight Type
Direct LED
Curve TV
No
Receiving System
PAL,NTSC,Secam,DVB-T2,DVB-C,DVB-T
SD Card Support
No
Network Support
Yes
3D Image Support
No
Aspect Ratio
169
Standard VESA
100x100
Screen Technology
LED
Weight(With Package)
7
Size(With Package)
W565 xH390 xD140 mm
HDMI-Compatible Interface Number
1
Supported Formats
JPEG
DTV System
ATSC/DVB-T/DVB-T2/DVB-C (According to your country)
Analogue Tuner
Yes
Android TV
Android 11.0 (ATSC) or 9.0 (DVB)
Ports and Connectors
TV, HDMI-compatible, USB*2, Audio Output,LAN(RJ45)
Shipping Origin
China, Poland(EU), Russia
Touch Keys
Yes
