22 inches Touchscreen Smart Mirror LED Television for Bathroom Waterproof WiFi Built in Shower TV Hotel 2022 Model
zoom_out_map
chevron_left chevron_right

22 inches Touchscreen Smart Mirror LED Television for Bathroom Waterproof WiFi Built in Shower TV Hotel 2022 Model

 22 inches Touchscreen Smart Mirror LED Television for Bathroom Waterproof WiFi Built in Shower TV Hotel 2022 Model

  • EU Ship
  • CN or RU Ship
EUR€ 2,641.00 (tax incl.) EUR€ 2,641.00 (tax excl.)
Tax included
check In-stock

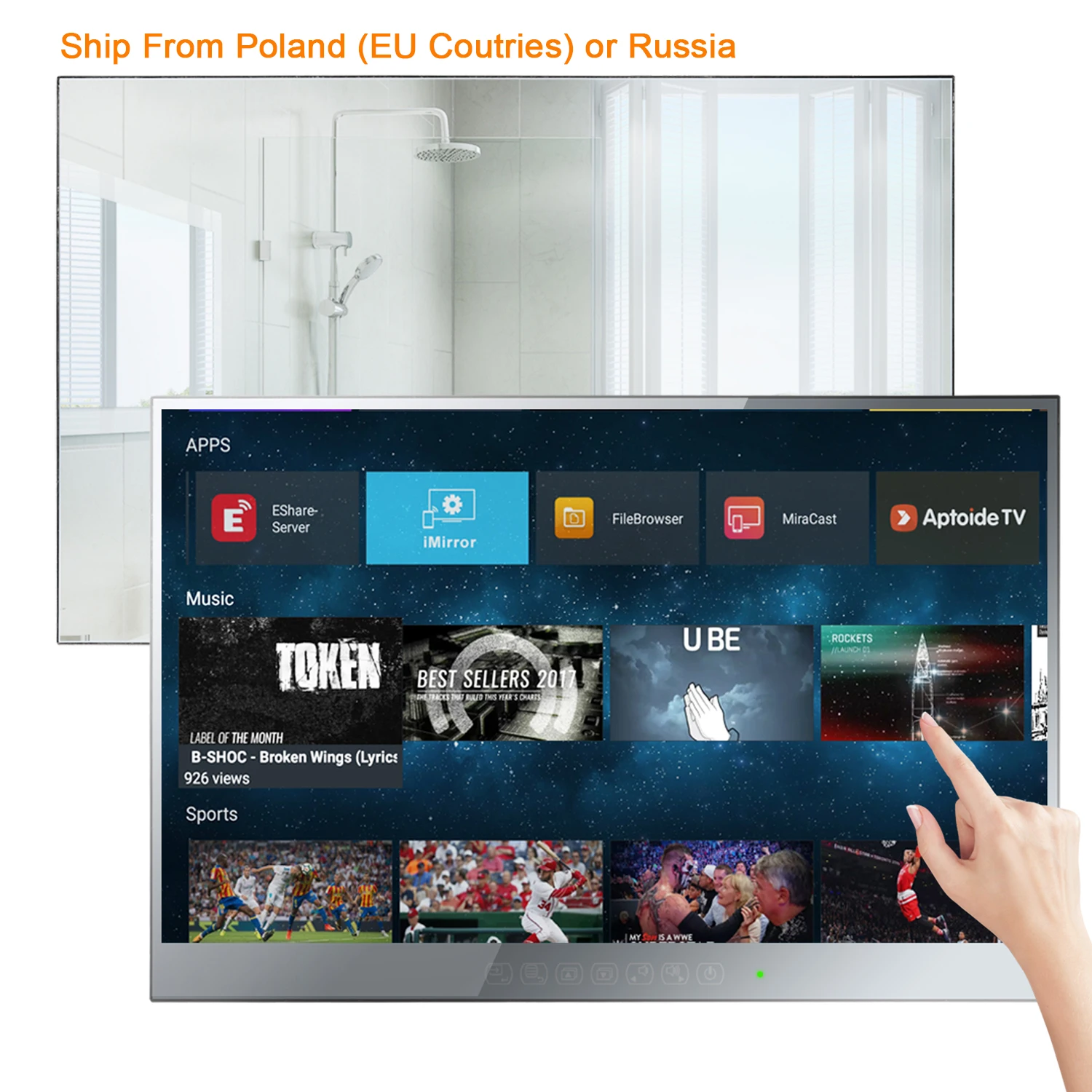

【UP-TO-DATE MIRROR】A touch Screen Mirror is always Up-to-Date, it presents TV programs when turned on and a mirror when turned off. The TV is IP66 waterproof and it is luxury installed in bathroom, hotel and kitchens. There are 7 touch buttons in front of the TV of HUAYU model, which is more convenience for using.

【EXTREME WATERPROOF】The TV integrated waterproof speakers are placed in the two sides of the TV, so that the barrier is much smaller after the TV is embedded into the wall. IP43 Waterproof interface: HDMI, USB, Audio Our, TV, LAN, integrated WiFi

【SMART FULL HD LED TV】Smart digital TV with Android 11.0 / 9.0 system, have access to channels without TV box. No Aerial Required! FULL HD ready TV, 16:9 screen, resolution:1920x1080, provides high quality and vivid pictures. For more specification, please refer to below product description.

【DIMENSION&INSTALLATION】-Unit Size: 501W x 316H x 43Dmm /19.7"W x 12.44"H x 1.69"D , recess dimensions for In-wall: 454.5W x 277.5H x 22.5Dmm/17.89"W x 10.92"H x 0.88"D. Embedded bracket for in-wall and wall bracket for on-wall are included(provide installation instruction).

【SHIPPING&WARRANTY】-Usually it takes 1-3 working days to ship out the TV after we have got the paid order. The TV shipping times around 5-20 days.

Our TV has 2 years warranty counts on the date  you sign for the parcel.

Poland Ship or Russia Ship:

We have warehouse in Poland and Russia, so that we are able ship the TVs to Russia and Most EU countries (Some cities are island or other remote area not available. The quantity is limited. If the inventory is 0, it means it is sold out)The shipping time on the way is 3-7 working days depending on the destinations and the shipping ways.




It's a super thin frameless waterproof touch panel mirror bathroom TV, which is also a full touchscreen 22 inch smart TV, makes you feel more enjoyable in front of your bathtub or shower room. With Android ystem integrated, it supports YouTube, Google browser, online TV etc.Rated IP66, you can place the TV just about anywhere you want without worry. This includes watching your favorite movie in your bath, or watching a cooking show while cooking in the kitchen.
Design
Front Panel Finish:  Mirror
Front Panel:  Glass
Cover:  Metal
System
Android System:  11.0 (ATSC), 9.0(DVB)
Bluetooth (In Android): Yes
Freeview (Digital) TV: Yes
Freeview (Digital) Radio: Yes

Touchscreen: Yes

DTV System Options: ATSC/DVB-T/DVB-T2/DVB-C
WiFi:  Yes
Display
Display Type:  LED
Aspect Ratio:  16:9
Contrast Ratio:  3000:1
Brightness (cd/m²) :  250
Resolution(pixels):  1920 x 1080
Display Colors:  16.7M
View Angle (°H/V):  178/178
Audio
Speakers:  8Ω5W x 2
Ports and Connectors
TV Input :  Yes
USB Input:  V2.0 x 2
Earphone Audio Output:  Yes
Optical/Digital Audio Output:  Yes
Internet (LAN RJ45):  Yes
HDMI-compatible:  Yes
Operating Environment
Working Temperature:  -10°C ~ +50°C
Working Humidity:  10%-90%
Installation
Recess Dimensions for In-wall(mm):  454.5W x 277.5H x 22.5Dmm/17.89"W x 10.92"H x 0.88"D.
VESA Dimensions for On-wall(mm):  100W x 100H/ 3.9" x 3.9"
Power
Main Power:  12V DC(DVB), 100-240V AC (ATSC)
Power Consumption:  48W
Standby Consumption(W):  <1W

Dimensions and Weight
Unit Size (mm) (W x H x D) :  501W x 316H x 43Dmm /19.7"W x 12.44"H x 1.69"D
Packing Size (mm) (W x H x D):  575 x 410 x 120 (22-5/8”x16-1/8”x4-3/4”)
Unit Weight(kg) :  5
Gross Weight(kg):  8


PRODUCT DETAILS:

A smart mirror, also commonly known as a magic mirror, is a transparent mirror that displays information. The display screen, which is hidden by the reflection of the glass, is a TV. Using the software downloaded from the internet, smart mirror can provide up to date information on the weather, calendar events, news, social media and more.

The Ports of DVB system countries:


The Ports of ATSC system countries:

Touch Keys Design:

It's a TV when Turned OnIt's a Mirror when Turned Off:

INSTALLATION:

3 optional methods provided to accommodate TV installations

Option 1: In-wall with Embedded Bracket

Option 2: On-wall with Embedded Bracket

Option 3: On-wall with VESA Bracket




Option 1: In-wall with Embedded Bracket

  1. Create an opening within the chosen area of the wall according to the Embedded Bracket outlines. Leave enough space for the cables and adapter.

  2. Set up power and signal circuit and the outlet.

  3. Place the Embedded Bracket into the recess and use the pilot holes to drill into the wall.

  4. Place the raw plugs into the holes that have been drilled and screw the Embedded Bracket into position.

  5. Organize the cables and offer the TV up to the Embedded Bracket that is fixed within the wall.

  6. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.

Option 2: On-wall with Embedded Bracket

  1. Drill holes within the chosen area of the wall according to the Embedded Bracket outlines.

  2. Place the raw plugs into the holes and screw the Embedded Bracket into position so it is attached to the wall.

  3. Set up power and signal circuit and the outlet.

  4. Simply offer the TV up to the Embedded Bracket that is fixed on the wall.

  5. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.



Option 3: On-wall with VESA Bracket (Not Included)

  1. Drill holes within the chosen area of the wall according to the On-wall VESA Bracket dimensions.

  2. Place the raw plugs into the holes and screw the On-wall Bracket into position so it is attached to the wall.

  3. Place the TV screen down on a soft, flat surface, and locate the threaded mounting points that are located on the back of the TV.

  4. Screw the 2 rails on the back of the TV.

  5. Set up power and signal circuit and the outlet.

  6. Simply offer the TV up to the On-wall Bracket that is fixed on the wall. Hook the 2 rails over the On-wall Bracket.

ACCESSORIES:

1. Embedded Bracket

2. Power Adapter (Input: AC 100V – 240V, Output: DC 12V, 5A)

3. Waterproof Remote Control (Without Button Cell Battery Supplied, IP68 Waterproof)

4. User Manual

5. Installation Kit (6 sets)

Note: Without Button cell battery supplied in the packaging for the remote control. Battery Model Needed: CR2032  3V.

PACKAGING:


Note: The power cord is supplied in the packaging according to the destination standard.

FAQ

Q: What colors are available?
A: There are 3 colors available for the front panel: white, black and silver mirror finish.
Q: What's a mirror TV?
A: It’s a mirror when switched off and a television when switched on. It adopts the vanishing glass mirror as the TV panel.
Q: Can the TV work in our country?
A: Yes. Different countries are with different tuner system, so we set the system well before we ship the TVs.
Q: Does the TV support digital TV in our country?
A: Yes. The TV supports ATSC which is the digital TV system in USA and Canada. Also it supports DVB-T which is the digital TV system of Australia, UK, Germany, France, The Netherlands, Belgium, Spain, Ireland, Greece, Italy, Norway, Sweden, Switzerland and Russia and other Europe countries.
Q: Is the waterproof remote control included ?
A: Yes, a IP68 waterproof remote control included.
Q: What's the lead time?
A: 3~5 working Days upon receipt of the payment.
Q: What courier will be used for the delivery? And how long will the delivery take?
A: DHL / FedEx / UPS, it takes 2~7 days to get to the destination.
Q: How long is the warranty?
A: We offer 2 years warranty.
Q: Why can't I just install a regular television in my bathroom?
A: A regular television is designed for use in dry areas, such as your living room or bedroom. They are not waterproof. The rear of the television is vented to allow for cooling, however, these vents will also allow moisture and condensation to accumulate inside the television. This can be extremely hazardous, with risks to the television shorting and potentially causing an electrical malfunction or fire.
The waterproof TV is a completely sealed design, engineered for use in wet areas. It is rated IP65 or higher and can withstand not only moisture, but also water from any direction.
Q: How easy are the products to install?
A: This depends on the television models and the installation method you are interested in.
For the models that are designed to be installed and recessed into your wall. It therefore requires a cavity to be cut into your wall, with size of cavity depend on the size of television you purchase. It is recommended that power and input cables are made available adjacent to the cavity opening inside the cavity. This will give you a seamless looking installation.
The on-wall mount method use mounting hardware and are therefore relatively simple to install.
Q: Does the TV come with everything I need to install, power and control?
A: All of our Bathroom TVs come complete with relevant bracket and instructions (for installation), and accessories to power and control (power adapter and remote control).
Q: Can you install the bathroom TVs at the end of your bath or within a shower area?
A: All our bathroom TVs conform to IP65 or IP66 standard, they can be installed at the end of the bath, of which is the most popular installation location.
Q: Do you deliver worldwide?
A: Absolutely – we can ship all over the world, but delivery times do vary.
Q: What voltage is required to power the TV?
A: To ensure that our waterproof TVs are safe for use in a wet environment, most of the models come with a 12V power supply. Just few models come with AC power supply.
Q: Can I connect external speakers?
A: It depends on the models. For the models with the audio-out, they allow you to use either the internal speakers or use the audio-out facility to connect with external speakers of your choice. It is important to note that you can only use either the internal or external speakers and not in conjunction with one another. For the models with Bluetooth, you can just connect it to your Bluetooth speakers.
Q: Are the speakers waterproof?
A: Yes. The speakers are waterproof. They are located inside the TV and with waterproof treated.
Q: Why don't you supply the button cell battery for the remote control?
A: This is because of the air freight control for safety reason.

smart tv d
Brand Name
Souria
Origin
Mainland China
Model Number
HY220FST-M1
Size
W501 x H316 x D43 mm
Interface Type
LAN,USB,Digital Audio,Bluetooth/USB,Wi-Fi,Headphones 3.5 mm,HDMI-Compatible
Weight
4.3
Display Size
22 inches
resolution
HD1080(1920*1080)
WIFI
Supported
Warranty
2 Years
USB
USB2.0x2
Touchscreen
Yes
Refresh rate
Ntsc(60Hz)
Backlight Type
Direct LED
Curve TV
No
Receiving System
PAL,NTSC,Secam,DVB-T2,DVB-C,DVB-T
SD Card Support
No
Network Support
Yes
3D Image Support
No
Aspect Ratio
169
Standard VESA
100x100
Screen Technology
LED
Weight(With Package)
7
Size(With Package)
W565 xH390 xD140 mm
HDMI-Compatible Interface Number
1
Supported Formats
JPEG
DTV System
ATSC/DVB-T/DVB-T2/DVB-C (According to your country)
Analogue Tuner
Yes
Android TV
Android 11.0 (ATSC) or 9.0 (DVB)
Ports and Connectors
TV, H.D.M.I, USB*2, Audio Output,LAN(RJ45)
Shipping Origin
China, Poland(EU), Russia
Touch Keys
Yes
