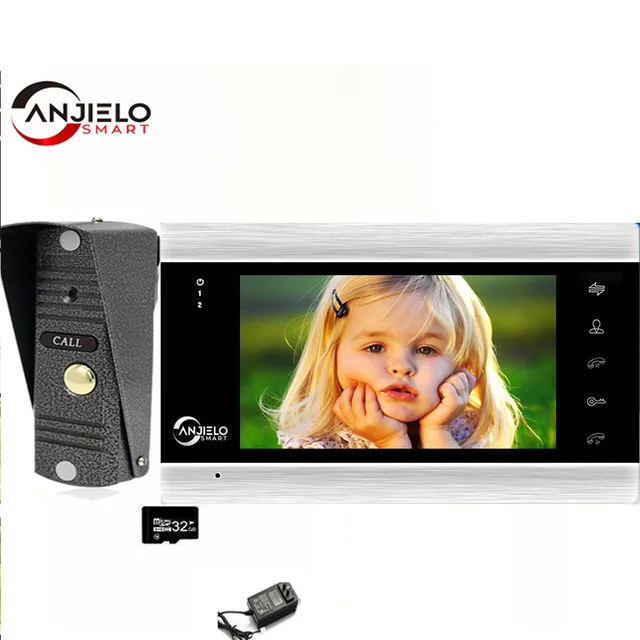

7 Inch Video Intercom Surveillance Camera Security Protection Interfone Residencial Night Vision For Apartment
zoom_out_map
chevron_left chevron_right

7 Inch Video Intercom Surveillance Camera Security Protection Interfone Residencial Night Vision For Apartment

t 7 Inch Video Intercom Surveillance Camera Security Protection Interfone Residencial Night Vision For

  • 201-84706B US
  • 201-84706B EU
  • 201-84706 EU
EUR€ 315.00 (tax incl.) EUR€ 315.00 (tax excl.)
Tax included
check In-stock

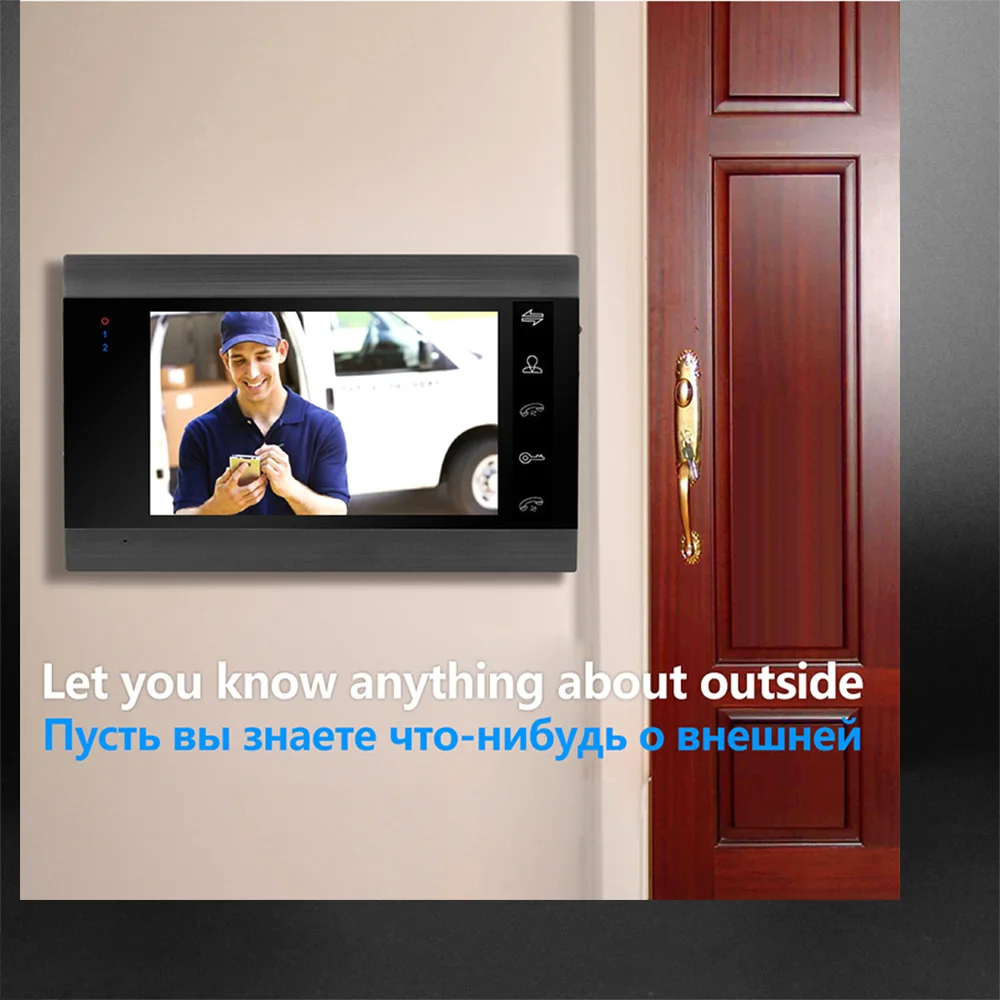

7" Wired Video Door Phone System, Visitor Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.Wired Video Intercom M706 Series , Support Motion Detect Record

Provide English version / Russian Version,If you need built-in power monitor ,welcome to contact me.

1.Motion sensor detect record videos
2.Dual-way Intercom, call transfer among monitors
3.Monitoring outside without pressing doorbell call button
4.6 Languages: English / русский / Español / Le français / عربى / Japanese
5.Color, Brightness,Ringtone and Volume Adjustable
6.Support analog camera connected, electronic lock connected
7.Support images / videos playback, support external maximum 32GB memory card
8.Doorbell camera / CCTV Camera preview
9.IR night vision
10.The intercoms will automatically turn off the screen after stopping the operation for 1 minute to save electricity!

Two different power supply for the monitor

Built-in power and external power adapter, please leave messages tell us about your choice.

M706 Series - Product Specs :

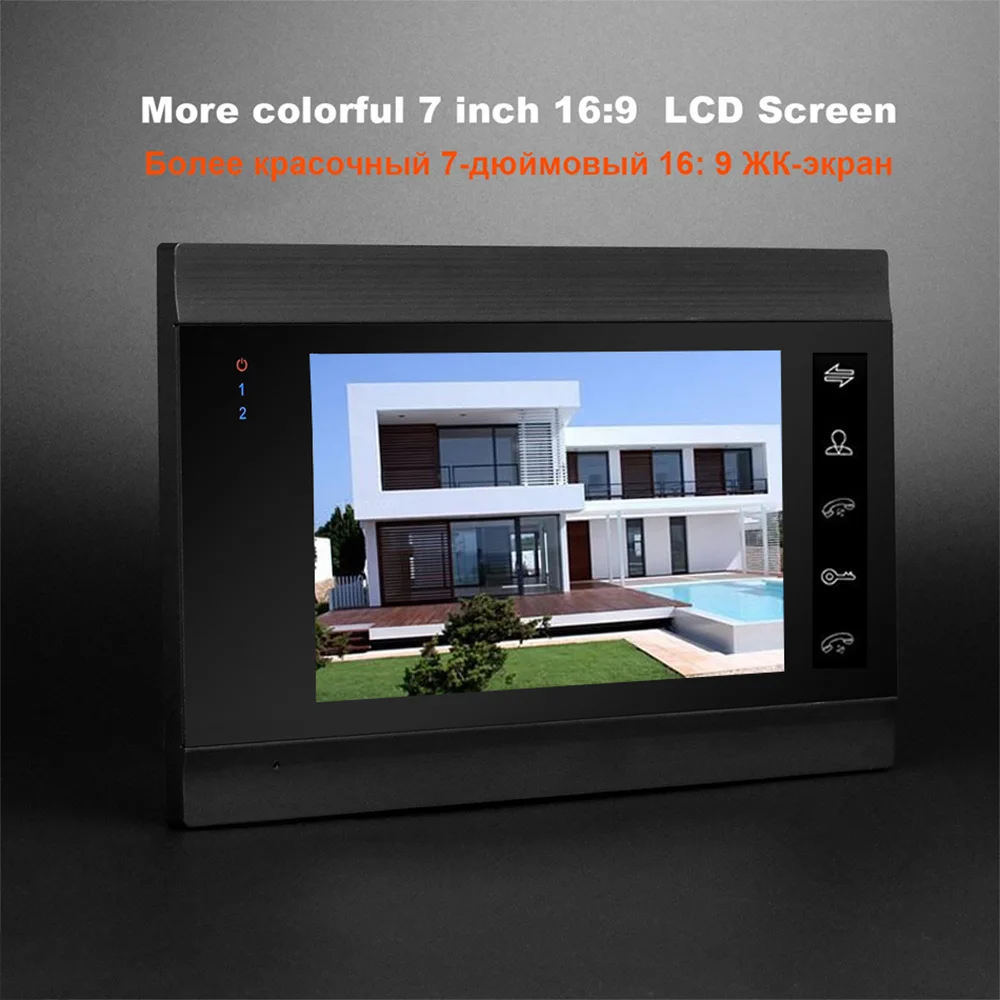

Monitor 7" wide color HD TFT LCD ,16:9 Display

Resolution 800X480

Memory Built-in memory can save 80 pictures, support external max. 32GB SD card

Intercom mode Hands-free dual-way communication

Delay calling time 120s

Keypad touch sensor button

Power input External power DC12V

Power Consumption Standby:1W; Working:5W

Material Acrylic Wire Drawing Panel

Recording picture:jpeg format;video:avi format

Operation Temp. -10degc +60degc

Installation Surface mount

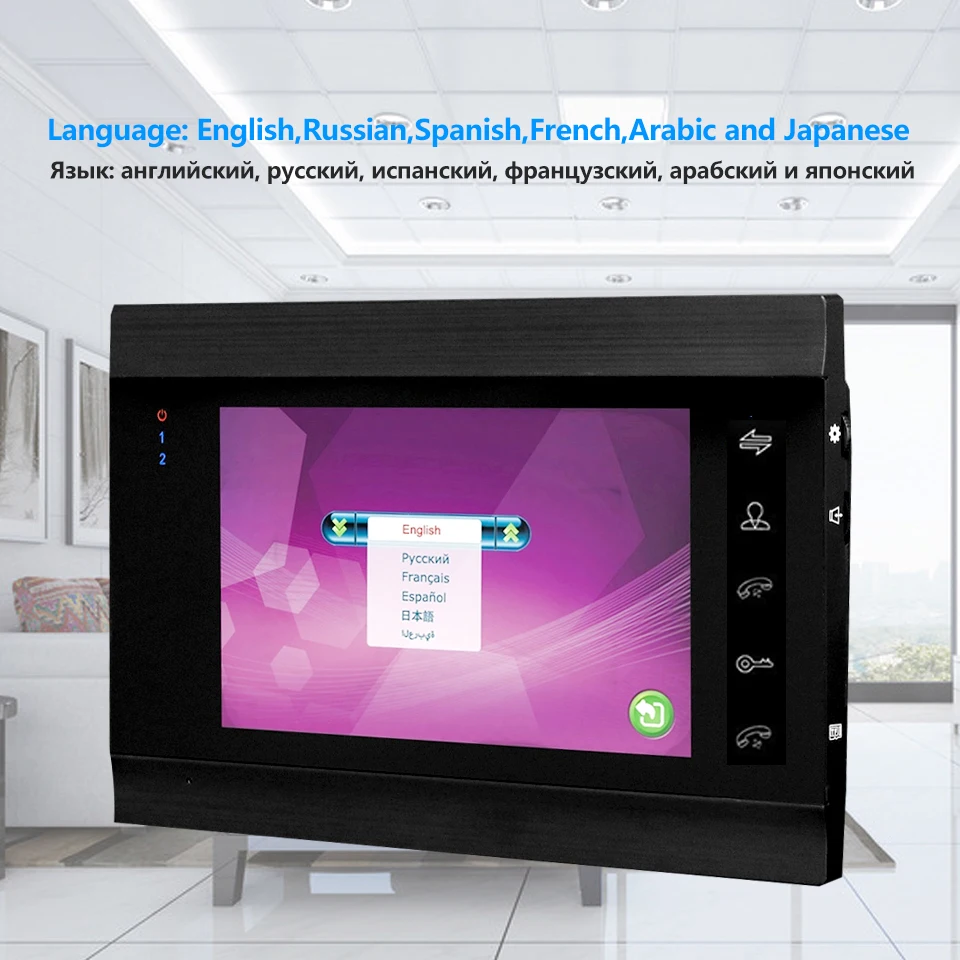

Multi-languages

The System Supports Six Different  Languages: English, Russian, French,Arabic, Spanish, Japanese.

Motion Detection Recording Videos to Memory Card

support monitoring outside without pressing call button

Support 32GB External Memory Card

Record Function

The monitor support Picture or Video Record when someone is calling.You could check who was visit.


Motion Detection Record

When the movement is detected,the monitor will record from Doorbell or Camera.It is detemined by which channel is triggered firstly.When the motion detection is on,you need to turn off the digital frame.

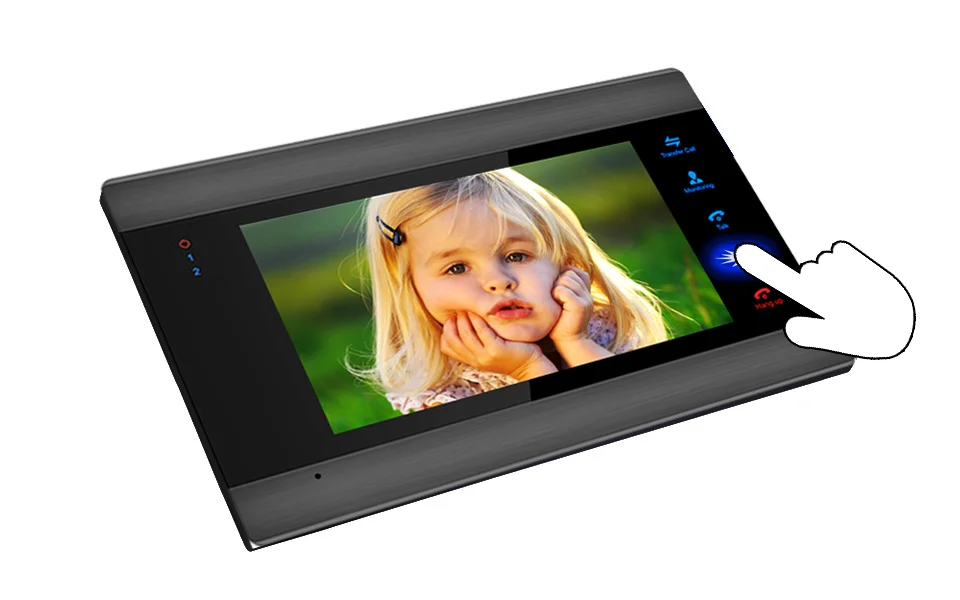

Touch Button,Acrylic Wire Drawing Panel

Indoor Monitor Is Made Of Acrylic Wire Drawing Panel And TFT Display ,Very Elegant Design ,It Adopts Advanced Touch Technology .With Sensitive Blue And Red Light.

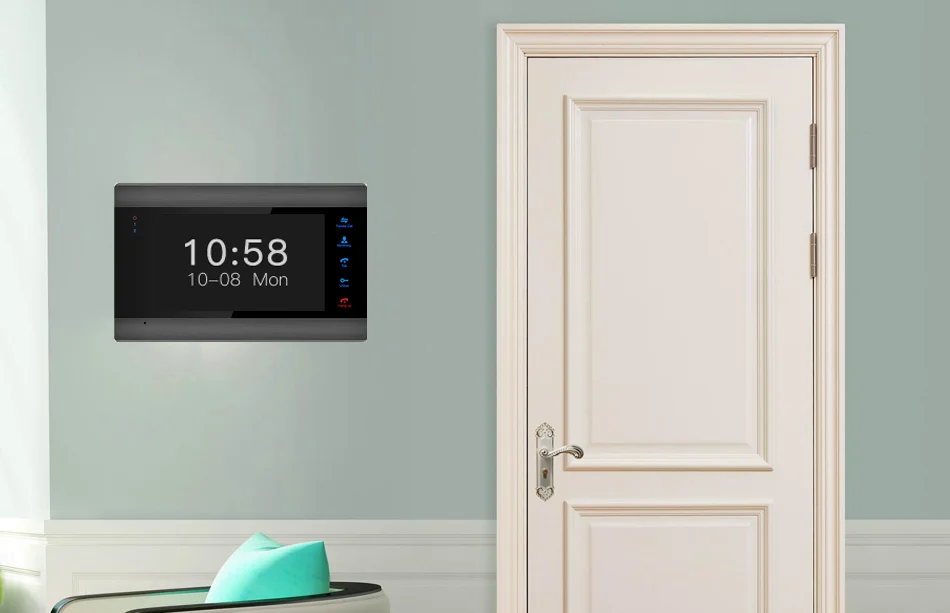

Clock Mode

The latest software is the monitor standby time.
If you not operated the monitor for 1 minute and the time will not displayed at the monitor.
It can protect the life of the screen.



1200TVL Outdoor Waterproof Doorbell

Camera sensor 1/4" CMOS , 1200TV-Line
Lens Angle 78 degree
Night Vision IR light
Electronic lock support
Power Consumption 200mA Max.
Material aluminium alloy panel
Waterproof IP65
Operation Temp. -40degc +60degc
Installation Wall mounted

1200TVL Resolution Camera, View More Clearly

1200TVL High Resolution HD CMOS, See Sharper And More Details Than 800TVL/600TVL.

IP65 Waterproof, Anti-thunderstorm Design

The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.

IR LED Offset Lighting Can Obtain Better Evening Viewing

It Helps You Identify The Visitors Even In The Dark Night.

1200TVL Security Camera
Analog Camera Included(power adapter not included, if you need, contact seller to buy)

Metal case deaign, waterproof, dustproof, durable, suitable for outdoor/ indoor, able to adapt to a variety of harsh environments.




Security Street Camera Video Surveillance Outdoor Waterproof Security Camera White Color 15M IR Night Vision.

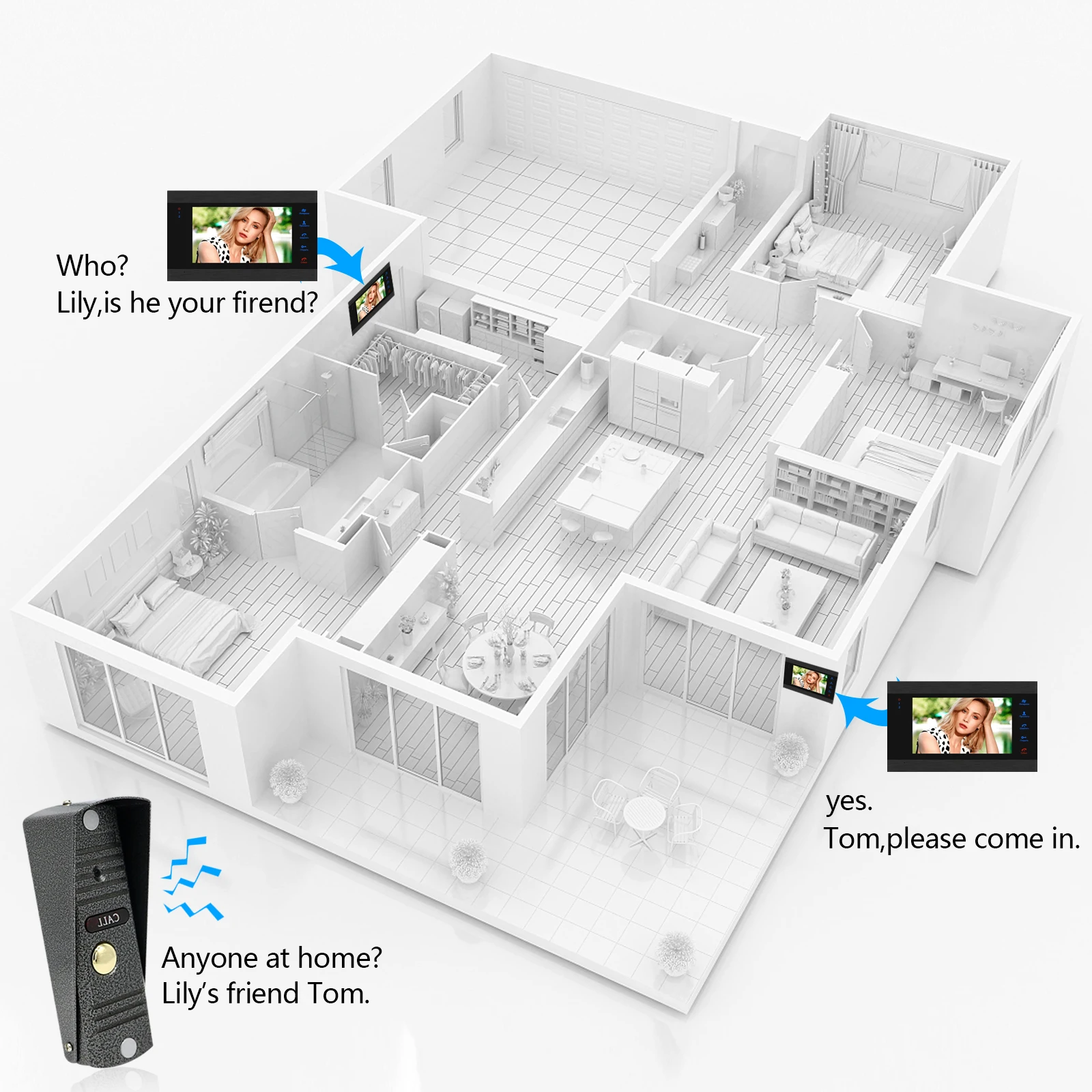

Dual-way Intercom, Call Transfer Among Monitors
This Item Is Hands-free And Available For Dual-
way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.

Adjust Lock Time, Compatible With All Electronic Lock (Not Included)

Support To Connect a Delay Function Electronic Lock To This System. With This Function, You Just Need To Press The Unlock Button On Monitor. Support Adjusting The Time Between Lock And Unlock. So, It Makes Your Home More Safety.

Support Electronic Lock, PIR (Not included)

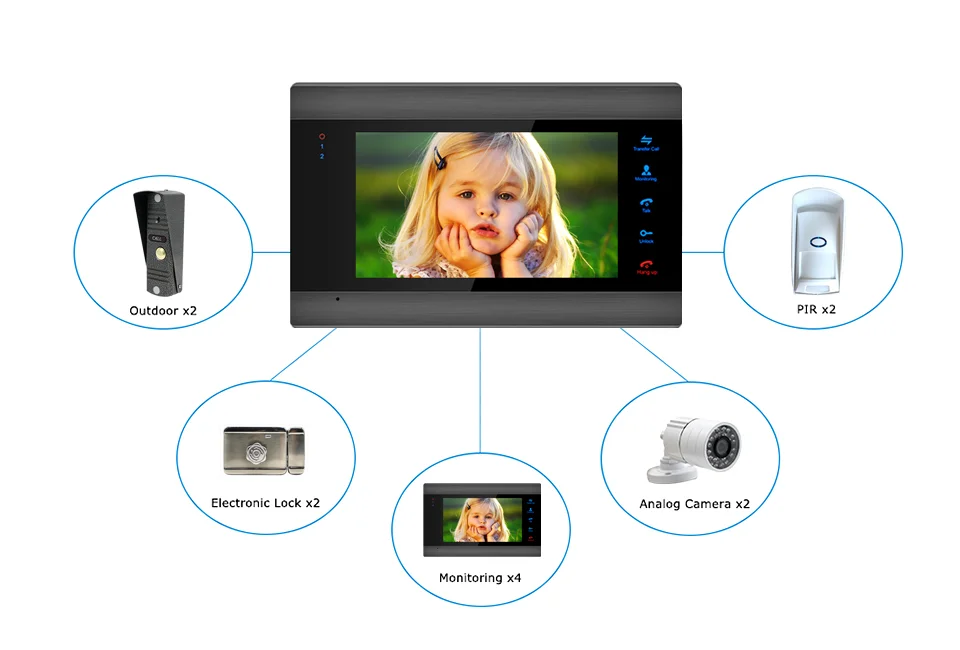

Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera And Electronic Lock. It Can Protect Your Home And Property In All Aspects.

Please Notes:

PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.

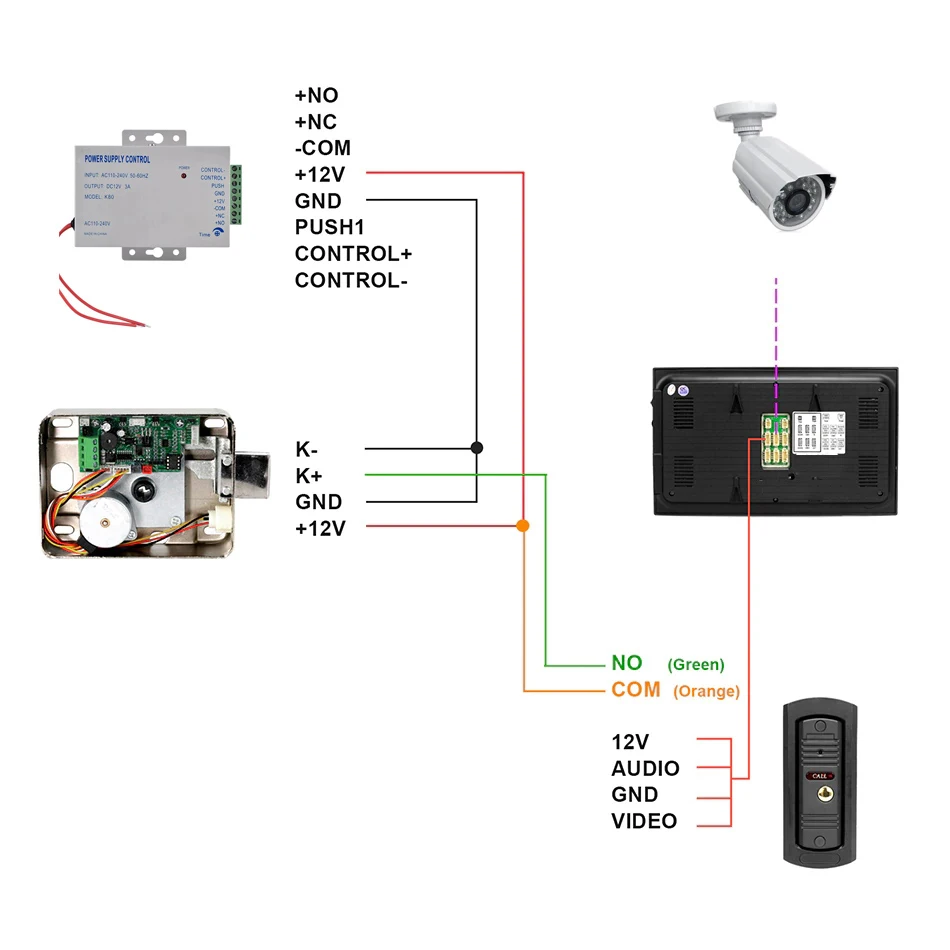

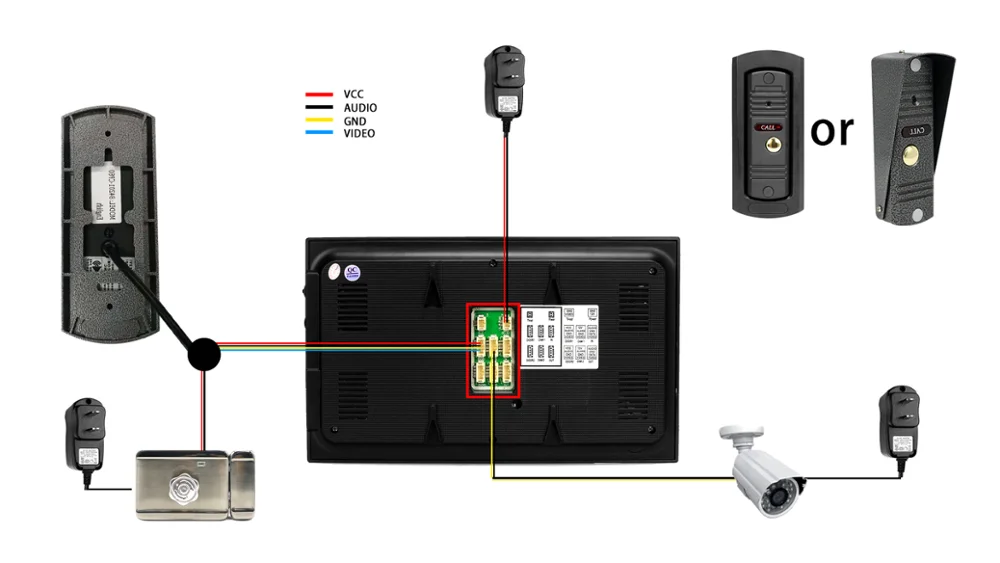

Wiring diagram:


Wiring diagram:

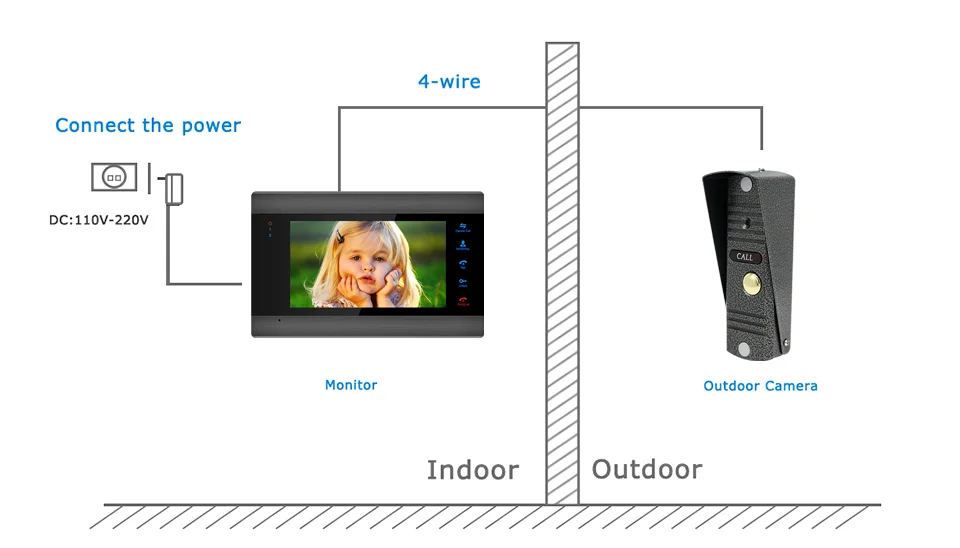

Installation Method and Diagram

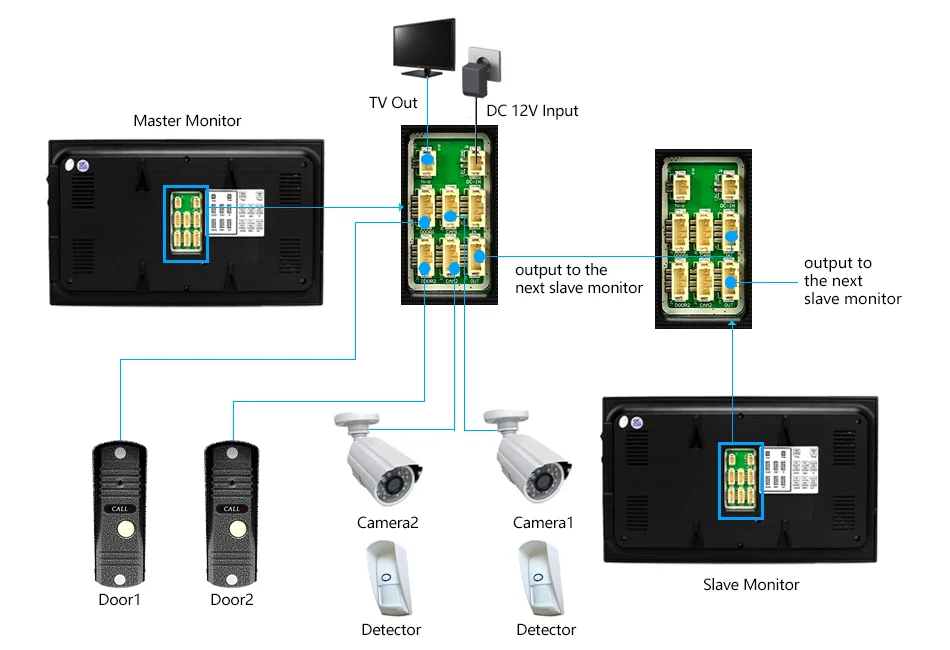

Connection Diagram

PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).

Please Notes:

The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)







Intercom D
Brand Name
anjielosmart
Origin
Mainland China
Material
Metal
Model Number
8420-84706
Type
Intercom System
Display Size
7
resolution
720P
Camera
color
Technology
Analog
Waterproof
Yes
Installation
Wall Mounting
Smart home platform
Other
Plug Type
EU plug ,US plug
Power
110-240
Connection Type
Wired
Access Control
None
Kit Configuration
One to One video doorphone
Connection method
WIRED
Doorbell
Yes
Viewing Angle (°)
92
Answering Mode
Hands-free
Camera Sensor type
CMOS
IP Camera Interface
No
Samrt Home Interface
No
Zone Input
None
Display Screen Type
color
