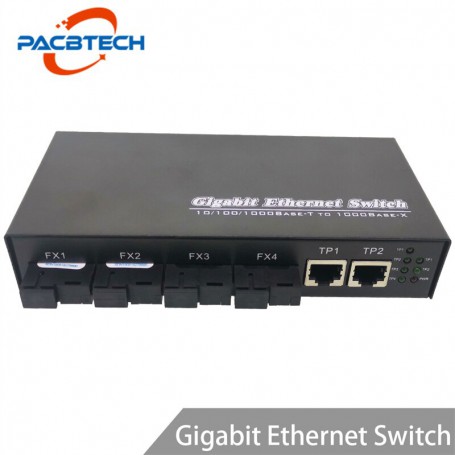

4G2E 1000M Gigabit Ethernet switch Fiber Optical Media Converter Single Mode 4*1.25G Fiber SC 2RJ45 4SC port 2UTP single fiber

Color

EUR€ 61.95 (tax incl.) EUR€ 61.95 (tax excl.)

Tax included

Description
Data sheet

Please note:

Default with 2pcs 1310nm A side Fiber module and 2pcs 1550nmB side, 4pcs 1550nm B Side or 4pcs 1310nm A side can be provided as request.

10/100/1000M Gigabit Ethernet switch Fiber Optical Media Converter Single Mode 1.25G 1000M 2RJ45 4SC port 2UTP single fiber single mode with adapteris an Ethernet Fiber Switch which is specially designed for network monitoring. It

has 2*10/100/1000Mbps Ethernet ports and4*1.25Gbps fiber ports. It adopts Marvell chips to ensure

low power consumption and high stability. It extends the transmission distance of a network from

100m to 120km via copper cables. It can extend the transmission distance; there are also many other

advantages such as isolation protection, good data security, working stability and easy maintenance.

Main Features:

1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX

2.4*1.25Gbps full-duplex fiber ports and 2*1000M Ethernet ports with auto-negotiation function

3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

4.Each port has the complete LED Indicator light

5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

6.Support IEEE802.1d Spanning Tree

7.Support high performance QoS function on each port

8.Support 5-16V voltage input

9.Support IEEE 802.3x flow control and back pressure control

10.Require no configuration and will instantly operate as soon as you power it up

11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications
Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree
Ethernet Port	Connector: RJ45 Data Rate: 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level
Fiber Port	Connector: SC/FC/ST/SFP slot Data Rate: 1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km
Performance	Processing Type: Store and Forward MAC Table Size: 8K Buffer Space: 1Mbit Jumbo Packet: 1518 bytes Back bandwidth: 5.6G Time Delay: ＜150μs
Power	Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V-16V Power Consumption: 2.2W～3.5W
Transmissin Distance	Twisted Pair: 100m (CAT5e, CAT6 cables) Single-mode: 20Km
MTBF	100, 000 hours
Warranty	1 year
Environment	Storage Temperature: -40～70℃ Operating Temperature: -20～75℃ Relative Humidity: 5-90% ( no condensation)
Mechanical Structures	Dimension: 215×107×26mm Weight: 0.45
OEM&ODM	Supportive

Brand Name: PACBTECH
Origin: Mainland China
Model Number: PBT-1000M131020A/B
Size: 94*70.5*26.5cm
Certification: CE
Connector Type: SC/UPC
Item Length: 1m
Fiber Type: Single Mode
Compatible: QSFPTEK,Zyxel
