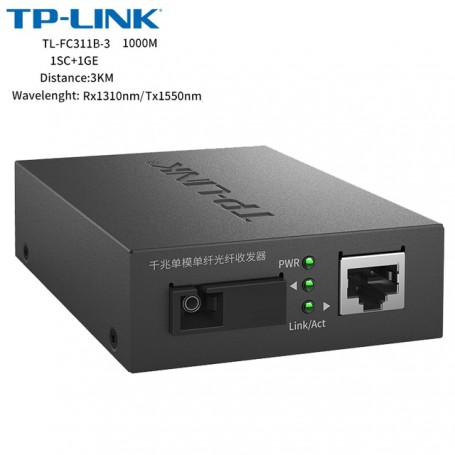

1000M 1SC+1GE TP-LINK TL-FC311A-3 + TL-FC311B-3 fiber transceiver SM single-fiber SC interface fiber optic media converter
1000M 1SC+1GE TP-LINK TL-FC311A-3 + TL-FC311B-3 fiber transceiver SM single-fiber SC interface fiber optic media converter
TP-LINK 1000M TL-FC311A-3 + TL-FC311B-3 fiber transceiver single-mode single-fiber SC interface fiber optic media converter
Features:
Wavelength division multiplexing, single-fiber data transmission and reception, theoretically saves half the cost of double fiber wiring
TL-FC311A-3 and TL-FC311B-3 adopt Wavelength Division Multiplexing (WDM) technology to realize multiple channels on one wavelength optical fiber without mutual interference. Only one fiber is required for data transmission and reception. Compared to the traditional double fiber fiber transceiver, it can theoretically save half the cost of fiber spinning. The TL-FC311A-3 transmits a wavelength of 1550 nm and a wavelength reception of 1310 nm. The TL-FC311B-3 transmits a 1310 nm wavelength and a 1550 nm wavelength reception. TL-FC311A-3 and TL-FC311B-3 are used together.
Plug and play, no need to set
Plug and play port, no need to configure. Simple operation, fast response.
The TL-FC311A-3 and TL-FC311B-3 are used together to fully perform product performance.
Specifications:
Hardware Specifications:
Standards Support: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface:
1 pcs 1.25 Gbps SC fiber interface
1 pcs 100 Mbps / 1000 Mbps adaptive RJ45 port
Transmit Wavelength:
TL-FC311A-3: TX: 1550nm: RX: 1310nm
TL-FC311B-3: TX: 1310nm: RX: 1550nm
Transmission Medium:
Network cable: Super five or more UTP and STP
Fiber: 9 / 125a single mode fiber
Indicator light: optical port and electric port Link / Act, PWR
Power supply: 5VDC / 0.6A
Size: 94.5mm * mm * 27 73mm
Light Parameters:
Average optical power output: -9 ~ -1dBm
Receive sensitivity: -22dBm
Data transfer rate per port: 2 Gbps full duplex
Packet Forwarding Rate: 3 Mpps
Depth MAC Address: 2K
Internal Cache: 1 Mbit
Package includes:
1 PCS TL-FC311A-3 + 1 PCS TL-FC311B-3 (1 Pair)
Product Details:
Networking Tools D
- Brand Name
- Joinwit
- Origin
- Mainland China
- Model Number
- TL-FC311A-3 TL-FC311B-3
- Size
- 94.5mm*73mm*27mm
- Certification
- KC
- Connector Type
- SC/APC
- Item Length
- 1m
- Power Supply
- 5VDC/0.4A
- Fiber Type
- Single Mode
- interface
- 1 1.25Gbps SC 1 100/1000M
- TL-FC311A-3 Wavelenght
- Tx1550nm/Rx1310nm
- TL-FC311B-3 Wavelenght
- Tx1310nm/Rx1550nm
- Indicator light
- Link/Act, PWR
- Working temperature
- -20℃ +60℃
- Storage temperature
- -40℃ +70℃
- Data transfer rate per port
- 2Gbps full duplex
