VEVOR Vertical Diamond Core Drill Stand 205mm 255mm Heavy Duty Engineering Bench Wet/Dry Concrete Drilling Machine 3980W 4450W
zoom_out_map
chevron_left chevron_right

VEVOR Vertical Diamond Core Drill Stand 205mm 255mm Heavy Duty Engineering Bench Wet/Dry Concrete Drilling Machine 3980W 4450W

VEVOR Vertical Diamond Core Drill Stand 205mm 255mm Heavy Duty Engineering Bench Wet/Dry Concrete Drilling Machine 3980W 4450W
  • 205MM-3980W
  • 205MM-3980W-Drill
  • 255MM-4450W-Drill
EUR€ 32.96 (tax incl.) EUR€ 32.96 (tax excl.)
Tax included
check In-stock
Product Description
Diamond Core Drill Rig
Pure Copper Motor & 580/750RPM & Rustproof
A diamond drilling machine is a tool that drills on reinforced concrete, masonry, rock, ceramic and refractory. In consideration of your security, the core drill is fitted with a personal protection switch. It is an essential tool for performing heavy-duty industrial and steel fabrication work.

  • 8/10 inch Max Drilling Diameter

  • Durable Construction

  • Thoughtful Security Design

  • Ergonomic Handle & Stable Base

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
3980W/4450W Powerful Motor
The 3980W/4450W robust motor easily loosens the reinforced concrete wall with a rotary speed of 750RPM/580RPM.(Included 4.25" drill bit can satisfy your daily needs.)
Heavy-duty Material
For wet drilling, it has a steel forged output shaft and a pure copper water inlet, which are durable and rustproof for long service life.
Necessary Protection Switch
The drill can give you excellent protection from overload and leakage with the personal protection switch.
Easy-to-operate Handle
The grip adopts an ergonomic design. The lifting process is smooth and labor-saving with our large unique handle.
Humanization Design
The aluminum alloy rail makes sure the rigidity of the drill press, and the large base make the machine easy to operate.
Versatile Usage
The diamond core drill rig plays a vitally important role in installing air conditioners, pipes, stair railings, highways, etc.
3980W Diamond Core Drill Rig

  • Rated input power: 3980W

  • Rated voltage: 110V(US)/220V(EU/AU)

  • Rated frequency: 60/50Hz

  • The largest drilling capacity: 8 inches/205 mm

  • No-load speed: 0-750 r/min

  • Spindle thread size: 1-1/4''

  • Integrated FI (residual current circuit breaker): 10mA

  • Drilling distance: approx. 19 inches/483 mm

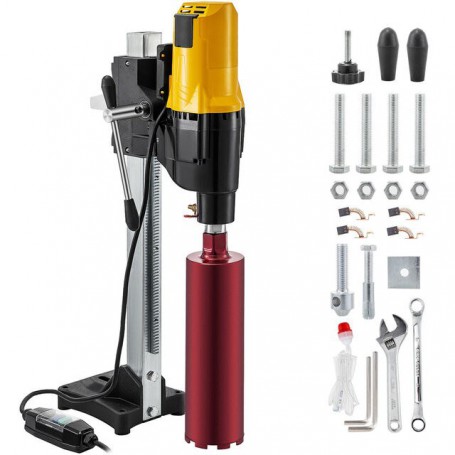

Package Content

  • 1 x 3980W Rock Core Drill Machine

  • Screwdrivers

  • User's Manual

3980W Diamond Core Drill Rig with Drill

  • Rated input power: 3980W

  • Rated voltage: 110V(US)/220V(EU/AU)

  • Rated frequency: 60/50Hz

  • The largest drilling capacity: 8 inches/205 mm

  • No-load speed: 750 U/min

  • Arbor size: 1¼"UNC

  • Drill bit: 108 mm / 4.25 inches

Package Content

  • 1 x 3980W Rock Core Drill Machine

  • 1 x Diamond bit

  • 1 x Box spanner

  • 1 x Monkey wrench

  • 1 x Air tube

  • 4 x Carbon brushes

  • 5 x Screws

  • 1 x English manual

4450W Diamond Core Drill Rig

  • Rated input power: 4450W

  • Rated voltage: 110V(US)/220V(EU/AU)

  • Rated frequency: 60/50Hz

  • The largest drilling capacity: 10 inches/255 mm

  • No-load speed: 0-580 r/min

  • Spindle thread size: 1-1/4''

  • Integrated FI (residual current circuit breaker): 10mA

  • Water hose length: approx. 13ft, inside Ø 0.4 inch

  • Drilling distance: approx. 19 inches/457 mm

Package Content

  • 1 X 4450W Rock Core Drill Machine

  • Screwdrivers

  • User's Manual

4450W Diamond Core Drill Rig with Drill

  • Rated input power: 4450W

  • Rated voltage: 110V(US)/220V(EU/AU)

  • Rated frequency: 60/50Hz

  • Max Drilling Diameter: 255 mm / 10 inches

  • Drill Bit: 108 mm / 4.25 inches

  • Speed: 580 r/min

  • Integrated FI (residual current circuit breaker): 10mA

  • Water hose length: approx. 13ft, inside Ø 0.03inch

  • Drilling distance: approx. 48 cm / 19 inches

Package Content

  • 1 X 4450W Rock Core Drill Machine

  • 1 x Diamond Bit

  • 1 x Box Spanner

  • 1 x Monkey Wrench

  • 1 x Accessory Set

  • 1 x English Manual

Features & Details

  • 8/10 inch Max Drilling Diameter: Our core drilling machine generates extreme power because of its 3980W/4450W copper motor. Maximum Speed: 750RPM/580RPM. Maximum Coring Diameter: 8"/205 mm/10"/255 mm.(More importantly, the 4.25"/108 mm core bit in the picture is included.)

  • Durable Construction: As the machine will work upside down, so water would unavoidable flow on to the drill machine. In this case, our drilling rig has a rustproof steel forged output shaft and waterproof copper water inlet for a long-lasting water supply.

  • Thoughtful Security Design: We also provide overload protection system and an upgraded cooling system. They are designed for avoiding burn-in and prolonging the service lifespan of the drilling press machine.

  • Ergonomic Handle & Stable Base: It features an ergonomic handle and large base support for effortless drilling or getting oblique holes. The aluminum guide rail makes the drill rig's movement more smooth and accurate.

  • Wide Application: The wet diamond core drilling rig can be widely used in drilling reinforced concrete, red brick, marble, and other materials. It is perfect for installing air conditioners, pipes, stair railings, and repairing highways, etc.


Drill Machine B
Brand Name
VEVOR
Origin
Mainland China
Model Number
Rock Core Drill Machine
Application
installing air conditioners, pipes, stair railings, highways
Certification
CE
Weight
24.25Kg
Type 1
diamond drill core
Type 2
brick diamond core drill machine
Power Source
AC
Usage
Commercial Manufacture
Frequency
50/60Hz
Rated Voltage
220V
Drill Type
Core Drill
Max. Drilling Diameter
205 mm, 255 mm
Rated Input Power
3980W, 4450W
Rated Frequency
50-60HZ
The Largest Drilling Capacity
8 inch, 10 inch(205 mm, 255 mm)
No-load Speed
750 r/min, 580 r/min
Integrated FI
10mA
255/205 mm Drill Bit
108 mm / 4.25 inch
Drilling distance
approx 483 mm, 457 mm
Spindle thread size
1-1/4''
Corded/ Cordless
Corded
