1880W 2180W Handheld Diamond Core Drill Rig Concrete 110mm 130mm 160mm 180mm Wet/Dry Electric Stepless Speed Drilling Tool

Color

EUR€ 10.95 (tax incl.) EUR€ 10.95 (tax excl.)

Tax included

Description
Data sheet

Product Description

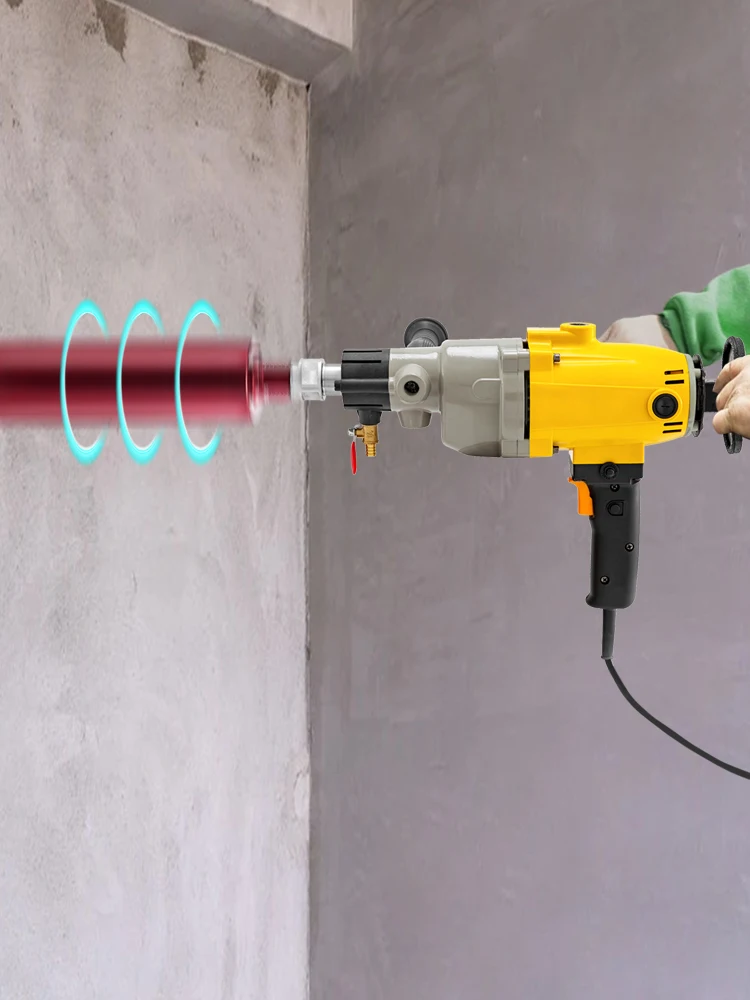

Diamond Core Drill Rig

Stepless Speed & 1880/2180W & Carrying Case

The handheld diamond core drill rig is designed for dry or wet drilling. This drill can be used on brick, stone, reinforced concrete, ceramic, and fireproof materials. It features stepless speed change for satisfying various working demands.

110/130/160/180mm Max Drilling Diameter
Durable Steel Output Shaft & Copper Inlet
Over-current Protection
Comfortable Shoulder Rest & Handle

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Key Features

1880/2180W Powerful Motor

The power of the concrete core drill is solid and stable. It can variable-speed drill without shock, dust, and vibration. The maximum speed is 980r/min, 1600r/min, 1700 r/min.

Heavy-duty Material

It has a steel forged output shaft and a pure copper water inlet, which are durable and rustproof for long service life.

Necessary Protection Switch

The drill can give you excellent protection from overload and leakage with the personal protection system.

Humanized Shoulder Rest & Case

The unique shoulder rest is designed for comfortable handling. Blow-molded carrying case included for easy storing, classification, and convenient carrying.

Easy-to-operate Design

Compact extra grip design brings maximum power thrust. In addition, stepless speed switch is helpful to apply to different situations with corresponding speed.

Versatile Usage

The diamond core drill rig plays a vitally important role in installing air conditioners, pipes, stair railings, highways, etc.

110MM Diamond Core Drilling Machine

Rated input power: 1880W
Rated voltage: 110V(US)/220V(EU/AU)
Rated frequency: 60/50Hz
Arbor size: 1-1/4" UNC
Drilling diameter (max): 4" / 110 mm
Rotation Speed: 1700 r/min
Package Dimensions: 520 x 530 x 400 mm / 20" x 12" x 16"
Gross Weight: 6 kg / 13.2 lbs
Drilling: Wet or Dry drilling

Package Content

Rock Core Drill Machine
Water Hose
Portable Plastic Tool Box

130MM Diamond Core Drilling Machine

Rated input power: 2180W
Rated voltage: 110V(US)/220V(EU/AU)
Rated frequency: 60/50Hz
Arbor size: 1-1/4" UNC
Drilling diameter (max): 130 mm
No-load speed: 0-980r/min
Lift: 13M
Drilling: Wet or Dry drilling

Package Content

Rock Core Drill Machine
Water Pipes
Plastic Carrying Case

160MM Diamond Core Drilling Machine

Rated input power: 2180W
Rated voltage: 110V(US)/220V(EU/AU)
Rated frequency: 60/50Hz
Arbor size: 1-1/4" UNC
Drilling diameter (max): 6" / 160 mm
No-load speed: 1600 U/min
Dimensions: 21.7" x 12.6" x 17.7"
Weight: 20.7lbs
Drilling: Wet or Dry drilling

Package Content

Rock Core Drill Machine
Screwdrivers
User's Manual

180MM Diamond Core Drilling Machine

Rated input power: 2180W
Rated voltage: 110V(US)/220V(EU/AU)
Rated frequency: 60/50Hz
Arbor size: 1-1/4" UNC
Drilling diameter (max): 7" / 180 mm
No-load speed: 0-1600r/min
Lift: 10M
Drilling: Wet drilling

Package Content

Rock Core Drill Machine
Water Pipes
Plastic Carrying Case

Features & Details

110/130/160/180MM Max Drilling Diameter: 1880/2180W powerful motor of the handheld core drill rig is designed for wet drilling in reinforced concrete, stone, asphalt, marble, ceramic, walls, floors, and more. With a 110/130/160/180mm max drilling diameter and stepless speed, you can drill with less effort.
Durable Steel Output Shaft & Copper Inlet: As the machine will work upside down, water will unavoidably flow on to the drill machine. In this case, our drilling rig has a rustproof steel forged output shaft and waterproof copper water inlet for a long-lasting water supply.
Over-current Protection: We also provide an overload protection system and an upgraded cooling system. They are designed for avoiding burn-in and prolonging the service lifespan of the drilling press machine.
Comfortable Shoulder Rest & Handle: The upgraded shoulder rest is designed to save your energy. The slip-proof rubber handle greatly enhances friction and reduces vibration to completely control the hammer with comfort. Besides, tools are well stored and sorted in a compact case.
Wide Range of Application: The wet diamond core drilling rig can be widely used in drilling reinforced concrete, red brick, marble, and other materials. It is perfect for installing air conditioners, pipes, stair railings, repairing highways, etc.

Brand Name: VEVOR
Origin: Mainland China
Model Number: ZIZ-ST-180
Type: Core Drill
Application: reinforced concrete, red brick, marble
Certification: CE
Power Source: AC
Usage: Renovation Team
Features 1: Overload Protection Switch
Features 2: Pure Copper Inlet
Power Supply: 110V(US) / 220V(EU/AU) ±15%, 50/60Hz
Frequency: 50/60Hz
Rated Power: 2180W, 1880W
Rated Voltage: 220V
Drill Type: Core Drill
Max. Drilling Diameter: 110mm, 130mm, 160mm, 180mm
Rotate Speed: 1600 RPM, 1700 RPM, 980RPM
Drilling Diameter: 4" / 110 mm, 130 mm, 6" / 160 mm, 7" / 180 mm
Spindle Thread: 1-1/4" UNC
Lift(180MM-2180W): 10M
Lift(130MM): 13M
